Stage and Controller Compatibility

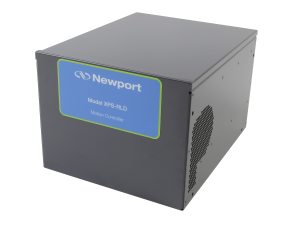

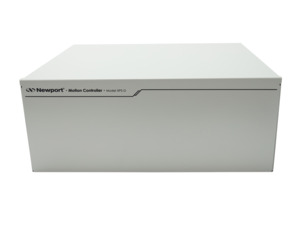

The following table lists all Newport positioners and the compatible Newport motion controllers. Most stages feature ESP technology that provides true plug and play compatibility, wherein the Newport controller recognizes the connected stage and automatically uploads the stage operating parameters. This eliminates the risk for incorrect setting of parameters. Listed also is the maximum power consumption for each stage when used at maximum speed, with full load and at maximum acceleration. In order to be able to operate all stages simultaneously, and at these values, the total power consumption of all stages connected to the same controller (same power supply for SMC100) must be less than the power of the controller's power supply: 750 W for XPS-D, 300 W for the XPS-RLD, 150 W for ESP302 and 80 W for SMC100.
Dedicated controllers like CONEX, FCL, Agilis, iPico and NanoPZ are not included in this table, but additional information is available for these at their respective product pages.
For Controller GUI's, firmware updates, software drivers, programming examples and user manuals, please visit download.newport.com
| Linear Stage Series | Maximum Power Consumption (W) |
XPS-D and XPS-RLD Driver Module |
Legacy XPS-Q/XPS-RL Driver Module | ESP302 Compatibility | Legacy ESP301 Compatibility | SMC100CC Compatibility |
SMC100PP Compatibility |
|---|---|---|---|---|---|---|---|
| GTS | 25 | ||||||
| IDL165-LM | 160 | ||||||
| IDL225-LM to IDL560-LM | |||||||
| ILS-CC | 70 | ||||||
| ILS-CCL | 30 | ||||||
| ILS-HA | 60 | ||||||
| ILS-LM-S3 | 80 | ||||||
| ILS-BPP | 40 | ||||||
| IMS-CC, IMS-CCHA | 170 | ||||||
| IMS-LM-S | 220 | ||||||
| IMS-BPP | 40 | ||||||
| MFA-CC, MFA-CCV6 | 10 | ||||||
| MFA-PPD | 10 | ||||||
| MLT | |||||||
| MTN-CC | 170 | ||||||
| MTN-BLHS | 170 | ||||||
| MTN-PP | 75 | ||||||
| MTN-PPV6 | 10 | ||||||
| ONE-XY3 | |||||||
| UTS-CC | 40 | ||||||
| UTS-PP | 20 | 2 | Reduced2 | ||||
| UTS-PPV6 | 10 | 2 | Reduced1,2 | ||||
| VP-25XA | 30 | ||||||
| VP-25XL3 | 30 | ||||||
| XML-S | 100 | ||||||
| XMS-S | 70 |
| Vertical Stage Series | Maximum Power Consumption (W) |
XPS-D and XPS-RLD Driver Module |
Legacy XPS-Q/XPS-RL Driver Module | ESP302 Compatibility | Legacy ESP301 Compatibility | SMC100CC Compatibility |
SMC100PP Compatibility |
|---|---|---|---|---|---|---|---|
| GTS-V | |||||||
| IDL280-Z20 | 50 | ||||||
| IMS-V | 80 | ||||||
| UZS80CC | 40 | ||||||
| UZS80PP | 20 | ||||||
| VP-5ZA | 30 | ||||||
| XMS-V |
| Rotation Stage Series | Maximum Power Consumption (W) |
XPS-D and XPS-RLD Driver Module |
Legacy XPS-Q/XPS-RL Driver Module | ESP302 Compatibility | Legacy ESP301 Compatibility | SMC100CC Compatibility |
SMC100PP Compatibility |
|---|---|---|---|---|---|---|---|
| PR50CC, SR50CC | 10 | ||||||
| PR50PP, SR50PP | 10 | Reduced1 | |||||
| RGA150 | |||||||
| RGV100-S | 100 | ||||||
| RGV160BL | |||||||
| RVS80CC | 40 | ||||||
| RV120CC to RV350CC | 130 | ||||||
| RV120CCHL | 20 | ||||||
| RV160CCHL to RV350CCHL | 130 | ||||||
| RV120HAHL | 100 | ||||||
| RV120HAT to RV350HAT | 170 | ||||||
| RV160HAHLT to RV350HAHLT | 170 | ||||||
| RVS80PP | 20 | 2 | Reduced2 | ||||
| RV120PE | 20 | ||||||
| RV120BPP to RV350BPP | 70 | ||||||
| RV120BPE to RV350BPE | 70 | ||||||
| RV120BPEV6 | 70 | ||||||
| URB100CC | 30 | ||||||
| URS50BCC | 10 | ||||||
| URS75BCC to URS150BCC | 40 | ||||||
| URS50CPP | 10 | Reduced1,2 | |||||
| URS75BPP to URS150BPP | 20 | 2 | Reduced2 | ||||
| URS50BPPV6 | 10 | Reduced1 | |||||
| URS75BPPV6 | 10 | 2 | Reduced1,2 | ||||
| ZVR-PC (Theta-axis) | 40 | ||||||
| ZVR-PC (Z-axis) | 20 | 2 | Reduced2 | ||||
| ZVR-PP (Theta-axis) | 20 | 2 | Reduced2 | ||||
| ZVR-PP (Z-axis) | 20 | 2 | Reduced2 |
| Goniometric Stage Series | Maximum Power Consumption (W) |
XPS-D and XPS-RLD Driver Module |
Legacy XPS-Q/XPS-RL Driver Module | ESP302 Compatibility | Legacy ESP301 Compatibility | SMC100CC Compatibility |
SMC100PP Compatibility |
|---|---|---|---|---|---|---|---|
| BGS50CC | 10 | ||||||
| BGS80CC | 40 | ||||||
| BGM120CC to BGM200CC | 60 | ||||||
| BGS50PP | 10 | ||||||
| BGS80PP | 20 | 2 | Reduced2 | ||||
| BGM120BPP to BGM200BPP | 60 | ||||||
| BGM120BPE to BGM200BPE | 10 | Reduced1 | |||||
| BGM120PEBV6, BGM160PEBV6 | 10 | Reduced1 |
| Motorized Actuator Series | Maximum Power Consumption (W) |
XPS-D and XPS-RLD Driver Module |
Legacy XPS-Q/XPS-RL Driver Module | ESP302 Compatibility | Legacy ESP301 Compatibility | SMC100CC Compatibility |
SMC100PP Compatibility |
|---|---|---|---|---|---|---|---|
| LTA-HL, LTA-HS | 10 | ||||||
| LTAHLPPV6 | 10 | Reduced1 | |||||
| LTAHSPPV6 | 10 | Reduced1 | |||||
| NPA-D | 10 | ||||||
| TRACC | 10 | ||||||
| TRAPPD, TRAPPV6 | 10 | ||||||
| TRBCC | 10 | ||||||
| TRBPP | 10 | Reduced1 | Reduced1 | ||||
| VP-25AA | 30 |
Compatibility Footnotes
- Speed is reduced by a factor of 2.5 from the speed specified in the stage data sheet (ie, 40% of rated speed).
- MIM is equal to 1/20 of full step (contact technical support team for more information on stage specific full step).
- E5820A adaptor required when used with XPS-D/XPS-RLD.
- A cable kit is required to pair with the driver module. Check the compatibility in XPS Series Motion Controller to Stage Cable Kits family.
- Compatible with XPS-D only.
- When used with XPS-RLD, plug XPS-DRV01 to slots other than slot 1.
- When used with XPS-D or XPS-RLD, plug XPS-DRVP1 into slots other than slot 1.
General Notes
- For FC series intelligent stepper motor stages/controllers, see Intelligent Stepper Motor Linear Stages and Intelligent Stepper Motor Rotary Stages.
- For Picomotor controller products, see Intelligent Picomotor™ (iPico™) Modules.
- For NanoPZ actuators and controllers, see NanoPZ Piezo Motor Motion Controller.
- For Agilis piezo-motor products, see Agilis™ Piezo Motor Driven Linear Stages, see Agilis™ Piezo Motor Driven Rotation Stages, see Agilis™ Piezo Optical Mounts, see Agilis™ Piezo Motion Controllers.
*When stages are not driven synchronously, consider the maximum power consumption only for the stage with the highest power consumption and use a 70% reduced RMS power for all other stages. Applies only for stages with this footnote. When stages are driven synchronously, consider the maximum power consumption for all stages.
If higher speeds are needed for any of the linear motor driven stages, please contact Tech Support to select the appropriate driver.
