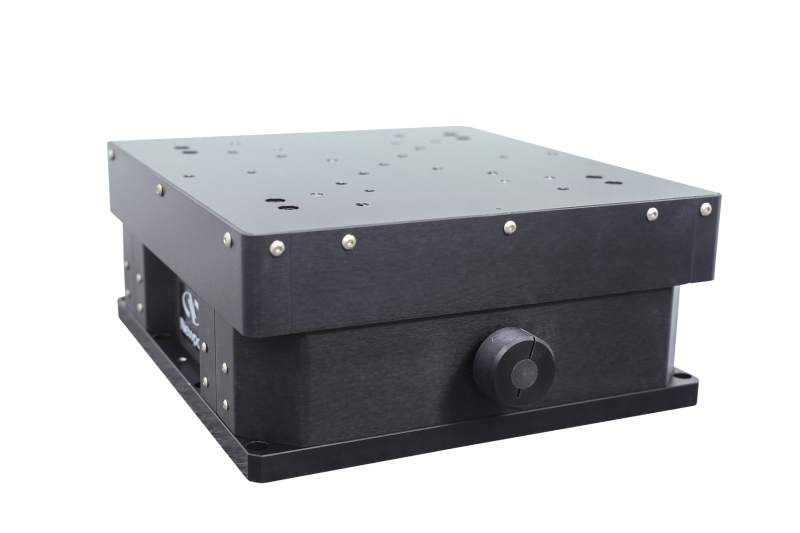

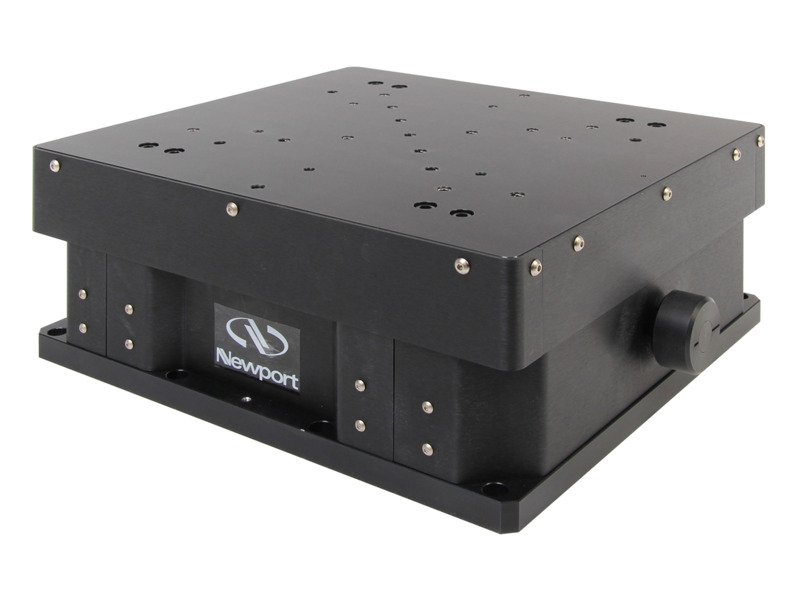

The IDL-V series was developed for industrial applications that require a high load capacity vertical axis to carry the work. It features sub-micron minimum incremental motion, smooth motion and stiff construction.
Built for industrial applications
Up to 500 N load capacity with unobstructed access to the payload from any direction
Additional CAD file downloads are not available for this product.
idl-v-industrial-vertical-stages - Drawings
Additional drawings are not available for this product.
Specifications
Travel Range
20 mm
Minimum Incremental Motion
0.1 µm
Maximum Speed
5 mm/s
Centered Load Capacity
500 N
Accuracy, Guaranteed
±2 µm (over full travel)
Bi-directional Repeatability, Guaranteed
±0.6 µm
Uni-directional Repeatability, Guaranteed
±0.1 µm
Drive Mechanism
Precision ball screw
Drive Screw Pitch
2 mm
Bearings
Double row recirculating ball bearings
Reduction Gear
Belt gear 1:4 + Wedge 1:2
Base Material
Anodized Alumnimum
Feedback
Screw-mounted rotary encoder, 5,000 cts/rev, index pulse
Encoder Resolution
50 nm
Limit Switches
Optical
Origin
Optical, at center of travel, including mechanical zero signal
Origin Repeatability
±0.5 µm
Connectors
DB25
Pitch, Guaranteed
±50 µrad
Roll, Guaranteed
±50 µrad
Cable Length
3 m
Weight
32 lbs. (14.5 kg)
MTBF
20,000 h (25% load, 30% duty cycle)
RoHS
Compliant
Features

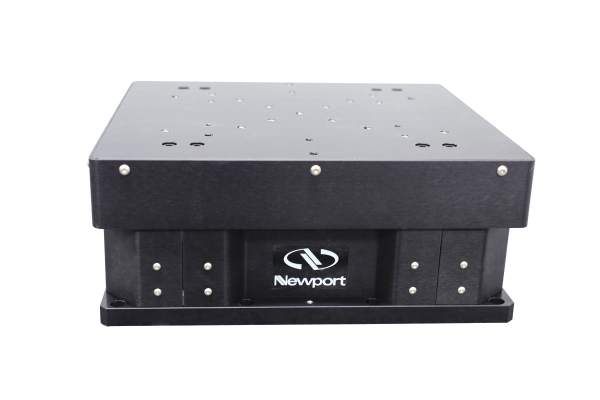

Industrial-Level Build and Performance

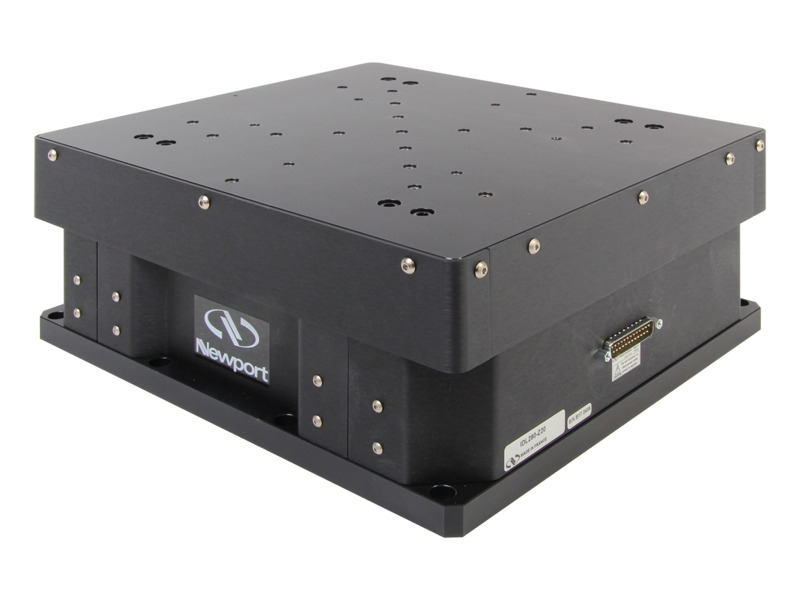

With a focus on high throughput, heavy load capacity, and extreme durability, the IDL-V vertical stage has been designed for the most rigorous demands of precision industrial laser microprocessing. For other travel ranges or sizes, please contact Newport.
Matched to IDL Linear Translation Stages

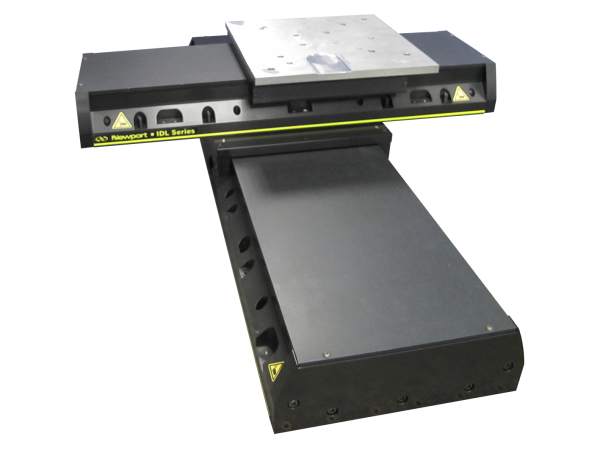

Based on a customer-proven and modular wedge design, the IDL280-Z20 provides sub-micron MIM, smooth motion and stiff construction for use with high dynamic performance XY systems. In particular, it is matched to the IDL280 industrial-grade linear motor translation stages, making it easy to securely construct multi-axis systems, and provides unobstructed access to the payload from any side.

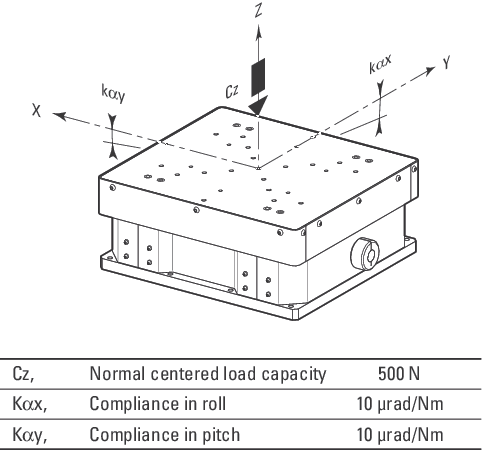

Load Diagram
Compatible motion controllers for the IDL280-Z20 vertical stage are:
