Compare Model Drawings, CAD & Specs Availability Price
Industrial Linear Motor Stage, 100 mm Travel, 450 N Load, 165 mm Wide
IDL165-100LM Industrial Linear Motor Stage, 100 mm Travel, 450 N Load, 165 mm Wide
Industrial Linear Motor Stage, 200 mm Travel, 450 N Load, 165 mm Wide
IDL165-200LM Industrial Linear Motor Stage, 200 mm Travel, 450 N Load, 165 mm Wide
Industrial Linear Motor Stage, 300 mm Travel, 450 N Load, 165 mm Wide
IDL165-300LM Industrial Linear Motor Stage, 300 mm Travel, 450 N Load, 165 mm Wide
Industrial Linear Motor Stage, 1000 mm Travel, 1000 N Load, 225 mm Wide
IDL225-1000LM Industrial Linear Motor Stage, 1000 mm Travel, 1000 N Load, 225 mm Wide
Industrial Linear Motor Stage, 1200 mm Travel, 1000 N Load, 225 mm Wide
6 Weeks
IDL225-1200LM Industrial Linear Motor Stage, 1200 mm Travel, 1000 N Load, 225 mm Wide
6 Weeks
Industrial Linear Motor Stage, 200 mm Travel, 1000 N Load, 225 mm Wide
IDL225-200LM Industrial Linear Motor Stage, 200 mm Travel, 1000 N Load, 225 mm Wide
Industrial Linear Motor Stage, 300 mm Travel, 1000 N Load, 225 mm Wide
In Stock
IDL225-300LM Industrial Linear Motor Stage, 300 mm Travel, 1000 N Load, 225 mm Wide
In Stock
Industrial Linear Motor Stage, 400 mm Travel, 1000 N Load, 225 mm Wide
6 Weeks
IDL225-400LM Industrial Linear Motor Stage, 400 mm Travel, 1000 N Load, 225 mm Wide
6 Weeks
Industrial Linear Motor Stage, 500 mm Travel, 1000 N Load, 225 mm Wide
IDL225-500LM Industrial Linear Motor Stage, 500 mm Travel, 1000 N Load, 225 mm Wide
Industrial Linear Motor Stage, 600 mm Travel, 1000 N Load, 225 mm Wide
In Stock
IDL225-600LM Industrial Linear Motor Stage, 600 mm Travel, 1000 N Load, 225 mm Wide
In Stock
Industrial Linear Motor Stage, 1000 mm Travel, 1500 N Load, 280 mm Wide
IDL280-1000LM Industrial Linear Motor Stage, 1000 mm Travel, 1500 N Load, 280 mm Wide
Industrial Linear Motor Stage, 1200 mm Travel, 1500 N Load, 280 mm Wide
IDL280-1200LM Industrial Linear Motor Stage, 1200 mm Travel, 1500 N Load, 280 mm Wide
Industrial Linear Motor Stage, 300 mm Travel, 1500 N Load, 280 mm Wide
In Stock
IDL280-300LM Industrial Linear Motor Stage, 300 mm Travel, 1500 N Load, 280 mm Wide
In Stock
Industrial Linear Motor Stage, 400 mm Travel, 1500 N Load, 280 mm Wide
6 Weeks
IDL280-400LM Industrial Linear Motor Stage, 400 mm Travel, 1500 N Load, 280 mm Wide
6 Weeks
Industrial Linear Motor Stage, 500 mm Travel, 1500 N Load, 280 mm Wide
IDL280-500LM Industrial Linear Motor Stage, 500 mm Travel, 1500 N Load, 280 mm Wide
Industrial Linear Motor Stage, 600 mm Travel, 1500 N Load, 280 mm Wide
In Stock
IDL280-600LM Industrial Linear Motor Stage, 600 mm Travel, 1500 N Load, 280 mm Wide
In Stock
Industrial Linear Motor Stage, 700 mm Travel, 1500 N Load, 280 mm Wide
IDL280-700LM Industrial Linear Motor Stage, 700 mm Travel, 1500 N Load, 280 mm Wide
long-travel industrial linear motor stage model idl560-600
Industrial Linear Motor Stage, 1000 mm Travel, 2000 N Load, 560 mm Wide
IDL560-1000LM Industrial Linear Motor Stage, 1000 mm Travel, 2000 N Load, 560 mm Wide
long-travel industrial linear motor stage model idl560-600
Industrial Linear Motor Stage, 450 mm Travel, 2000 N Load, 560 mm Wide
6 Weeks
IDL560-450LM Industrial Linear Motor Stage, 450 mm Travel, 2000 N Load, 560 mm Wide
6 Weeks
long-travel industrial linear motor stage model idl560-600
Industrial Linear Motor Stage, 600 mm Travel, 2000 N Load, 560 mm Wide
6 Weeks
IDL560-600LM Industrial Linear Motor Stage, 600 mm Travel, 2000 N Load, 560 mm Wide
6 Weeks
long-travel industrial linear motor stage model idl560-600
Industrial Linear Motor Stage, 750 mm Travel, 2000 N Load, 560 mm Wide
IDL560-750LM Industrial Linear Motor Stage, 750 mm Travel, 2000 N Load, 560 mm Wide

Specifications

  • Motorized Axes
    X
  • Maximum Speed
    2000 mm/s
  • Minimum Incremental Motion
    0.050 µm
  • Bi-directional Repeatability, Typical
    ±0.10 µm
  • Base Material
    Aluminum
  • Bearings
    Recirculating caged ball bearings
  • Drive Mechanism
    Ironless linear motor
  • Feedback
    Linear steel scale
  • Encoder Resolution
    1 Vpp 20 µm pitch
  • Limit Switches
    Optical, Positive and Negative End-Of-Run -5 V
  • Origin
    Optical, centered
  • Connector Type
    DB15 Male (2) and DB9W4
  • Thread Type
    M6
  • MTBF
    20,000 h (25% load, 30% duty cycle)
  • RoHS
    Compliant

Features

Industrial-Level Build and Performance

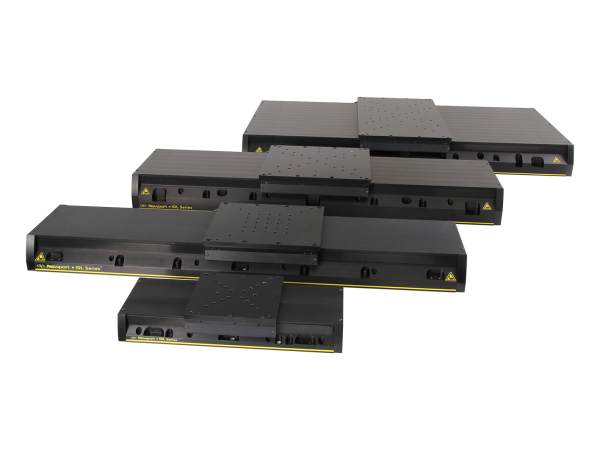

With a focus on high throughput, heavy load capacity, and extreme durability, the IDL stages have been designed for the most rigorous demands of precision industrial laser microprocessing. Industrial grade hard covers, wear-resistant sidebands, air purge, and directed debris path make the IDL suitable for industrial environments.

Platform Sizes, Travel Ranges & Load Capacities for Popular Industrial Applications

The various sizes of width, travel range and load capacities of the IDL family are available to fit numerous applications. Given the variety, these stages are directly stackable with each other, minimizing design and assembly time.

Compatible With Industrial Controllers

The IDL linear stage is designed to work with industrial controllers such as the XPS Universal Motion Controller and other third party controllers.

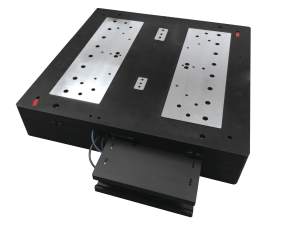

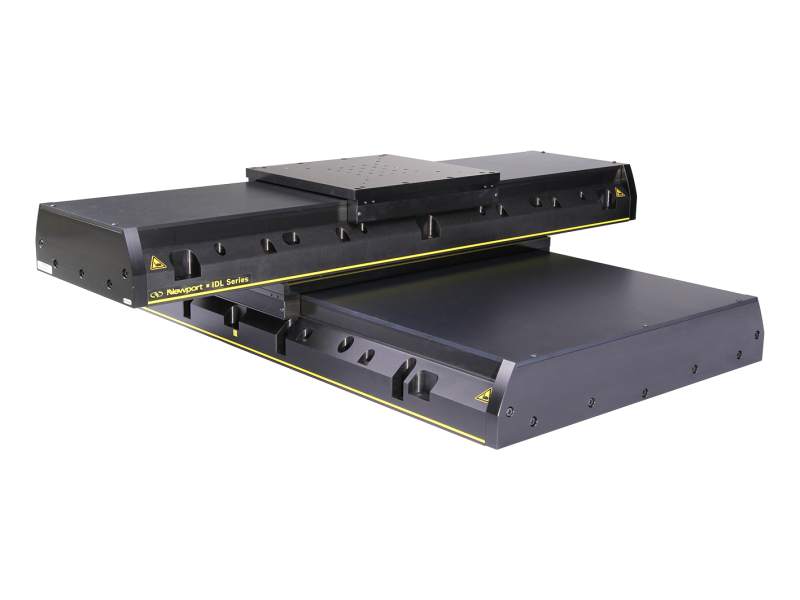

Easy Direct Mounting of XY Stack Configurations

IDL stages feature both imperial and metric mounting hole patterns allowing for flexible mounting.

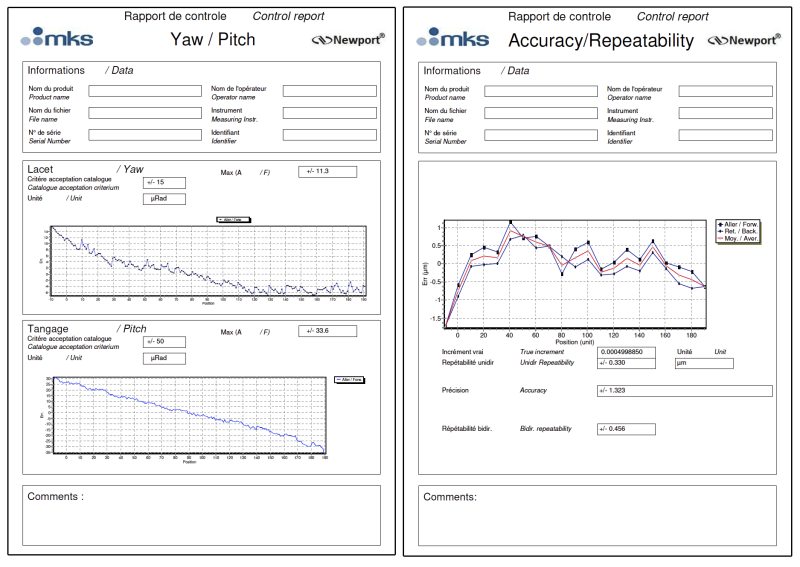

Metrology Report Included at No Additional Cost

Newport guarantees specification values which are measured and recorded following ASME B5.57 and ISO 230-2 standards. The typical performance values are two times better than the guaranteed specifications.

Reliable Stage Delivery

Just like any other Newport product, the IDL series can be ordered both from stock or under a blanket schedule. This ensures that OEMs meet their commitments.
