Compare Model Drawings, CAD & Specs Availability Price

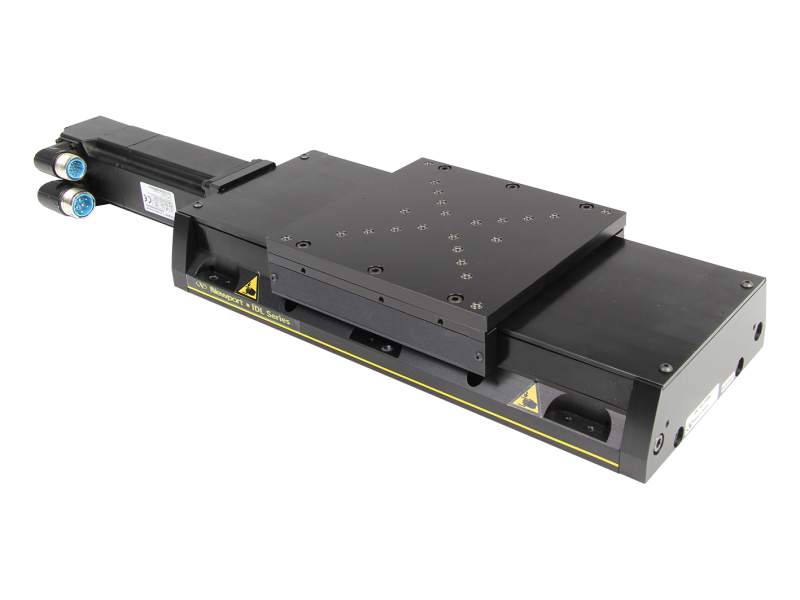

mid-travel industrial linear stage model MC-IDL165-150BLBK
Motorized Linear Stage, Industrial, Brushless DC, 150 mm Travel, 165 mm
mid-travel industrial linear stage model MC-IDL165-150BLBK
Motorized Linear Stage, Industrial, Brushless DC, 150 mm Travel, 165 mm, Brake
7 Weeks
7 Weeks
mid-travel industrial linear stage model MC-IDL165-150BLBK
Motorized Linear Stage, Industrial, Brushless DC, 300 mm Travel, 165 mm
mid-travel industrial linear stage model MC-IDL165-150BLBK
Motorized Linear Stage, Industrial, Brushless DC, 300 mm Travel, 165 mm, Brake

Specifications

Features

Industrial-Level Build and Performance

The IDL-BL line is designed with side-bands, a hard cover and air purge, which equates to IP50 level dust protection. IDL-BL stages are ideal for industrial use where the environment is not well-controlled. The focus for the IDL-BL is high through-put, heavy load capacity, and extreme reliability.

High Efficiency, Brushless DC Torque Motor

A high efficiency brushless DC torque motor with rare-earth magnets supplies an optimum ratio of torque per inertia for high acceleration, with minimal stage heating. At maximum continuous torque, the temperature of the motor increases by only 30°C.

Compatible With Industrial Controllers

The IDL-BL linear stage is designed to work with industrial controllers such as the XPS Universal Motion Controller and other third party controllers

Easy Direct Mounting of XY Stack Configurations

The IDL-BL industrial stages are designed for easy direct mounting of XY configurations using common hole patterns. In addition, IDL-BL stages feature both imperial and metric mounting hole patterns allowing for flexible mounting on standard optical tables or custom granite bases.

Optional Brake

Models with optional brake are available. The brake is required for vertical applications to carry as much as 12 kg loads like laser heads or optical assemblies.

Reliable Stage Delivery

Just like any other Newport product, the IDL-BL series can be ordered both from stock or under a blanket schedule. This ensures that OEMs meet their commitments.

Metrology Report Included at No Additional Cost

Newport guarantees specification values which are measured and recorded following ASME B5.57 and ISO 230-2 standards. The typical performance values are two times better than the guaranteed specifications.
