Compare Model Drawings, CAD & Specs Availability Price
Guy Pivot Support, X95 Series Structural Rails
$279
In Stock
AX95 Guy Pivot Support, X95 Series Structural Rails
In Stock
$279
Double Bench Leg, Span Support, 240 lb. (110 kg) Max. Load, X95 Series
$294
In Stock
BCX95D Double Bench Leg, Span Support, 240 lb. (110 kg) Max. Load, X95 Series
In Stock
$294
Single Bench Leg, Span Support, 240 lb. (110 kg) Max. Load, X95 Series
$206
In Stock
BCX95S Single Bench Leg, Span Support, 240 lb. (110 kg) Max. Load, X95 Series
In Stock
$206
Double Bench Leg, End Support, 240 lb. (110 kg) Max. Load, X95 Series
$304
In Stock
BEX95D Double Bench Leg, End Support, 240 lb. (110 kg) Max. Load, X95 Series
In Stock
$304
Single Bench Leg, End Support, 240 lb. (110 kg) Max. Load, X95 Series
$206
In Stock
BEX95S Single Bench Leg, End Support, 240 lb. (110 kg) Max. Load, X95 Series
In Stock
$206
Caster, 275 lb. (125 kg) Maximum Load, X95 Series Structural Rails
$78
In Stock
CAST95 Caster, 275 lb. (125 kg) Maximum Load, X95 Series Structural Rails
In Stock
$78
Structural Corner Cube, X95 Series Structural Rails
$225
In Stock
CX100 Structural Corner Cube, X95 Series Structural Rails
In Stock
$225

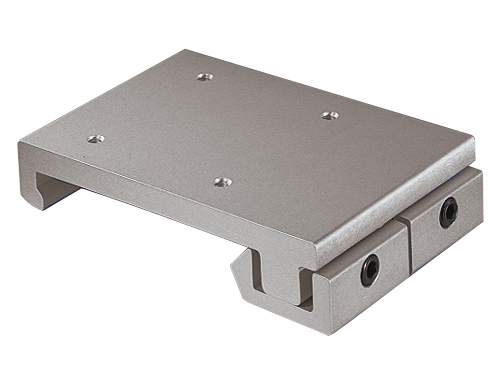

Right Angle Joint, Thru Holes, X95 Series Structural Rails
$149
In Stock

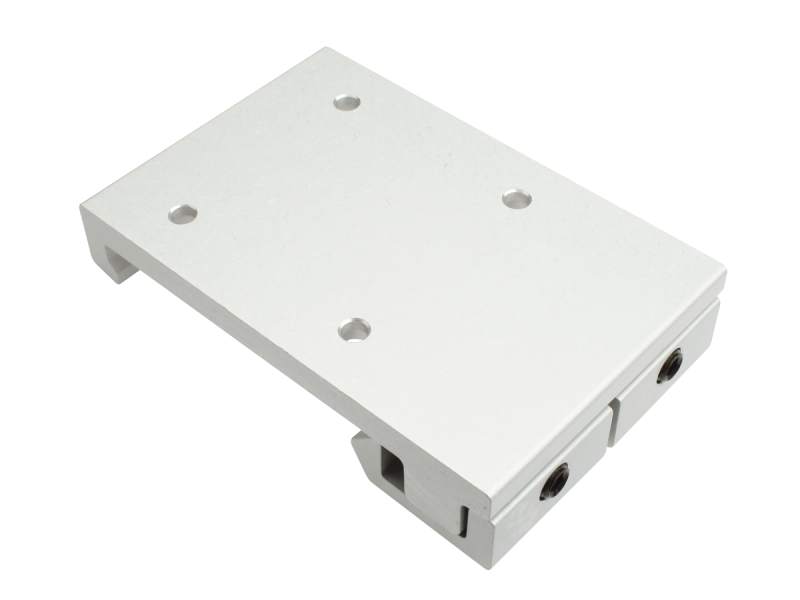

CX95A Right Angle Joint, Thru Holes, X95 Series Structural Rails
In Stock
$149
Right Angle Joint, Tapped Holes, , X95 Series Structural Rails
$153
In Stock
CX95AS Right Angle Joint, Tapped Holes, , X95 Series Structural Rails
In Stock
$153
Rail Carrier, 120 mm Length, 10-24 and 1/4-20 Thread, X95 Series
$182
In Stock
CXL95-120 Rail Carrier, 120 mm Length, 10-24 and 1/4-20 Thread, X95 Series
In Stock
$182
Rail Carrier, 50 mm Length, 1/4-20 Thread, X95 Series
$121
In Stock

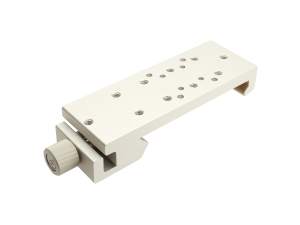

CXL95-50 Rail Carrier, 50 mm Length, 1/4-20 Thread, X95 Series
In Stock
$121
Rail Carrier, 80 mm Length, 8-32 and 1/4-20 Thread, X95 Series
$137
In Stock

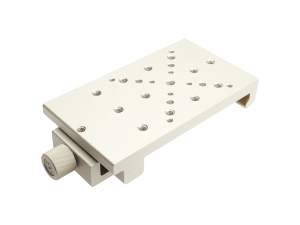

CXL95-80 Rail Carrier, 80 mm Length, 8-32 and 1/4-20 Thread, X95 Series
In Stock
$137
Rail Carriage, 120 mm Length, M5 and M6 Thread, X95 Series
$182
In Stock
M-CXL95-120 Rail Carriage, 120 mm Length, M5 and M6 Thread, X95 Series
In Stock
$182
Rail Carriage, 50 mm Length, M6 Thread, X95 Series
$121
In Stock
M-CXL95-50 Rail Carriage, 50 mm Length, M6 Thread, X95 Series
In Stock
$121
Rail Carriage, 80 mm Length, M4 and M6 Thread, X95 Series
$137
1 Week
M-CXL95-80 Rail Carriage, 80 mm Length, M4 and M6 Thread, X95 Series
1 Week
$137
Rubber Bumper, 135 lb (60 kg) Maximum Load, X95 Structural Rails
$19
In Stock
RB135 Rubber Bumper, 135 lb (60 kg) Maximum Load, X95 Structural Rails
In Stock
$19
Rubber Bumper, 335 lb (150 kg) Maximum Load, X95 Structural Rails
$19
3 Weeks
RB335 Rubber Bumper, 335 lb (150 kg) Maximum Load, X95 Structural Rails
3 Weeks
$19
Side Mounted Leveling Foot, 240 lb (110 kg) Maximum Load, X95 Series
$192
In Stock
VS95 Side Mounted Leveling Foot, 240 lb (110 kg) Maximum Load, X95 Series
In Stock
$192
Aluminum Structural Rail, 500 mm Length, M6 Threads, X95 Series
$163
In Stock
X95-0.5 Aluminum Structural Rail, 500 mm Length, M6 Threads, X95 Series
In Stock
$163
Aluminum Structural Rail, 640 mm Length, M6 Threads, X95 Series
$195
In Stock
X95-0.64 Aluminum Structural Rail, 640 mm Length, M6 Threads, X95 Series
In Stock
$195
Aluminum Structural Rail, 750 mm Length, M6 Threads, X95 Series
$208
In Stock
X95-0.75 Aluminum Structural Rail, 750 mm Length, M6 Threads, X95 Series
In Stock
$208
Aluminum Structural Rail, 1000 mm Length, M6 Threads, X95 Series
$224
In Stock
X95-1 Aluminum Structural Rail, 1000 mm Length, M6 Threads, X95 Series
In Stock
$224
Aluminum Structural Rail, 1500 mm Length, M6 Threads, X95 Series
$292
1 Week
X95-1.5 Aluminum Structural Rail, 1500 mm Length, M6 Threads, X95 Series
1 Week
$292
Aluminum Structural Rail, 2000 mm Length, M6 Threads, X95 Series
$269
In Stock
X95-2 Aluminum Structural Rail, 2000 mm Length, M6 Threads, X95 Series
In Stock
$269
Aluminum Structural Rail, 2500 mm Length, M6 Threads, X95 Series
$404
In Stock
X95-2.5 Aluminum Structural Rail, 2500 mm Length, M6 Threads, X95 Series
In Stock
$404
Mounting Plate, SLM-1A and RB135 to X95 Series Structural Rails
$79
5 Weeks

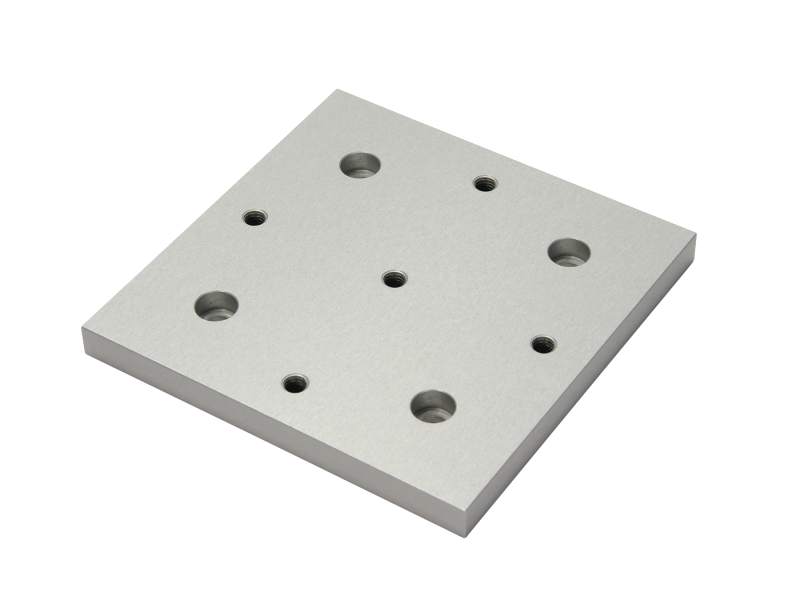

X95-AP1 Mounting Plate, SLM-1A and RB135 to X95 Series Structural Rails
5 Weeks
$79
Mounting Plate, SLM-3A and RB335 to X95 Series Structural Rails
$79
3 Weeks

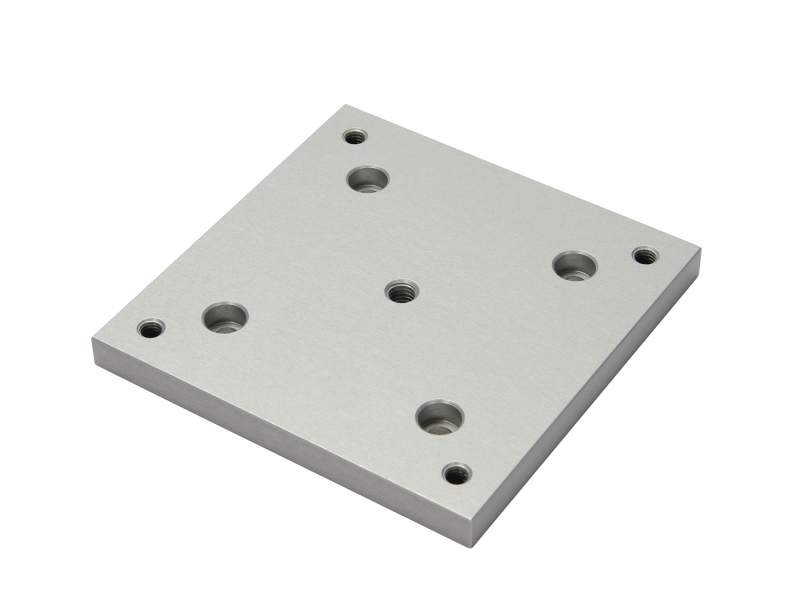

X95-AP3 Mounting Plate, SLM-3A and RB335 to X95 Series Structural Rails
3 Weeks
$79
Plastic End Plate, X95 Series Structural Rails
$22
In Stock
X95-EP Plastic End Plate, X95 Series Structural Rails
In Stock
$22
Centered Leveling Foot, 240 lb (110 kg) Maximum Load, X95 Series
$110
In Stock
X95-LF Centered Leveling Foot, 240 lb (110 kg) Maximum Load, X95 Series
In Stock
$110
T-Stand, 240 lb (110 kg) Maximum Load, X95 Series Structural Rails
$336
In Stock
X95-T T-Stand, 240 lb (110 kg) Maximum Load, X95 Series Structural Rails
In Stock
$336

Features

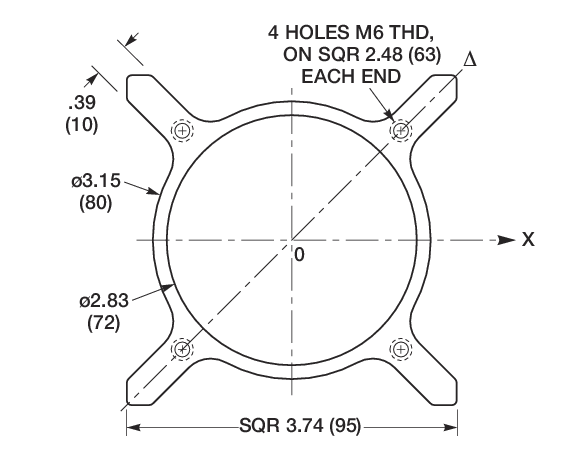

Rigid and Lightweight Aluminum Cylinder Core

The X95 rails provide rigid and lightweight support with an aluminum cylinder core and four, 10mm thick longitudinal reinforcing ribs on which dovetail carriers are easily mounted and removed locally. The rib structure also increase the longitudinal and torsional rigidity of the rail and supports both horizontal and vertical configurations.

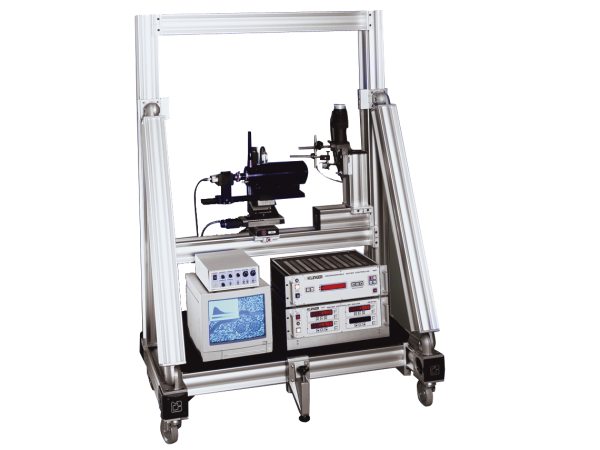

Build Large Scale Rigid Structures

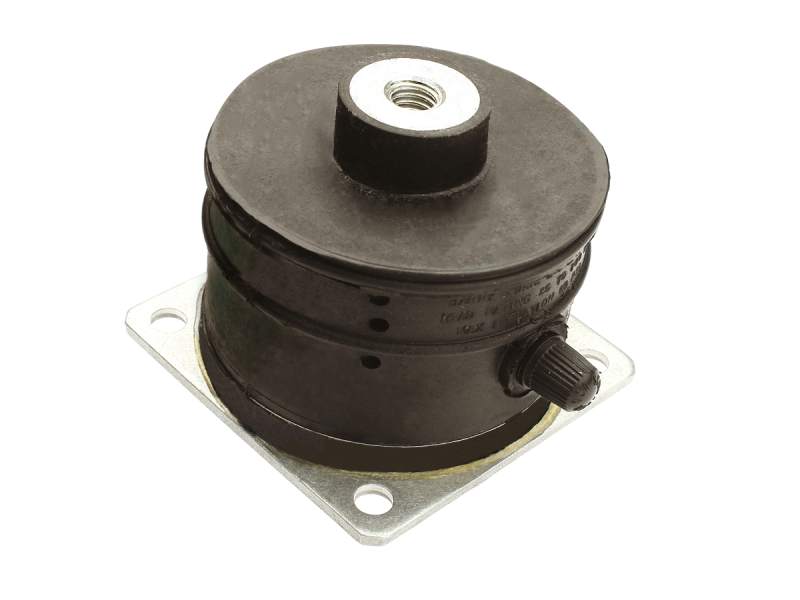

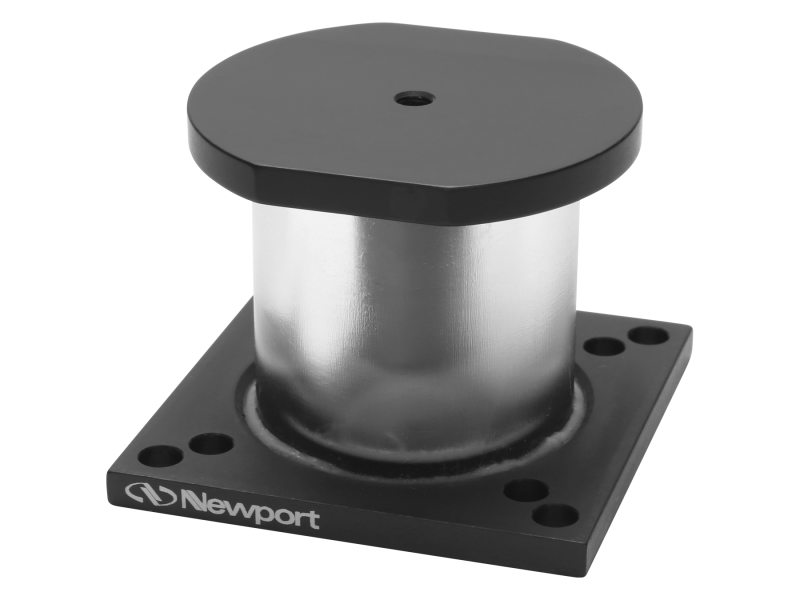

Rigid support structures can be easily constructed using CX95A / CX95AS right angle joints andCX100 structural cubes. Large structures can be stiffened by AX94 or AX95 guy stiffens in a tension arrangement. Newport has adaptor plates to attach X95 components to pneumatic Stable Level Mounts, elastomeric dampers or rubber bumpers. Casters and leveling feet are also available. These options allow flexible sized workstation frames for breadboards, granite tables or small optical tables.

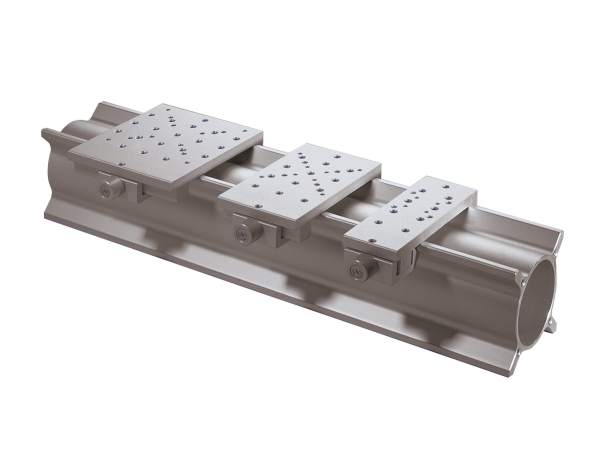

Three Rail Carrier Sizes with Metric or Imperial Threads

Components can be quickly mounted to or removed from rails via CXL95 carriers. Three carrier sizes are designed to support positioners with 50 mm, 80 mm and 120 mm width sizes on the X95 Rail. English or metric mounting holes allow direct mounting of a wide selection of linear stages, rotation stages and optical mounts. For easy assembly and disassembly, carriers can be removed or installed at any point on the rail by loosening the thumbscrew and tipping the carrier. A unique clamp design eliminates contact between the screw shaft and rail for easier sliding, more stable positioning and prevention of possible rail damage from over tightening. Strong, secure dovetail mounting design allows carriers to be mounted vertically on the sides of the rail, or even suspended upside-down from the bottom of the rail.

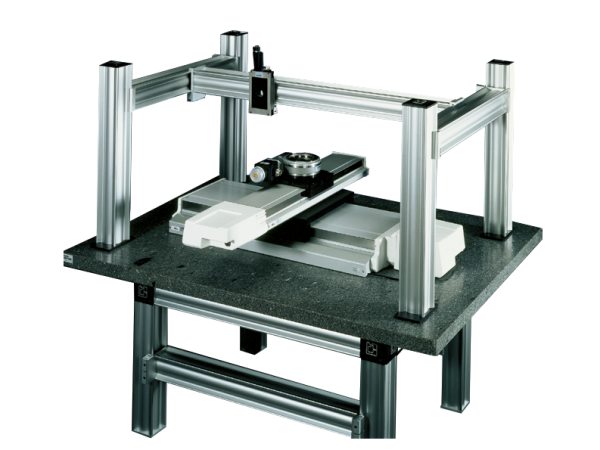

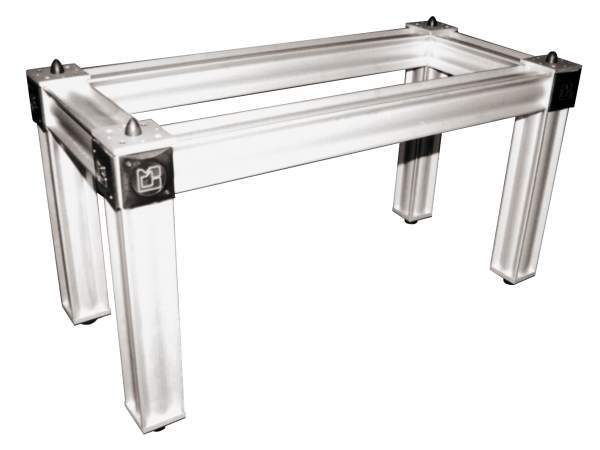

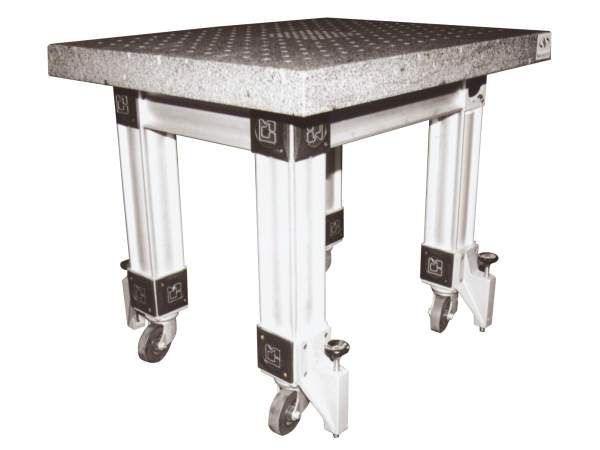

Build Rigid Optical Tables or Workstations

These high load capacity structural rails can be used as the base for a granite top optical table or a breadboard top optical workstation.

Leveling Feet for Stand Alone Applications

A wide variety of mounting feet options are available for stand-alone optical systems and large scale structures.
