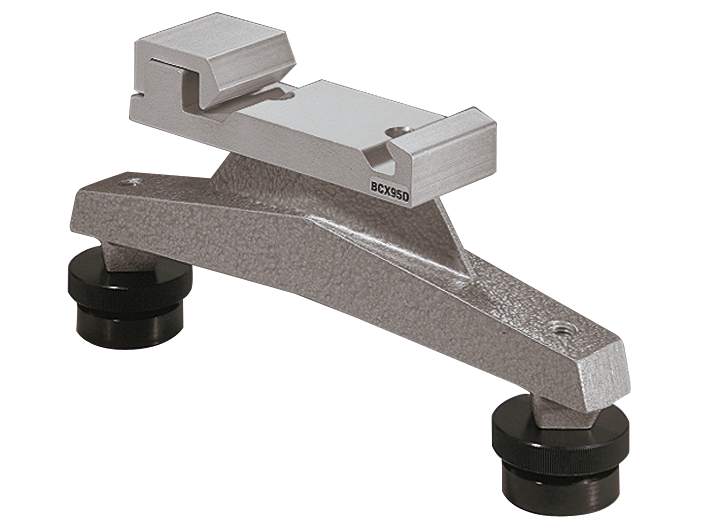

Double Bench Leg, Span Support, 240 lb. (110 kg) Max. Load, X95 Series

X95 Structural Optical Rails and Carriers

The BCX95D Span Support for X95 Series Structural Rails has two bench legs, and a maximum load of 240 lb. (110 kg).

Specifications

Technical Specs

Length
50 mm
Load Capacity
240 kg

Length
50 mm
Load Capacity
240 kg

Resources & Downloads

Literature

X95 Brochure(1.8 MB, PDF)

2D Product Drawings

BCX95S-BCX95D DWG-S(78.7 kB, PDF)

Other

BCX95D_RoHS2021.pdf(684.9 kB, PDF)
