Right Angle Joint, Tapped Holes, X95 Series Structural Rails
Right Angle Joint, Tapped Holes, X95 Series Structural Rails
Model: CX95AS
Product Series Overview

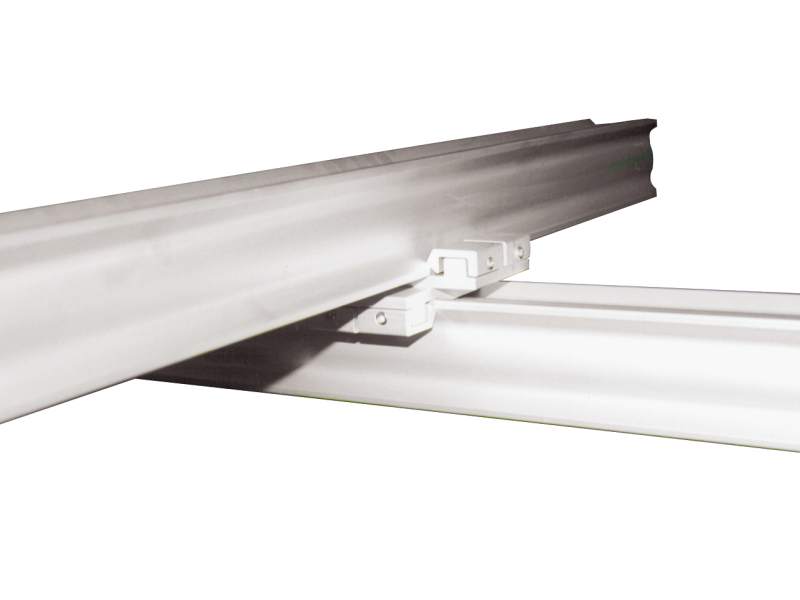

X95 Structural Optical Rails and CarriersThe CX95AS Right Angle Joint with tapped holes connects the bottom of a X95 rail to the side of a X95 rail for building rigid structures.
Resources & Downloads
Literature
X95 Brochure(1.8 MB, PDF)
2D Product Drawings
CX95AS(378.2 kB, PDF)
