Power Measurement Kits, PMKIT Series

Newport’s industry-renowned optical power meters and detectors are available as cost-effective bundles, simplifying product selection and ordering process.

All PMKIT kits include entire content of the selected power meter, entire content of the selected detector, and mounting accessories SP-3, M-SP-3 and BPH-3.

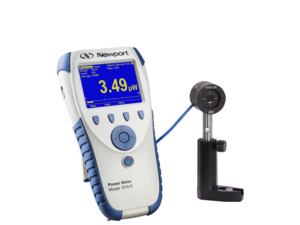

Kit includes a power meter, a detector, and mounting assembly
Cost-saving bundle for industry proven products
Simple ordering process and great flexibility
Easily expandable for future application requirements

See All Features

Show Filters:

Showing 10 of 14 total products

Compatibility:

Description	Compatibility	Detector Model	Power Meter Model	Spectral Range	Maximum Measurable Power	Maximum Measurable Power Without Attenuator	Avail.	Price
PMKIT-05-01Optical Power Meter Kit, 843-R, 818-UV/DB Sensor, 200-1100 nm, 1.5 W	UNIVERSAL	818-UV/DB	843-R	200 - 1100 nm	1.5 W	5 mW (200 - 400 nm); 2.5 mW (400 - 600 nm, >1050 nm) , 1.5 mW (600 - 1050 nm)	In Stock	$1,779

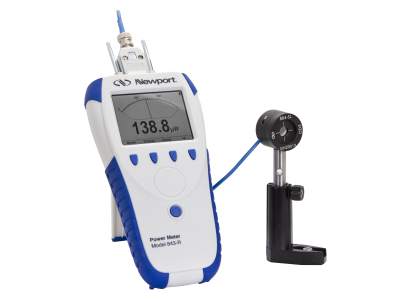

PMKIT-06-01Optical Power Meter Kit, 843-R, 818-SL/DB Sensor, 400-1100 nm, 2 W	UNIVERSAL	818-SL/DB	843-R	400 - 1100 nm	2 W	2.5 mW	7 Weeks	$1,694

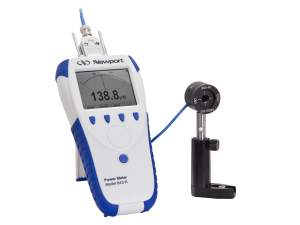

PMKIT-07-01Optical Power Meter Kit, 843-R, 818-IR/DB Sensor, 780-1800 nm, 1.3 W	UNIVERSAL	818-IR/DB	843-R	780 - 1800 nm	1.3 W	1.3 mW	In Stock	$1,839

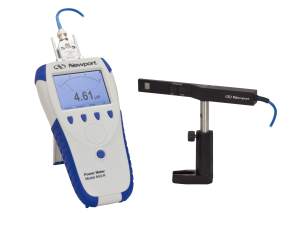

PMKIT-15-01Optical Power Meter Kit, 843-R, 818-ST2/DB Sensor, 400-1100 nm, 2 W	UNIVERSAL	818-ST2/DB	843-R	400 - 1100 nm	2 W	2.5 mW	Contact Us	$1,864

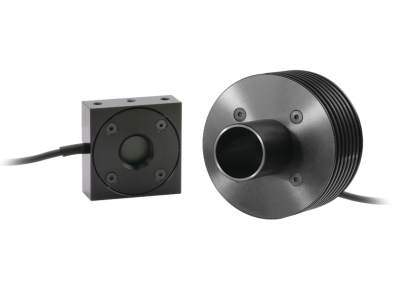

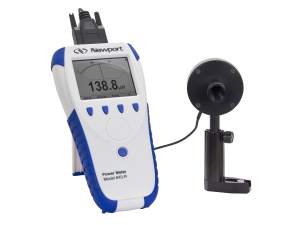

PMKIT-21-01Optical Power Meter Kit, 843-R, 919P-003-10 Sensor, 0.19-10.6 µm, 3 W	UNIVERSAL	919P-003-10	843-R	190 - 10,600 nm	3 W	N/A	In Stock	$2,497
PMKIT-22-01Optical Power Meter Kit, 843-R, 919P-010-16 Sensor, 0.19-10.6 µm, 10 W	UNIVERSAL	919P-010-16	843-R	190 - 10,600 nm	10 W	N/A	7 Weeks	$2,081

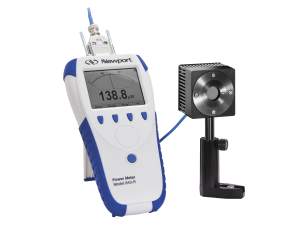

PMKIT-24-01Optical Power Meter Kit, 843-R, 919P-030-18 Sensor, 0.19-10.6 µm, 30 W	UNIVERSAL	919P-030-18	843-R	190 - 10,600 nm	30 W	N/A	In Stock	$2,329
PMKIT-05-03Optical Power Meter Kit, 843-R-USB, 818-UV/DB Sensor, 200-1100 nm	UNIVERSAL	818-UV/DB	843-R-USB	200 - 1100 nm	1.5 W	400 nm); 2.5 mW (400 - 600 nm, >1050 nm) , 1.5 mW (600 - 1050 nm)	6 Weeks	$2,000

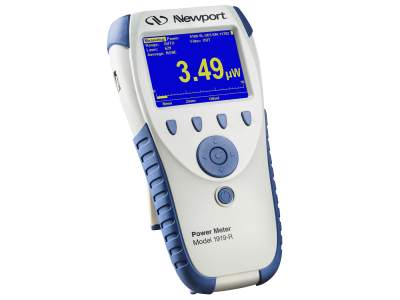

PMKIT-05-04Optical Power Meter Kit,1919-R, 818-UV/DB Sensor, 200-1100 nm, 1.5 W	UNIVERSAL	818-UV/DB	1919-R	200 - 1100 nm	1.5 W	400 nm); 2.5 mW (400 - 600 nm, >1050 nm) , 1.5 mW (600 - 1050 nm)	6 Weeks	$2,635

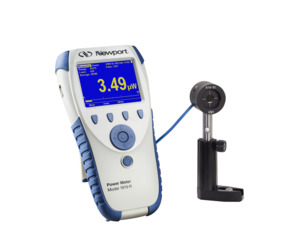

PMKIT-06-04Optical Power Meter Kit,1919-R, 818-SL/DB Sensor, 400-1100 nm, 2 W	UNIVERSAL	818-SL/DB	1919-R	400 - 100 nm	2 W	2.5 mW	Contact Us	$2,651

Show All

Features

Kits Offer Bundle Savings

These kits are ideal for those who are new to optical measurements and who need simple measurement tools. All kits include SP-3 and M-SP-3 mounting posts and BPH-3 slotted-base post holder. You can order either a pre-configured kit or you can configure your own set of power meter and detector using the model number PMKIT. 843-R, 843-R-USB, and 1919-R power meters come with a plastic carrying case.

Easily Expandable

It is easy to expand the capabilities of your power measurement products after purchasing the power meter kit. Thanks to the large number of compatible products available at Newport, you can simply purchase another detector, a meter, or optomechanical components as new requirements arise.
