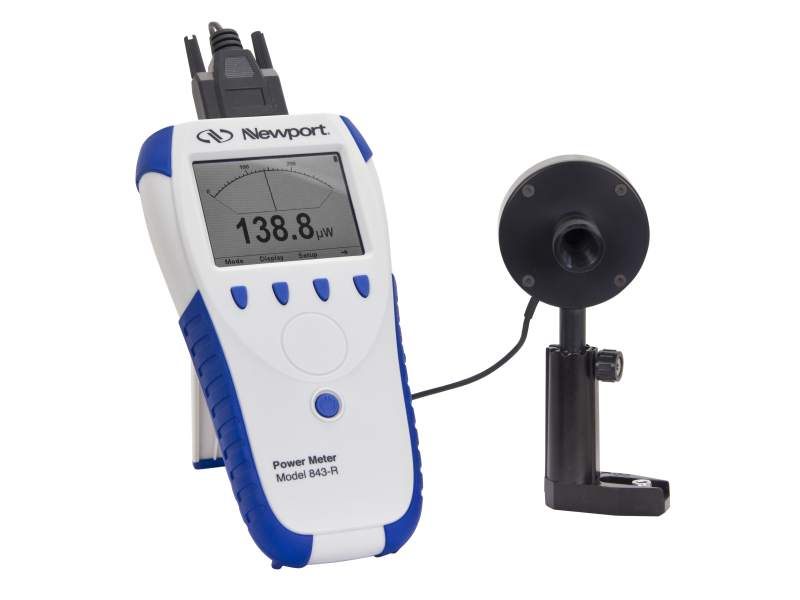

Optical Power Meter Kit, 843-R, 919P-003-10 Sensor, 0.19-10.6 µm, 3 W

Model: PMKIT-21-01

$2,494

4 Weeks

Compare

Add to List

Product Series Overview

Power Measurement Kits, PMKIT

The PMKIT-21-01 can measure optical power level in the 0.19 to 10.6 µm wavelength range. Power meter kits are especially useful for those who are new to optical measurements and who need simple measurement tools. Save big when purchased as a kit. The kit includes the following components:

Model 843-R optical power meter

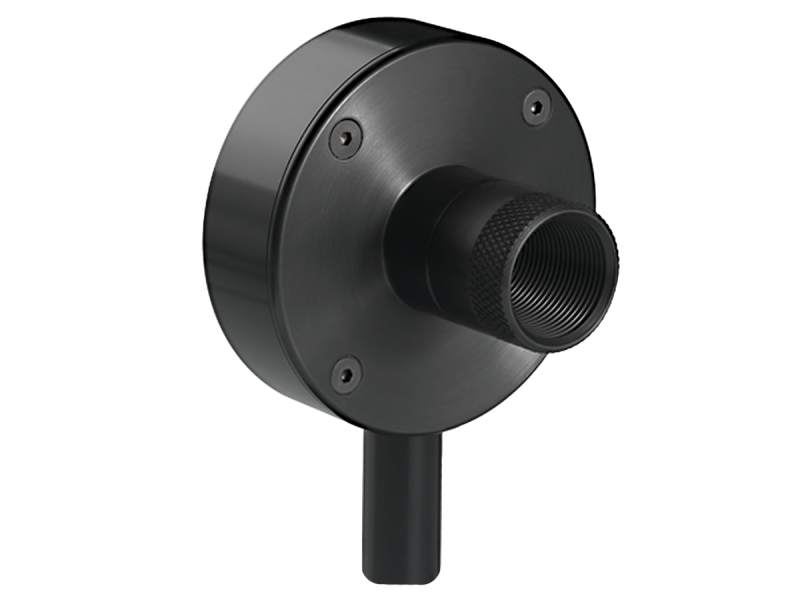

Model 919P-003-10 Thermopile detector
Post and post holder

For specifications, refer to individual product web pages. Please refer to our Optical Power Meter Selection Guide and Calibrated Detector Selection Guide to review the complete Newport offering.

Kits Offer Bundle Savings

These kits are ideal for those who are new to optical measurements and who need simple measurement tools. All kits include SP-3 and M-SP-3 mounting posts and BPH-3 slotted-base post holder. You can order either a pre-configured kit or you can configure your own set of power meter and detector using the model number PMKIT. 843-R, 843-R-USB, and 1919-R power meters come with a plastic carrying case.

Easily Expandable

It is easy to expand the capabilities of your power measurement products after purchasing the power meter kit. Thanks to the large number of compatible products available at Newport, you can simply purchase another detector, a meter, or optomechanical components as new requirements arise.

Specifications

Technical Specs

Detector Model

919P-003-10
Power Meter Model

843-R
Spectral Range

190 to 10,600 nm
Maximum Measurable Power

3 W
Maximum Measurable Power Without Attenuator

N/A
Sensor Size

Ø9.5 mm
Minimum Detectable Power

40 uW
Calibration Uncertainty

±3 %

Calibration Uncertainty With Attenuator

N/A
Power Range

40 uW - 3 W
Maximum Power Density

1 kW/cm²
Accuracy

±0.25 % (Full Scale) ± 20 pA
Display Type

High legibility TFT 320 x 240 pixel graphics LCD
Sampling Rate

20 Hz

Detector Model

919P-003-10
Power Meter Model

843-R
Spectral Range

190 to 10,600 nm
Maximum Measurable Power

3 W
Maximum Measurable Power Without Attenuator

N/A
Sensor Size

Ø9.5 mm
Minimum Detectable Power

40 uW
Calibration Uncertainty

±3 %

Calibration Uncertainty With Attenuator

N/A
Power Range

40 uW - 3 W
Maximum Power Density

1 kW/cm²
Accuracy

±0.25 % (Full Scale) ± 20 pA
Display Type

High legibility TFT 320 x 240 pixel graphics LCD
Sampling Rate

20 Hz

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

919P-003-10 (82.8 kB, PDF)

Literature

Understanding Total Measurement Uncertainty (649.3 kB, PDF)
Power Measurement Kit Datasheet.pdf (417.2 kB, PDF)

Technical Notes

Average and Peak Power Calculation (31.9 kB, PDF)
A Shortcut for Calculating Power Density (35.2 kB, PDF)

Related Products

Accessories

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		919P-FC Optical Fiber Adapter, FC/PC, 919P Series Thermopile Power Sensors	UNIVERSAL		6 Weeks	$192
		919P-SMA Fiber Adaptor, SMA, 919P Series Thermopile Power Sensors	UNIVERSAL		3 Weeks	$119

Sparepart

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		919P-003-10 Thermopile Sensor, 3 W, 10 mm, 0.19-11 µm	UNIVERSAL		In Stock	$1,437
		843-R Optical power meter, economical, handheld, laser power and energy	UNIVERSAL		In Stock	$1,035

Similar

Description	Compatibility	Avail.	Price
PMKIT-22-01 Optical Power Meter Kit, 843-R, 919P-010-16 Sensor, 0.19-10.6 µm, 10 W	UNIVERSAL	4 Weeks	$2,085
PMKIT-24-01 Optical Power Meter Kit, 843-R, 919P-030-18 Sensor, 0.19-10.6 µm, 30 W	UNIVERSAL	4 Weeks	$2,334
PMKIT-05-01 Optical Power Meter Kit, 843-R, 818-UV/DB Sensor, 200-1100 nm, 1.5 W	UNIVERSAL	4 Weeks	$1,788
PMKIT-06-01 Optical Power Meter Kit, 843-R, 818-SL/DB Sensor, 400-1100 nm, 2 W	UNIVERSAL	4 Weeks	$1,702
PMKIT-07-01 Optical Power Meter Kit, 843-R, 818-IR/DB Sensor, 780-1800 nm, 1.3 W	UNIVERSAL	4 Weeks	$1,846
PMKIT-15-01 Optical Power Meter Kit, 843-R, 818-ST2/DB Sensor, 400-1100 nm, 2 W	UNIVERSAL	4 Weeks	$1,868
