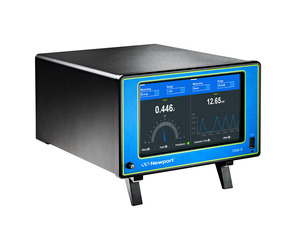

Compatible Power Meters
Accessories
Resources
Contact Us

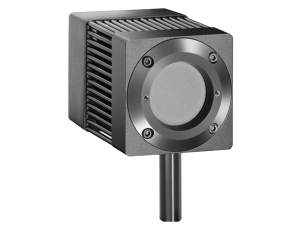

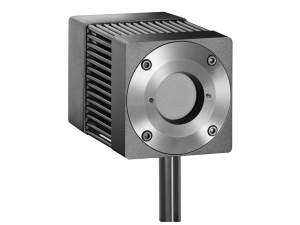

919p series thermopile optical sensors for high power laser measurement

Overview

Newport has a full range of 919P Series Thermopile Detectors for measuring high power lasers between µW to 5 kW output.

Broadband flat spectral response from 0.19–11 µm
NIST-traceable calibration included
Insensitive to beam position
Ideal for measuring average power of high power lasers or broadband sources

See All Features

Products

Compare	Model	Compatibility	rankScore	Absorber Type	Sensor Size	Maximum Measurable Power	Maximum Power Density	Spectral Range	Availability	Featured Item	Price	Brand
919P-003-10 Thermopile Sensor, 3 W, 10 mm, 0.19-11 µm $1,437 In Stock	919P-003-10 Thermopile Sensor, 3 W, 10 mm, 0.19-11 µm	UNIVERSAL	1.0	BB - Broadband General Purpose	Ø9.5 mm	3 W	1 kW/cm²	0.19 to 11 µm	In Stock		$1,437	Newport
919P-010-16 Thermopile Sensor, 10 W, 16 mm, 0.19-11 µm $1,025 In Stock	919P-010-16 Thermopile Sensor, 10 W, 16 mm, 0.19-11 µm	UNIVERSAL	1.0	BB - Broadband General Purpose	Ø16 mm	10 W	28 kW/cm²	0.19 to 11 µm	In Stock		$1,025
919P-020-12 Thermopile Sensor, Slim, 20 W (4 W Standalone), 12 mm, 0.19-11 µm $1,396 In Stock	919P-020-12 Thermopile Sensor, Slim, 20 W (4 W Standalone), 12 mm, 0.19-11 µm	UNIVERSAL	1.0	BB - Broadband General Purpose	Ø12 mm	4 W (standalone), 20 W (with a heat sink)	23 kW/cm²	0.19 to 11 µm	In Stock		$1,396
New 919P-030-17HD Thermopile Sensor, High Damage Threshold, 30 W, 17 mm, 0.19-11 µm $2,100 Contact Us	New 919P-030-17HD Thermopile Sensor, High Damage Threshold, 30 W, 17 mm, 0.19-11 µm	UNIVERSAL	1.0	SV - Very High Damage Threshold	Ø17 mm	30 W	60 kW/cm²	0.19 to 11 µm	Contact Us	New	$2,100	Newport
919P-030-18 Thermopile Sensor, 30 W, 18 mm, 0.19-11 µm $1,270 In Stock	919P-030-18 Thermopile Sensor, 30 W, 18 mm, 0.19-11 µm	UNIVERSAL	1.0	BB - Broadband General Purpose	Ø17.5 mm	30 W	20 kW/cm²	0.19 to 11 µm	In Stock		$1,270	Newport
919P-040-50 Thermopile Sensor, 35 W CW, 50 mm, 0.19-11 µm $1,778 Contact Us	919P-040-50 Thermopile Sensor, 35 W CW, 50 mm, 0.19-11 µm	UNIVERSAL	1.0	BB - Broadband General Purpose	Ø50 mm	35 W	12 kW/cm²	0.19 to 11 µm	Contact Us		$1,778	Newport
919P-050-18HP Thermopile Sensor, High Peak Power, 50 W, 17.5 mm, 0.24-2.2 µm $1,914 In Stock	919P-050-18HP Thermopile Sensor, High Peak Power, 50 W, 17.5 mm, 0.24-2.2 µm	UNIVERSAL	1.0	PF - High Peak Power	Ø17.5 mm	50 W	0.5 kW/cm²	0.24 to 2.2 µm	In Stock		$1,914	Newport
919P-050-26 Thermopile Sensor, 50 W, 26 mm, 0.19-11 µm $1,307 In Stock	919P-050-26 Thermopile Sensor, 50 W, 26 mm, 0.19-11 µm	UNIVERSAL	1.0	BB - Broadband General Purpose	Ø26 mm	50 W	12 kW/cm²	0.19 to 11 µm	In Stock		$1,307	Newport
New 919P-080-17HR Thermopile Sensor, High Damage Threshold, 80 W, 17 mm, 0.248-9.4 µm $1,679 Contact Us	New 919P-080-17HR Thermopile Sensor, High Damage Threshold, 80 W, 17 mm, 0.248-9.4 µm	UNIVERSAL	1.0	CM - High Damage Threshold	Ø17 mm	80 W	35 kW/cm²	0.248 to 9.4 µm	Contact Us	New	$1,679	Newport
New 919P-150-16HR Thermopile Sensor, High Damage Threshold, 150 W, 16 mm, 0.248-9.4 µm $1,829 Contact Us	New 919P-150-16HR Thermopile Sensor, High Damage Threshold, 150 W, 16 mm, 0.248-9.4 µm	UNIVERSAL	1.0	CM - High Damage Threshold	Ø16 mm	150 W	35 kW/cm²	0.248 to 9.4 µm	Contact Us	New	$1,829	Newport
919P-150-26 Thermopile Sensor, 150 W, 26 mm, 0.19-11 µm, Fan Cooled $1,569 Contact Us	919P-150-26 Thermopile Sensor, 150 W, 26 mm, 0.19-11 µm, Fan Cooled	UNIVERSAL	1.0	BB - Broadband General Purpose	Ø26 mm	150 W	12 kW/cm²	0.19 to 11 µm	Contact Us		$1,569	Newport
919P-250-35 Thermopile Sensor, 250 W, 35 mm, 0.19-11 µm, Fan Cooled $2,029 In Stock	919P-250-35 Thermopile Sensor, 250 W, 35 mm, 0.19-11 µm, Fan Cooled	UNIVERSAL	1.0	BB - Broadband General Purpose	Ø35 mm	250 W	10 kW/cm²	0.19 to 11 µm	In Stock		$2,029	Newport
919P-5KW-50 Thermopile Detector, 5 kW, 50 mm, 0.19- 11 µm, Water Cooled $4,698 In Stock	919P-5KW-50 Thermopile Detector, 5 kW, 50 mm, 0.19- 11 µm, Water Cooled	UNIVERSAL	1.0	BB - Broadband General Purpose	Ø50 mm	5000 W	3 kW/cm²	0.19 to 11 µm	In Stock		$4,698	Newport

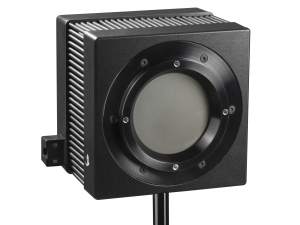

919P-600-65 Thermopile Sensor, 600 W, 65 mm, 0.19-11 µm, Fan Cooled $3,398 In Stock	919P-600-65 Thermopile Sensor, 600 W, 65 mm, 0.19-11 µm, Fan Cooled	UNIVERSAL	1.0	BB - Broadband General Purpose	Ø65 mm	600 W	7 kW/cm²	0.19 to 11 µm	In Stock		$3,398	Newport

Show All

Features

Absorption over Broad Wavelength Range

The thermopile detector’s response to the input laser beam is characterized by its absorption. Newport thermopile sensors use four different types of coating in the sensors. The broadband BB type is employed in most of the 919P models and has an excellent absorption throughout the responsive wavelength range. The CM and SV types are used mainly with high repetition lasers with ultra-short pulses and have a relatively flat response.

The 919P sensors using BB and SV absorbers can measure wavelengths up to 11 µm, while the CM sensors can measure up to 9.4 µm.

The PF type has wavelength dependent response, and it is employed in the sensor 919P-050-18HP, which is specially designed for high energy density pulses and can measure up to 2.2 µm.

Extensively Tested for Damage Threshold vs. Pulse Width

The 919P series thermopile detectors have been extensively tested for the damage threshold with a variety of lasers. You can trust our specifications and have your mind at ease.

Thermopile Sensor Physics

Thermopile optical power sensors are based on thermocouples. A thermocouple consists of two dissimilar metals connected in series. To detect radiation, one metal junction is typically blackened to absorb the radiation. The temperature rise of this junction with respect to another non-irradiated junction generates a voltage. This effect is the basis of all thermocouple temperature sensors. The thermocouple materials used in thermopiles are usually bismuth and antimony, which have a relatively high thermoelectric coefficient. An individual thermocouple typically produces a low output voltage, which results in a low detectivity and limits its use as a sensing device. So, one way to increase the output voltage is to connect many thermocouple junctions in series. All the “hot” junctions are placed close together to collect the radiation. The typical operation of a thermopile is shown above. The thermopile disc consists of a circular array of thermocouples. The optical radiation is absorbed by the disc generating the output voltage. The heat on the disc spreads radially across the thermopile on the reverse side of the disc where it is transferred to a heat sink. These devices are quite sensitive in the IR due to their broadband absorption. Due to the heating and cooling processes, the response time of a thermopile is quite slow, typically on the order of seconds. Due to this time constraint, thermopiles are used exclusively for measuring the power of CW or quasi-CW radiation sources. Please see our Thermopile Sensor Physics technical note for additional information.

Wide Range of Sensors for Power Measurement

Newport’s 919P thermopile detector series provides a full range of sensors to meet the power measurement needs for CW or pulsed lasers. They offer broadband, spectrally flat response, with the maximum power range up to 5000 Watts.

NIST Traceability

Each 919P thermopile sensor includes a DB15 connector and internal EEPROM for storing factory calibration data. Most sensors (BB) are calibrated at three different wavelengths at 532 nm, 1070 nm and 10.6 µm. Other sensor types (PF, CM and SV) use other or additional wavelengths for their calibration for example: 190, 248, 355, and 2100 nm.  Calibration of the thermopile detectors is recommended annually to assure NIST traceability.

Cross Reference Chart for Legacy 818P Series Thermopile Sensors

Legacy 818P Model	Replacement 919P Model
818P-001-12, 818P-001-12NIR	919P-003-10
818P-015-19	919P-010-16
818P-010-12, 818P-020-12	919P-020-12
818P-030-19, 818P-015-17W, 818P-030-17W	919P-030-18
818P-040-55, 818P-040-50W, 818P-050-50W	919P-040-50
818P-015-18HP, 818P-030-18HP	919P-050-18HP
818P-040-25, 818P-050-17W	919P-050-26
818P-100-25, 818P-110-19, 818P-150-19	919P-150-26
818P-100-55, 818P-250-25, 818P-300-25	919P-250-35
818P-300-55, 818P-400-55, 818P-500-55	919P-600-65
818P-3KW-65, 818P-3KW-100	919P-5KW-50

Please note that the 919P Series Thermopile Sensors are intended to replace the 818P Series Sensor. Also note that both the series are incompatible with certain optical power meter models. The following table provides the recommended replacement 919P models for each 818P series model. Even though the recommended models have the closest specifications as the obsoleting ones, however, not identical. The user must carefully compare each specification.

Sensor Selection for Lasers

If you already own a laser from Newport and Spectra Physics, check our Optical Sensor Selection Guide to see the recommended sensor each laser product.

Flexible Fiber Adapters

Detector Model	Required Mounting Ring
919P-030-18	919P-18FA
919P-040-50	919P-50FA
919P-050-26, 919P-150-26	919P-26FA
919P-250-35	919P-35FA
919P-020-12, 919P-050-18H	Fiber adapters not mountable

The 919P-SMA and 919P-FC fiber adapter can be used with most of the detector models. Remove the snout for Models 919P-003-10 and 919P-010-16 and directly mount the fiber adapters on the thread. In order to accommodate various aperture sizes, we provide adapter rings as well as the fiber adapters. Refer to the table for the corresponding adapter ring for each detector model. Note that certain models do not accept a fiber adapter.
