Thermopile Sensor, 600 W, 65 mm, 0.19-11 µm, Fan Cooled

The 919P-600-65 Fan Cooled Thermopile Sensor is an improved version of 919P-500-65, pushing the maximum power level up to 600 W. It's BB absorber type is spectrally flat and covers the wavelength range 190 nm to 11 µm. It has a large active diameter of 65 mm and can measure continuous optical power from 5 to 600 W and single shot energy from 600 mJ to 600 J. It has a 1/4-20 tapped hole for post or plate mounting and includes a 2.25 inch long 1/2 inch diameter post with a 1/4-20 tapped hole on both ends.

Specifications

Technical Specs

Absorber Type
BB - Broadband General Purpose
Detector Type
Thermopile
Spectral Range
0.19 to 11 µm
Maximum Measurable Power
600 W
Sensor Size
Ø65 mm
Maximum Power Density
7 kW/cm²
Maximum Energy Density
<100 ns, 0.3 J/cm²
0.5 ms, 4 J/cm²
2 ms, 10 J/cm²
10 ms, 30 J/cm²
Power Noise Level
200 mW
Power Range
5 W - 600 W
Cooling
Fan cooled
Connector Type
DB15
Linearity
±1.5 %

Calibration Uncertainty
±1.9%
Repeatability
±0.5 %
Beam Size Dependence
±0.5 %
Operating Temperature Range
15°C to 35°C, <70% RH, non-condensing
Storage Temperature Range
0°C to 50°C, <90% RH
Cable Length
1.5 m
Dimensions
128 x 128 x 116 mm
Weight
2.4 kg
CE
Compliant
RoHS
Compliant

Absorber Type
BB - Broadband General Purpose
Detector Type
Thermopile
Spectral Range
0.19 to 11 µm
Maximum Measurable Power
600 W
Sensor Size
Ø65 mm
Maximum Power Density
7 kW/cm²
Maximum Energy Density
<100 ns, 0.3 J/cm²
0.5 ms, 4 J/cm²
2 ms, 10 J/cm²
10 ms, 30 J/cm²
Power Noise Level
200 mW
Power Range
5 W - 600 W
Cooling
Fan cooled
Connector Type
DB15
Linearity
±1.5 %

Calibration Uncertainty
±1.9%
Repeatability
±0.5 %
Beam Size Dependence
±0.5 %
Operating Temperature Range
15°C to 35°C, <70% RH, non-condensing
Storage Temperature Range
0°C to 50°C, <90% RH
Cable Length
1.5 m
Dimensions
128 x 128 x 116 mm
Weight
2.4 kg
CE
Compliant
RoHS
Compliant

Resources & Downloads

Related Products

Accessories

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price

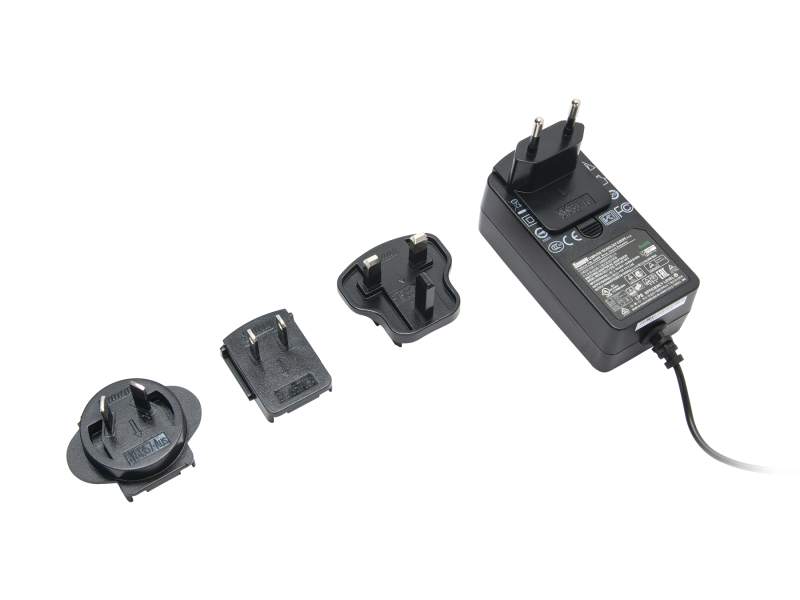

		7E05029-NPPower Supply, Spare, 919P Series Fan Cooled Detectors	UNIVERSAL		In Stock	$52

Compatible

Description	Compatibility	Avail.	Price
1938-RAdvanced Optical Power & Meter, Benchtop, Single Channel	UNIVERSAL	Contact Us FREE 2-day shipping on thousands of products on Newport.com Learn More	$3,662

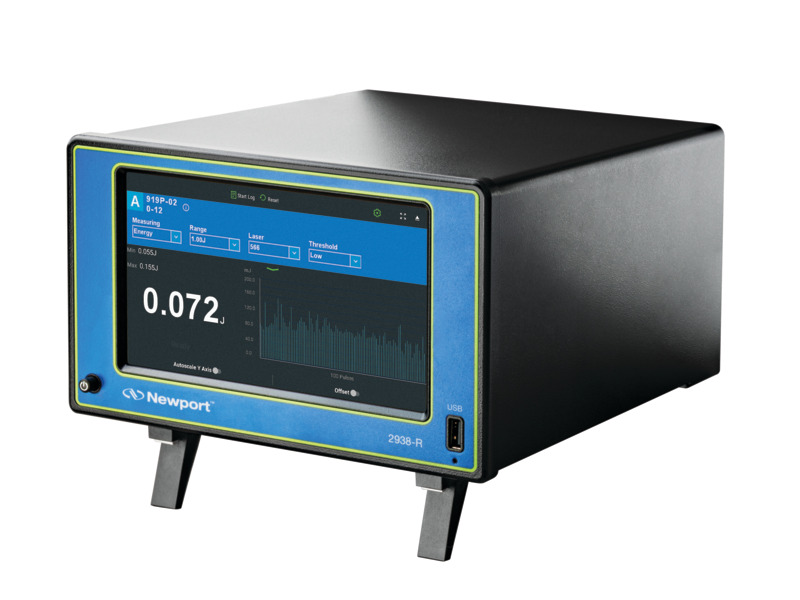

2938-RAdvanced Optical Power & Meter, Benchtop, Dual Channel	UNIVERSAL	3 Weeks FREE 2-day shipping on thousands of products on Newport.com Learn More	$4,406

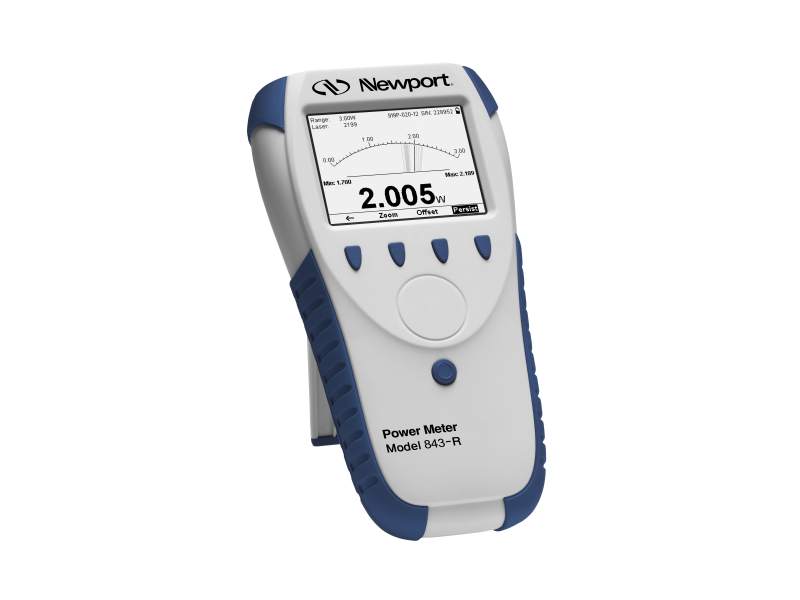

843-ROptical power meter, economical, handheld, laser power and energy	UNIVERSAL	In Stock	$1,067

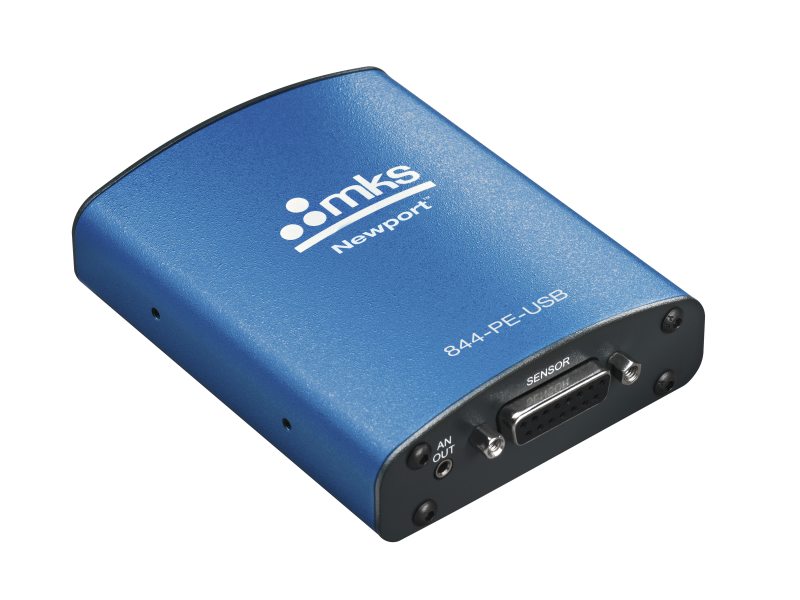

844-PE-USBVirtual Power Meter, Optical Power and Energy, USB	UNIVERSAL	3 Weeks	$885
