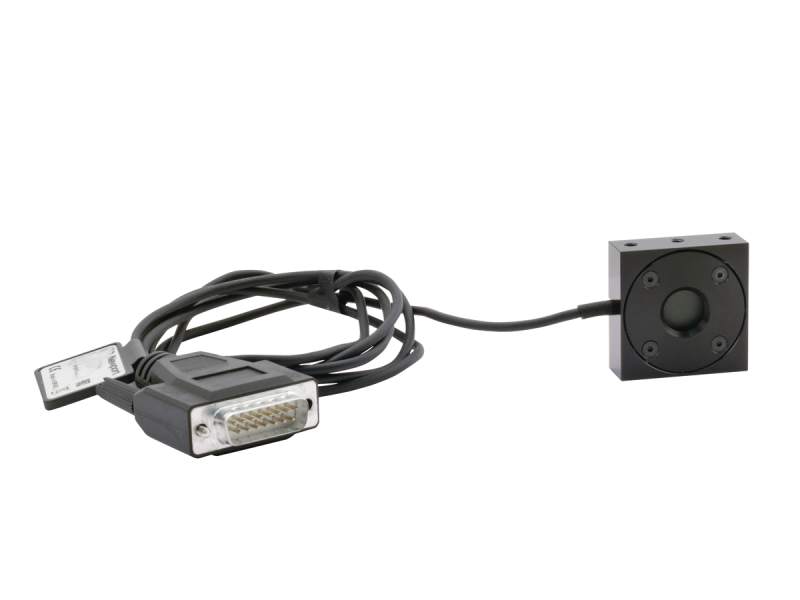

Thermopile Sensor, Slim, 20 W (4 W Standalone), 12 mm, 0.19-11 µm

Technical Specs

  • Detector Type
    General Purpose
  • Spectral Range
    0.19 to 11 µm
  • Maximum Measurable Power
    4 W standalone (20 W with a heat sink)
  • Sensor Size
    Ø12 mm
  • Maximum Power Density
    23 kW/cm2
  • Maximum Energy Density
    <100 ns, 0.3 J/cm2
    0.5 ms, 2 J/cm2
    2 ms, 2 J/cm2
    10 ms, 2 J/cm2
  • Noise Equivalent Power
    0.5 mW
  • Power Range
    10 mW - 4 W (standalone), 20 W (with a heat sink)
  • Noise Equivalent Energy
    20 mJ
  • Cooling
    Sensor Body
  • Connector Type
    DB15
  • Rise Time
    0.8 s
  • Linearity
    ±1 %
  • Calibration Uncertainty
    ±3 %
  • Repeatability
    ±0.5 %
  • Beam Size Dependence
    ±0.7 %
  • Detector Active Area
    1.13 cm2
  • Operating Temperature Range
    15°C to 35°C, <70% RH, non-condensing
  • Storage Temperature Range
    0°C to 50°C, <90% RH
  • Dimensions
    38 x 38 x 14 mm
  • Weight
    0.2 kg
  • RoHS
    Compliant
