Optical Power Meter, Economical Handheld, Laser Power & Energy

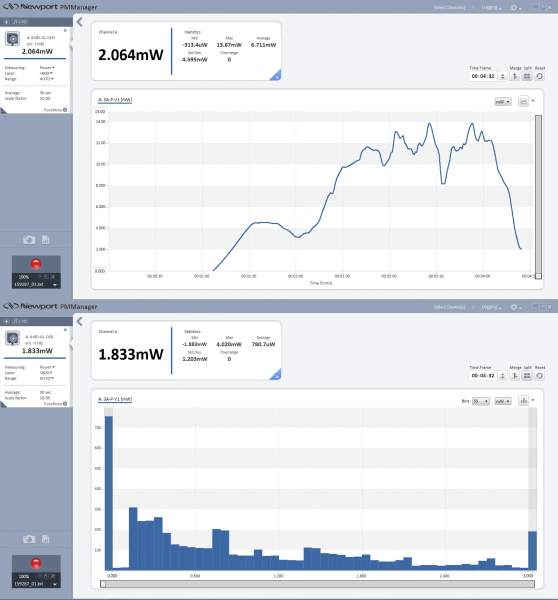

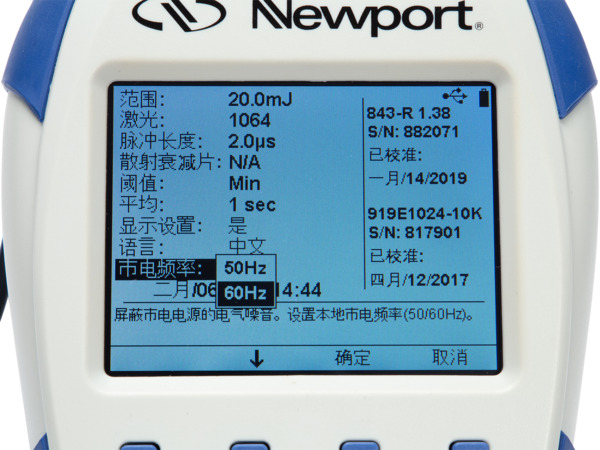

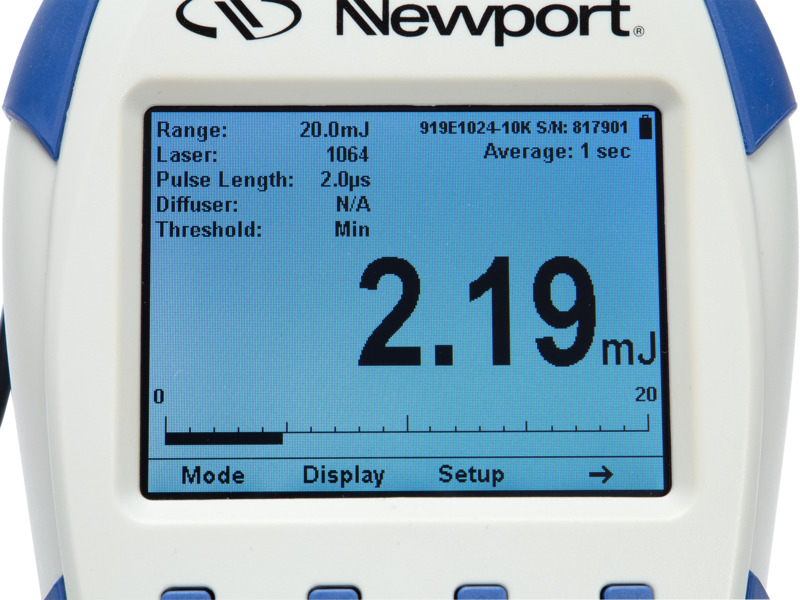

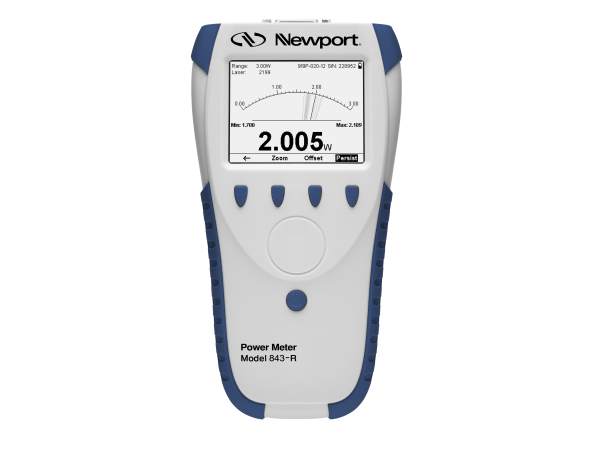

The 843-R-USB has the same performance as the 843-R, with the addition of USB communication to a PC. Install PMManager to use with the 843-R-USB, and your PC becomes a full optical power meter workstation. A COM object for system integrators, as well as a LabVIEW library are provided. The 843-R-USB low cost power meter is capable of measuring power level from pJ and pW to thousands of Watts, in an ergonomically designed compact body. All compatible detectors are hot swappable. 843-R-USB has two display modes: a large digital display with a bar graph or with a high resolution simulated analog needle. A simple configuration of the measurement parameters and hot-swappable capability allow the user take measurements quickly, even with multiple sensors.
The 843-R-USB includes a calibration certificate, a plastic case, 843-PS-UN, a convenient quick start guide, a USB cable, a 2.5 mm analog output connector and a PMManager quick installation guide.
Specifications
- Compatible DetectorsPhotodiode: 918D, 818-xx/DB, 819C/D, 818-MSCOPE, 818-RAD
Thermopile: 919P, PEPS
Pyroelectric: 919E, LIAD - Computer InterfacesUSB
- Sampling RatePhotodiode and Thermopile: 15 Hz
Pyroelectric: 500 Hz - Data Storagevia USB, no internal data storage
- Analog Output0-1 V into 100 Ω, mono audio 2.5 mm jack (included)
- Accuracy±0.25 % (Full Scale) ± 20 p A
- Power RequirementsDC 12 - 16 V, 1W
- BatteryRechargeable Li-ion Batteries
- Battery Life14 hours typical between charges
- Detector InputUp to 1.3 mA for Photodiode Sensors
- Display Mode15 mm numeric display. High resolution analog needle also can be chosen
- Display TypeHigh legibility TFT 320 x 240 pixel graphics LCD
- Display Refresh Rate15 Hz
- Photodiode MeasurementAverage power
- Thermopile MeasurementAverage power, single shot energy
- Pyroelectric MeasurementPulse energy (10 times per sec), average power
- Measurement Rate15 Hz
- Gain Ranges16 Ranges
- Resolution18 bits plus sign
- Dimensions213 x 113 x 40 mm
- Weight0.47 kg
- Operating Temperature15°C to 35°C, <70% RH, non-condensing
- Storage Temperature0°C to 50°C, <90% RH
- CECompliant
- RoHSCompliant
Resources & Downloads
3D Product Models
Manuals
843-R and 843-R-USB Power Meters Quick Reference(43.8 kB, PDF) 843-R and 843-R-USB Power Meters User Manual(921.4 kB, PDF) PMManager User's Manual 3.50(5.7 MB, PDF) PMManager User Manual rev 3.90-2(5.3 MB, PDF)
Software
843-R Field Upgrade Instructions(203.1 kB, PDF) 843-R Firmware Version 1.57(10.9 MB, ZIP)
Literature
843-R Series Power_Meter_Datasheet(1.4 MB, PDF) Understanding Total Measurement Uncertainty(649.3 kB, PDF)
Tutorials
2D Product Drawings
1919-R 843-R Dimensional Drawing.pdf(295 kB, PDF)
Other
CE Declaration 843-R 1919-R.pdf(381.7 kB, PDF) 843-R Handheld Power Mete RoHS Certificate.pdf(86.7 kB, PDF)
Technical Notes
Average and Peak Power Calculation(31.9 kB, PDF) A Shortcut for Calculating Power Density(35.2 kB, PDF)
