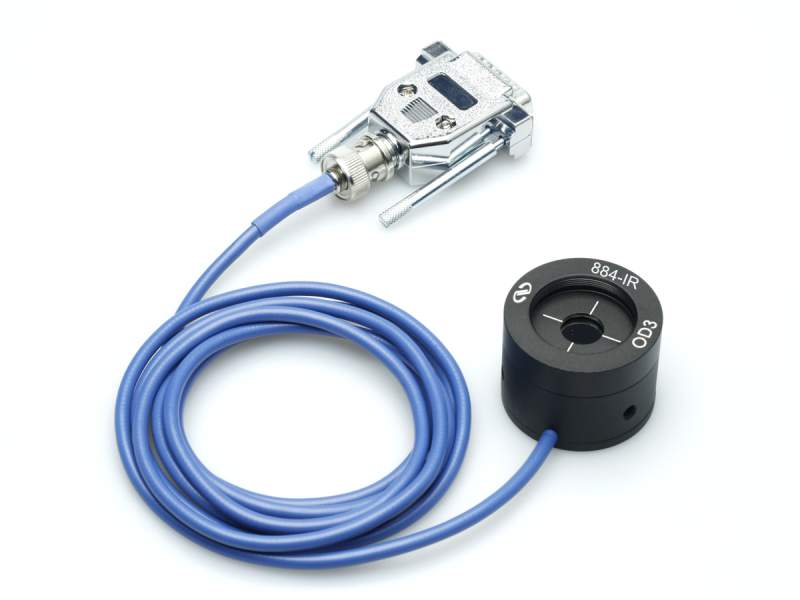

Optical Power Detector, UV Silicon, 200-1100nm, DB15 Calibration Module

Technical Specs

  • Detector Type
    Post Mounted
  • Detector Input
    Free Space
  • Detector Material
    UV Enhanced Silicon
  • Spectral Range
    200 - 1100 nm
  • Sensor Size
    Ø10 mm
  • Attenuator
    OD3, Threaded
  • Maximum Measurable Power
    1500 mW
  • Minimum Measurable Power
    20 pW
  • Maximum Measurable Power Without Attenuator
    5 mW (200 - 400 nm); 2.5 mW (400 - 600 nm, >1050 nm) , 1.5 mW (600 - 1050 nm)
  • Maximum Power Density
    30 W/cm2
  • Maximum Power Density without Attenuator
    0.2 W/cm2
  • Maximum Pulse Energy with Attenuator
    400 µJ
  • Maximum Pulse Energy Without Attenuator
    0.4 µJ
  • Calibration Module
    Removable DB15 Connector
  • Calibration Uncertainty without Attenuator
    ±4% @ 200-219nm
    ±2% @ 220-349nm
    ±1% @ 350-949nm
    ±4% @ 950-1100 nm
  • Calibration Uncertainty With Attenuator
    ±8% @ 200-219nm
    ±2% @ 220-349nm
    ±1% @ 350-949nm
    ±4% @ 950-1100nm
  • Linearity
    ±0.5 %
  • Uniformity
    ±2 % over Ø2 mm with attenuator, ±2 % over Ø4 mm without attenuator
  • Rise Time
    ≤2 µs
  • Clear Aperture
    10.3 mm
  • Connector Type
    DB15
  • Cable Length
    1.5 m
  • RoHS
    Compliant
