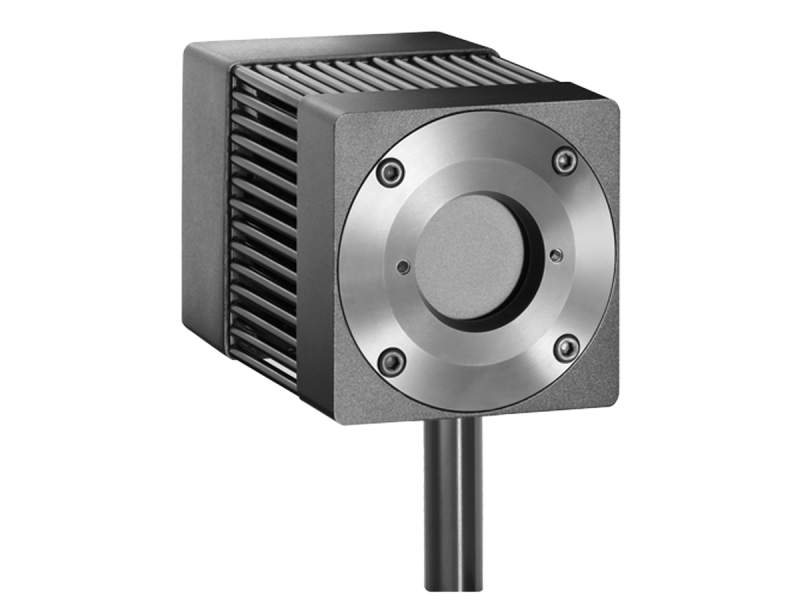

The 919P-150-26 Fan Cooled Thermopile Sensor is a general purpose thermal sensor measuring optical power up to 150 W. It's BB absorber type is spectrally flat and covers the wavelength range 190 nm to 11 µm. It has an active diameter of 26 mm and can measure continuous optical power from 50 mW to 150 W and single shot energy from 20 mJ to 100 J. It has a 1/4-20 tapped hole for post or plate mounting and includes a 2.25 inch long 1/2 inch diameter post with a 1/4-20 tapped hole on both ends.
Absorption over Broad Wavelength Range
The thermopile detector’s response to the input laser beam is characterized by its absorption. Newport thermopile sensors use four different types of coating in the sensors. The broadband BB type is employed in most of the 919P models and has an excellent absorption throughout the responsive wavelength range. The CM and SV types are used mainly with high repetition lasers with ultra-short pulses and have a relatively flat response.
The 919P sensors using BB and SV absorbers can measure wavelengths up to 11 µm, while the CM sensors can measure up to 9.4 µm.
The PF type has wavelength dependent response, and it is employed in the sensor 919P-050-18HP, which is specially designed for high energy density pulses and can measure up to 2.2 µm.
Extensively Tested for Damage Threshold vs. Pulse Width
The 919P series thermopile detectors have been extensively tested for the damage threshold with a variety of lasers. You can trust our specifications and have your mind at ease.
NIST Traceability
Each 919P thermopile sensor includes a DB15 connector and internal EEPROM for storing factory calibration data. Most sensors (BB) are calibrated at three different wavelengths at 532 nm, 1070 nm and 10.6 µm. Other sensor types (PF, CM and SV) use other or additional wavelengths for their calibration for example: 190, 248, 355, and 2100 nm. Calibration of the thermopile detectors is recommended annually to assure NIST traceability.
919P-26FAFiber Adapter Mounting Ring, 919P Series with 26 mm Active Diameter
UNIVERSAL
2 Weeks
$125
919P-FCOptical Fiber Adapter, FC/PC, 919P Series Thermopile Power Sensors
UNIVERSAL
6 Weeks
$194
919P-SMAFiber Adaptor, SMA, 919P Series Thermopile Power Sensors
UNIVERSAL
3 Weeks
$121
