Optical Power Meter Kit, 843-R, 818-UV/DB Sensor, 200-1100 nm, 1.5 W

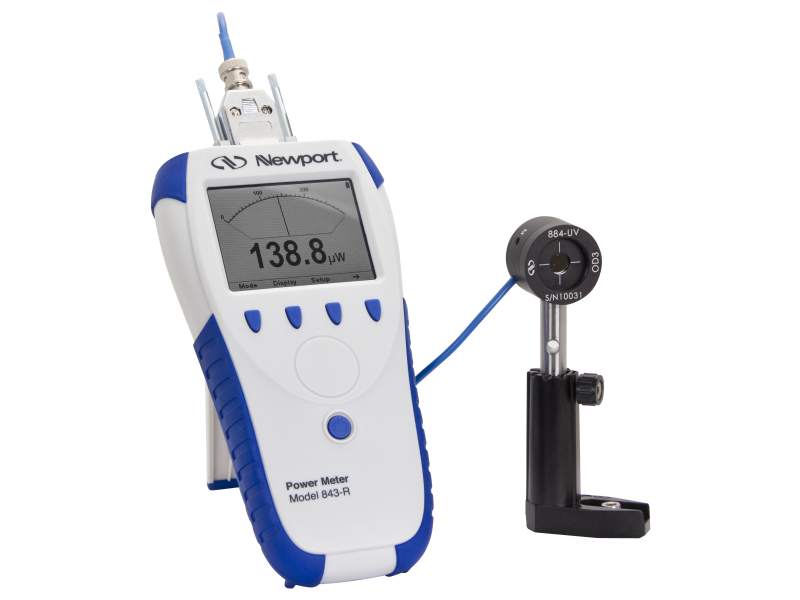

The PMKIT-05-01 can measure optical power level in the 200 - 1100 nm wavelength range. Power meter kits are especially useful for those who are new to optical measurements and who need simple measurement tools. Save big when purchased as a kit. The kit includes the following components:

Model optical power meter
Model UV Silicon photodiode detector
Post and post holder fork

For specifications, refer to individual product web pages. Please refer to our Optical Power Meter Selection Guide and Calibrated Detector Selection Guide to review the complete Newport offering.

Kits Offer Bundle Savings

These kits are ideal for those who are new to optical measurements and who need simple measurement tools. All kits include SP-3 and M-SP-3 mounting posts and BPH-3 slotted-base post holder. You can order a pre-configured kit.

Easily Expandable

It is easy to expand the capabilities of your power measurement products after purchasing the power meter kit. Thanks to the large number of compatible products available at Newport, you can simply purchase another detector, a meter, or optomechanical components as new requirements arise.

Specifications

Technical Specs

Detector Model
818-UV/DB
Power Meter Model
843-R
Spectral Range
200 - 1100 nm
Maximum Measurable Power
1.5 W
Maximum Measurable Power Without Attenuator
5 mW (200 - 400 nm); 2.5 mW (400 - 600 nm, >1050 nm) , 1.5 mW (600 - 1050 nm)
Sensor Size
Ø11.3 mm
Minimum Detectable Power
20 pW
Maximum Pulse Energy with Attenuator
400 µJ
Maximum Power Density without Attenuator
0.2 W/cm²

Maximum Pulse Energy Without Attenuator
0.4 µJ
Calibration Uncertainty without Attenuator
3.4% (220-300 nm)
1.65% (300-430 nm)
1.1% (430-1000 nm)
4.3% (1035-1065 nm)
Maximum Power Density
30 W/cm²
Accuracy
±0.25 % (Full Scale) ± 20 pA
Display Type
High legibility TFT 320 x 240 pixel graphics LCD
Sampling Rate
20 Hz

Detector Model
818-UV/DB
Power Meter Model
843-R
Spectral Range
200 - 1100 nm
Maximum Measurable Power
1.5 W
Maximum Measurable Power Without Attenuator
5 mW (200 - 400 nm); 2.5 mW (400 - 600 nm, >1050 nm) , 1.5 mW (600 - 1050 nm)
Sensor Size
Ø11.3 mm
Minimum Detectable Power
20 pW
Maximum Pulse Energy with Attenuator
400 µJ
Maximum Power Density without Attenuator
0.2 W/cm²

Maximum Pulse Energy Without Attenuator
0.4 µJ
Calibration Uncertainty without Attenuator
3.4% (220-300 nm)
1.65% (300-430 nm)
1.1% (430-1000 nm)
4.3% (1035-1065 nm)
Maximum Power Density
30 W/cm²
Accuracy
±0.25 % (Full Scale) ± 20 pA
Display Type
High legibility TFT 320 x 240 pixel graphics LCD
Sampling Rate
20 Hz
