  6. IDL280-Z20

Motorized Vertical Stage, Industrial Grade, 20 mm Travel

  • Travel Range
    20 mm
  • Minimum Incremental Motion
    0.10 µm
  • Maximum Speed
    5 mm/s

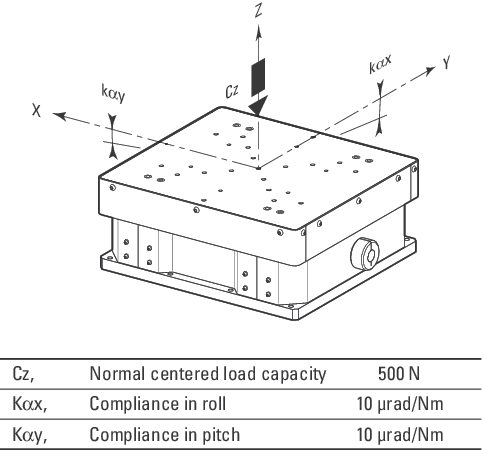

  • Centered Load Capacity
    500 N
  • Accuracy, Guaranteed
    ±2.0 µm
  • Bi-directional Repeatability, Guaranteed
    ±0.6 µm
  • Uni-directional Repeatability, Guaranteed
    ±0.1 µm
  • Encoder Resolution
    0.05 µm
  • Origin Repeatability
    ±0.5 µm
  • Connectors
    DB25M
  • Pitch, Guaranteed
    ±50 µrad
  • Compliance in Pitch
    10 µrad/ Nm
  • Compliance in Roll
    10 µrad/ Nm
  • Cable Length
    3 m
  • Weight
    14.5 kg
  • MTBF
    20,000 h (25% load, 30% duty cycle)
  • Compliance
    RoHS 3, CE
