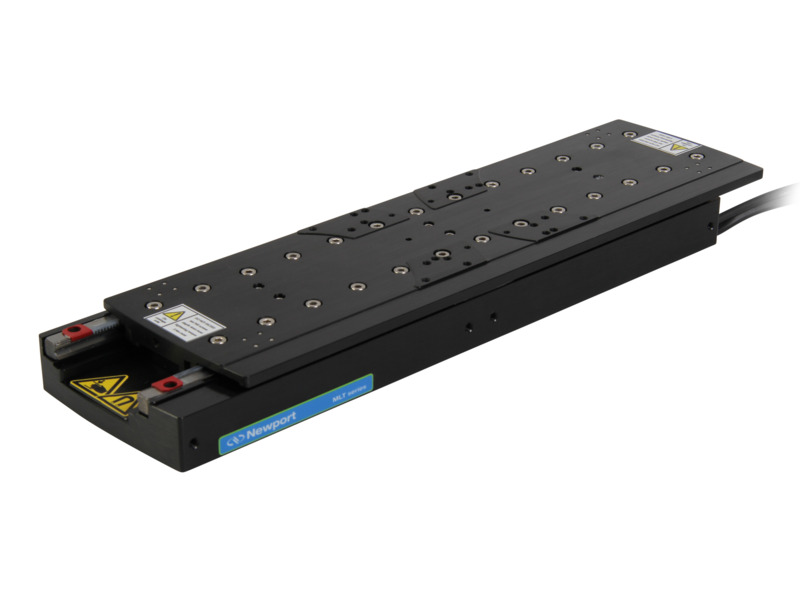

MLT Linear Motor Stage

Compare	Model	Compatibility	rankScore		Travel Range	Availability	Price	Brand

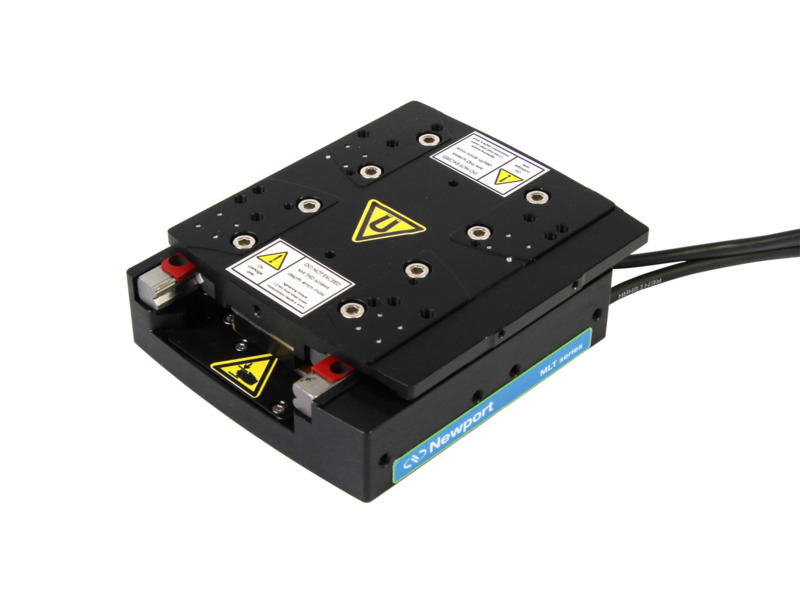

MLT25 Motorized Linear Stage, 25 mm Travel, Linear Motor, 50 N Load, M4 $5,165 In Stock	MLT25 Motorized Linear Stage, 25 mm Travel, Linear Motor, 50 N Load, M4	METRIC	1.0	1.0	25 mm	In Stock	$5,165	Newport

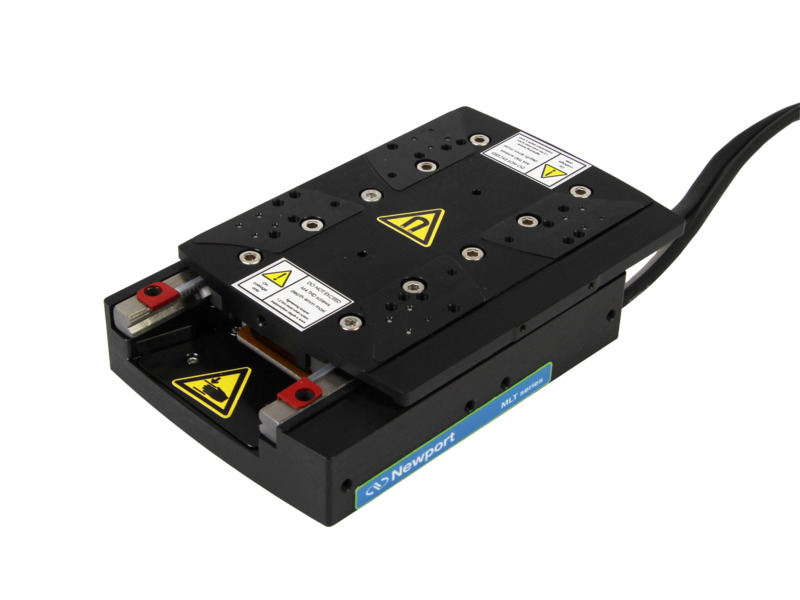

MLT50 Motorized Linear Stage, 50 mm Travel, Linear Motor, 70 N Load, M4 $5,563 3 Weeks	MLT50 Motorized Linear Stage, 50 mm Travel, Linear Motor, 70 N Load, M4	METRIC	1.0	2.0	50 mm	3 Weeks	$5,563	Newport

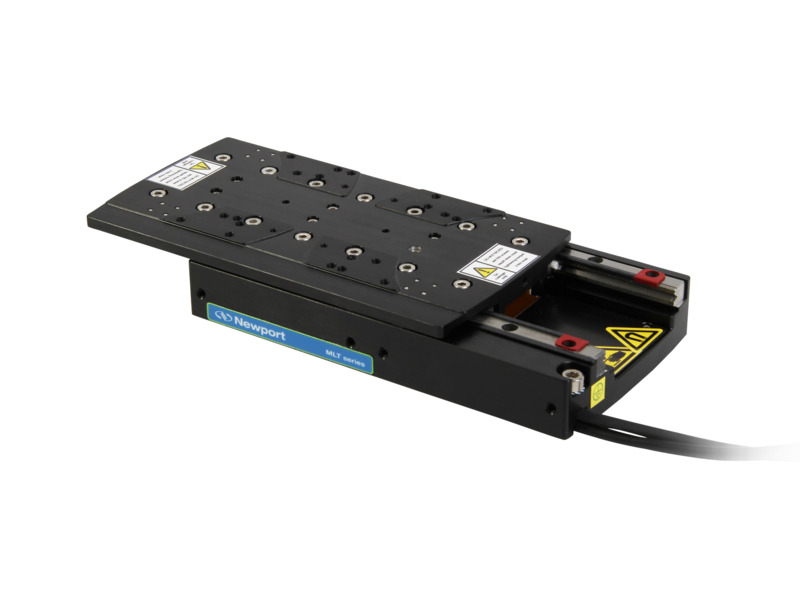

MLT100 Motorized Linear Stage, 100 mm Travel, Linear Motor, 70 N Load, M4 $5,955 In Stock	MLT100 Motorized Linear Stage, 100 mm Travel, Linear Motor, 70 N Load, M4	METRIC	1.0	3.0	100 mm	In Stock	$5,955	Newport
MLT200 Motorized Linear Stage, 200 mm Travel, Linear Motor, 70 N Load, M4 $7,890 In Stock	MLT200 Motorized Linear Stage, 200 mm Travel, Linear Motor, 70 N Load, M4	METRIC	1.0	4.0	200 mm	In Stock	$7,890	Newport

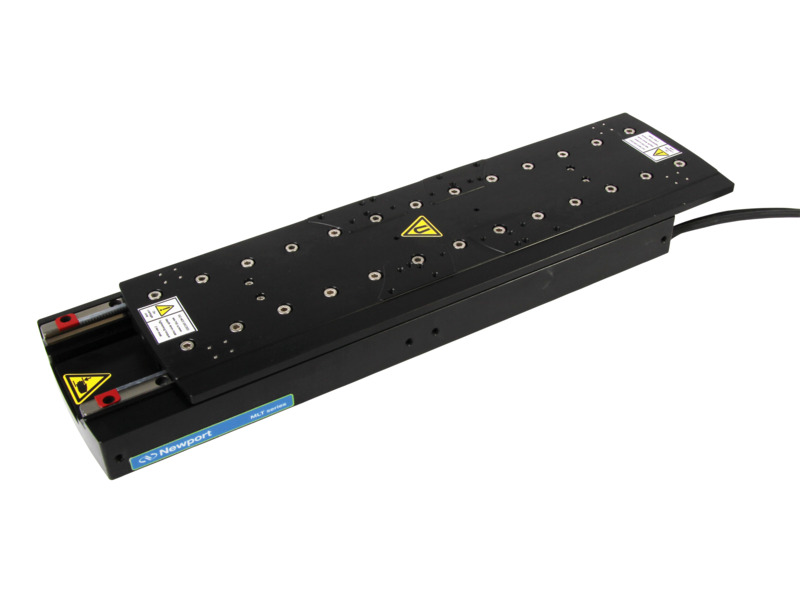

MLT250 Motorized Linear Stage, 250 mm Travel, Linear Motor, 70 N Load, M4 $9,139 5 Weeks	MLT250 Motorized Linear Stage, 250 mm Travel, Linear Motor, 70 N Load, M4	METRIC	1.0	5.0	250 mm	5 Weeks	$9,139	Newport
MLT25-XYZR Motorized XYZ Stage, 25 mm Travel, Linear Motor, Right Handed $19,166 5 Weeks	MLT25-XYZR Motorized XYZ Stage, 25 mm Travel, Linear Motor, Right Handed	METRIC	1.0	6.0	25 mm	5 Weeks	$19,166	Newport
MLT25-XYZL Motorized XYZ Stage, 25 mm Travel, Linear Motor, Left Handed $19,166 5 Weeks	MLT25-XYZL Motorized XYZ Stage, 25 mm Travel, Linear Motor, Left Handed	METRIC	1.0	7.0	25 mm	5 Weeks	$19,166	Newport
MLT50-XYZL Motorized XYZ Stage, 50 mm Travel, Linear Motor, Left Handed $21,342 4 Weeks	MLT50-XYZL Motorized XYZ Stage, 50 mm Travel, Linear Motor, Left Handed	METRIC	1.0	8.0	50 mm	4 Weeks	$21,342	Newport

Show All

Specifications

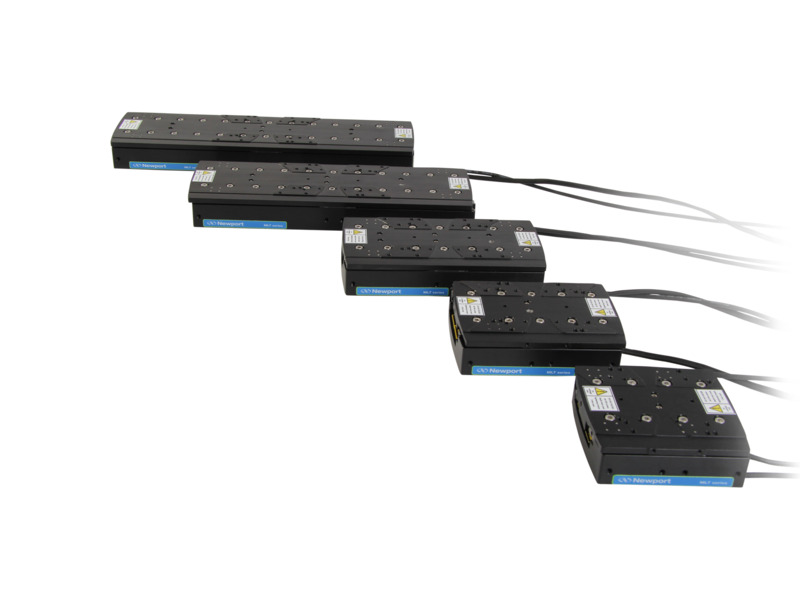

Models	MLT25	MLT50	MLT100	MLT200	MLT250
Travel Range	25 mm	50 mm	100 mm	200 mm	250 mm
Maximum Speed	500 mm/s	500 mm/s	500 mm/s	500 mm/s	500 mm/s
Minimum Incremental Motion	5 nm	5 nm	5 nm	5 nm	5 nm
Maximum Acceleration	0.75 g	0.75 g	0.75 g	0.5 g	0.5 g
Maximum Continuous Force	3 N	3 N	3 N	3 N	3 N
Centered Load Capacity	50 N	70 N	70 N	70 N	70 N
Accuracy, Guaranteed	±0.5 µm	±0.7 µm	±1.25 µm	±2.5 µm	±3 µm
Bi-directional Repeatability, Guaranteed	±0.15 µm	±0.15 µm	±0.15 µm	±0.15 µm	±0.15 µm
Flatness, Guaranteed	±1 µm	±2 µm	±3 µm	±5 µm	±10 µm
Straightness, Guaranteed	±1 µm	±2 µm	±3 µm	±5 µm	±5 µm
Pitch, Guaranteed	±50 µrad	±75 µrad	±75 µrad	±150 µrad	±200 µrad
Yaw, Guaranteed	±50 µrad	±75 µrad	±75 µrad	±125 µrad	±150 µrad
Drive Type	Linear Motor	Linear Motor	Linear Motor	Linear Motor	Linear Motor
Thread Type	M4	M4	M4	M4	M4
Weight	1.5 kg	1.7 kg	2.1 kg	3.1 kg	3.6 kg
MTBF	20,000 h (100% load, 60% duty cycle)	20,000 h (100% load, 60% duty cycle)	20,000 h (100% load, 60% duty cycle)	20,000 h (100% load, 60% duty cycle)	20,000 h (100% load, 60% duty cycle)
Compliance	RoHS 3, CE	RoHS 3, CE	RoHS 3, CE	RoHS 3, CE	RoHS 3, CE

Specifications

Models	MLT25	MLT50	MLT100	MLT200	MLT250
Travel Range	25 mm	50 mm	100 mm	200 mm	250 mm
Maximum Speed	500 mm/s	500 mm/s	500 mm/s	500 mm/s	500 mm/s
Minimum Incremental Motion	5 nm	5 nm	5 nm	5 nm	5 nm
Maximum Acceleration	0.75 g	0.75 g	0.75 g	0.5 g	0.5 g
Maximum Continuous Force	3 N	3 N	3 N	3 N	3 N
Centered Load Capacity	50 N	70 N	70 N	70 N	70 N
Accuracy, Guaranteed	±0.5 µm	±0.7 µm	±1.25 µm	±2.5 µm	±3 µm
Bi-directional Repeatability, Guaranteed	±0.15 µm	±0.15 µm	±0.15 µm	±0.15 µm	±0.15 µm
Flatness, Guaranteed	±1 µm	±2 µm	±3 µm	±5 µm	±10 µm
Straightness, Guaranteed	±1 µm	±2 µm	±3 µm	±5 µm	±5 µm
Pitch, Guaranteed	±50 µrad	±75 µrad	±75 µrad	±150 µrad	±200 µrad
Yaw, Guaranteed	±50 µrad	±75 µrad	±75 µrad	±125 µrad	±150 µrad
Drive Type	Linear Motor	Linear Motor	Linear Motor	Linear Motor	Linear Motor
Thread Type	M4	M4	M4	M4	M4
Weight	1.5 kg	1.7 kg	2.1 kg	3.1 kg	3.6 kg
MTBF	20,000 h (100% load, 60% duty cycle)	20,000 h (100% load, 60% duty cycle)	20,000 h (100% load, 60% duty cycle)	20,000 h (100% load, 60% duty cycle)	20,000 h (100% load, 60% duty cycle)
Compliance	RoHS 3, CE	RoHS 3, CE	RoHS 3, CE	RoHS 3, CE	RoHS 3, CE

Features

Reliable Design

Built with high strength aluminum alloy, the base of each MLT stage is optimized with Finite Element Method (FEM) for highest rigidity and best thermal performance. Select components like long life and high load crossed roller bearings, high force linear motors and high precision linear encoders are added with not only performance, but also reliability in mind. Built in limit switches prevent over travel and collision. Significant tests were conducted to ensure the high reliability performance of the MLT.

Ironless Motor

MLT series stages are equipped with MKS designed ironless motors that include hall effect sensors and thermistor in a very compact size. Compared to iron core motors, the main advantage of ironless motors is better speed stability (no cogging) and shorter settling time, which is critical for fiber alignment applications.

Low Cost of Ownership

MLT series compact, low profile and fast stages utilize less space, operate with higher accelerations and speeds, reducing operating costs. Also, due to their high reliability design they require low initial investment and need less maintenance.

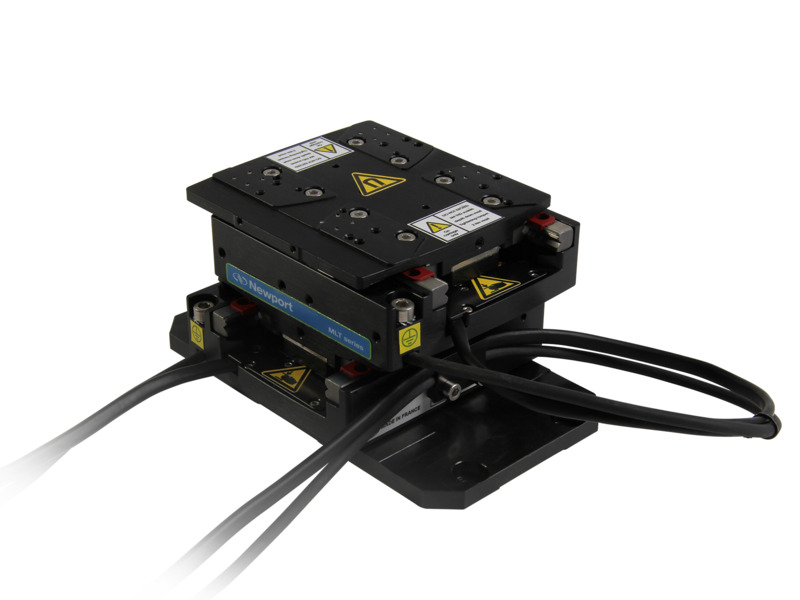

XY and XYZ Configurations

The MLT can be built into XY and XYZ stacks utilizing the available mounting holes. A magnetic shield MLT-XYPLATE is required between the X and Y stages. Cable chains can also be supplied as needed. Pre-assembled XYZ stacks are available in the short travel ranges. The MLT-Z stage features a magnetic counterweight to accommodate a range of vertical loads, while maintaining excellent positioning performance.

Plug and Play ESP Compatible

The MLT is compatible with XPS series standard MKS controllers that support plug and play ESP technology, making startup really easy without the need for complex driver configuration. (Note that for XY configurations, manual parameter setting is required.)

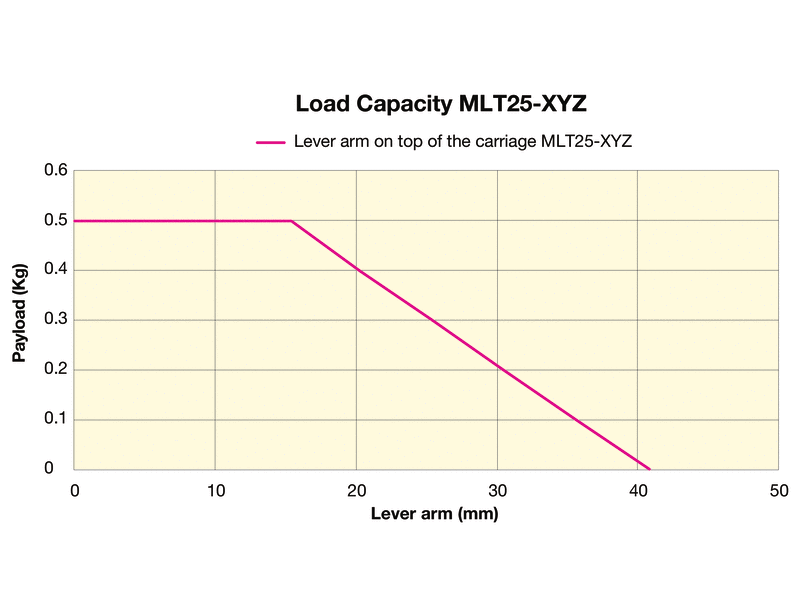

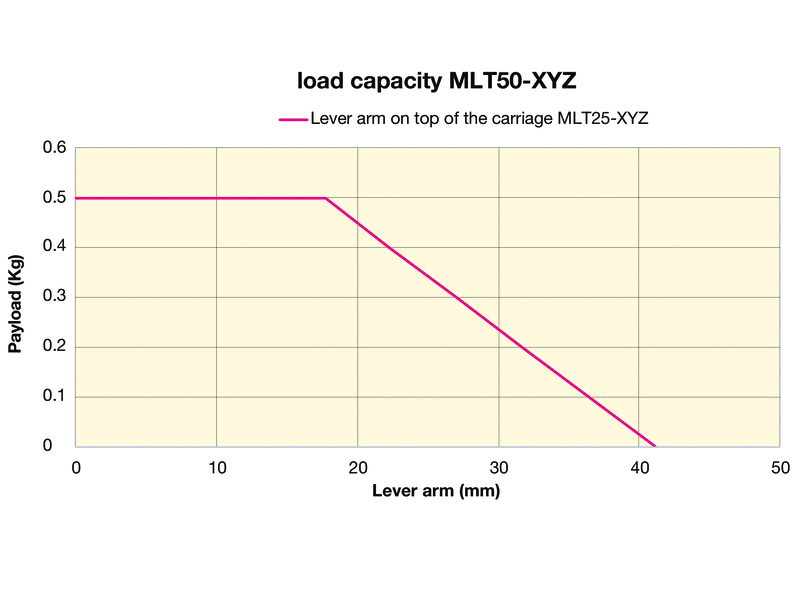

Load Characteristics

NOTE: Please reference MLT Manual page 5 (15 of 38) for graphs and detailed load information.

Features

Reliable Design

Ironless Motor

Low Cost of Ownership

XY and XYZ Configurations

Plug and Play ESP Compatible

Load Characteristics

NOTE: Please reference MLT Manual page 5 (15 of 38) for graphs and detailed load information.

Compatible Controllers

Compatible motion controllers for these XM series linear motor/direct drive driven stages are:

XPS-RLD Motion Controller (2 or 4 Axis): Requires an XPS-DRV11 Driver Module.
XPS-D Motion Controller (2, 4, 6 or 8 Axis): Requires an XPS-DRV11 Driver Module.

See our Stage-Controller Compatibility technical note for complete stages and controllers compatibility.

Compatible Controllers

Compatible motion controllers for these XM series linear motor/direct drive driven stages are:

XPS-RLD Motion Controller (2 or 4 Axis): Requires an XPS-DRV11 Driver Module.
XPS-D Motion Controller (2, 4, 6 or 8 Axis): Requires an XPS-DRV11 Driver Module.

See our Stage-Controller Compatibility technical note for complete stages and controllers compatibility.

Accessories

Description	Compatibility	Avail.	Price
MLT-BP ¹ Base Plate, MLT Series Linear Stages	METRIC	9 Weeks	$324
MLT-XYPLATE Magnetic Barrier Plate, MLT Series Linear Stages	UNIVERSAL	3 Weeks	$115
MLT-CML Cable Chain Kit, MLT200 and MLT250	UNIVERSAL	12 Weeks	$355
MLT-CMS Cable Chain Kit, MLT25, MLT50 and MLT100	UNIVERSAL	3 Weeks	$165
TR-M4M6-10 Thread Adaptor, M6 Male to M4 Female, pack of 10	UNIVERSAL	In Stock	$54

Notes:

Fits: MLT25, MLT50 & MLT100

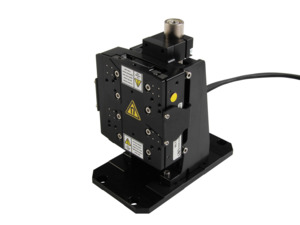

MLT Series Vertical Stage

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		MLT25-Z Motorized Vertical Stage, 25 mm Travel, Linear Motor, 5 N Load	METRIC		4 Weeks	$7,787
		MLT50-Z Motorized Vertical Stage, 50 mm Travel, Linear Motor, 5 N Load	METRIC		4 Weeks	$8,467
