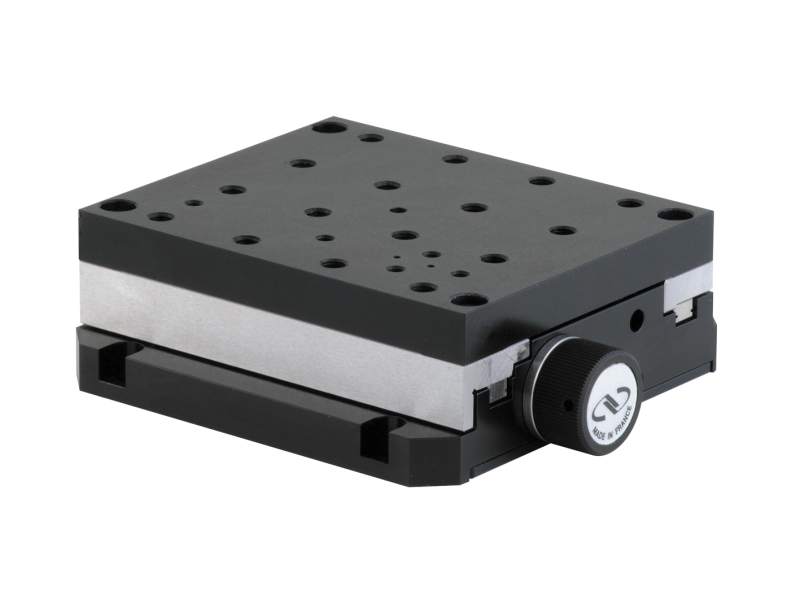

compact motorized linear stage model vp-25xa

Overview

With an aluminum body in a compact package, the VP Series 25-mm travel stages deliver exceptional minimum incremental motion (MIM) and position stability. These stages also feature recirculating ball bearings, a backlash-free ball screw and a linear steel scale encoder. Applications include: fiber alignment, bio-medical, semiconductor and high precision test and measurement.

Highly sensitive 10-nm or 100-nm minimum incremental motion
Low-profile, compact and lightweight
Easy to construct XY and XYZ assemblies
Convenient manual adjustment knob
Plug and Play – ESP compatible
Built-in linear encoder for highly repeatable and precise motion

See All Features

Products

Compare	Model	Compatibility	rankScore		Motorized Axes	Minimum Incremental Motion	Thread Type	Availability	Price	Brand
VP-25XL Motorized Linear Stage, 25 mm Travel, 10 nm MIM, DC Servo, Tachometer $8,167 9 Weeks	VP-25XL Motorized Linear Stage, 25 mm Travel, 10 nm MIM, DC Servo, Tachometer	IMPERIAL	1.0	1.0	X	10 nm	8-32 and 1/4-20	9 Weeks	$8,167	Newport
VP-25XL-XYZR Motorized XYZ Linear Stage, 25 mm Travel, 10 nm MIM, DC Servo, Tachometer $25,840 In Stock	VP-25XL-XYZR Motorized XYZ Linear Stage, 25 mm Travel, 10 nm MIM, DC Servo, Tachometer	IMPERIAL	1.0	2.0	XYZ	10 nm	4-40, 8-32 and 1/4-20	In Stock	$25,840	Newport
VP-25XL-XYZL XYZ Linear Stage, 25 mm Travel, 10 nm MIM, DC Servo, Tachometer, Left-handed $25,840 In Stock	VP-25XL-XYZL XYZ Linear Stage, 25 mm Travel, 10 nm MIM, DC Servo, Tachometer, Left-handed	IMPERIAL	1.0	3.0	XYZ	10 nm	4-40, 8-32 and 1/4-20	In Stock	$25,840	Newport
VP-25XA Motorized Linear Stage, 25 mm Travel, 100 nm MIM, DC Servo, Tachometer $6,875 In Stock	VP-25XA Motorized Linear Stage, 25 mm Travel, 100 nm MIM, DC Servo, Tachometer	IMPERIAL	1.0	4.0	X	100 nm	8-32 and 1/4-20	In Stock	$6,875	Newport
VP-25XA-XYZR Motorized XYZ Linear Stage, 25 mm Travel, 100 nm MIM, DC Servo, Tachometer $22,402 3 Weeks	VP-25XA-XYZR Motorized XYZ Linear Stage, 25 mm Travel, 100 nm MIM, DC Servo, Tachometer	IMPERIAL	1.0	5.0	XYZ	100 nm	4-40, 8-32 and 1/4-20	3 Weeks	$22,402	Newport
VP-25XA-XYZL XYZ Linear Stage, 25 mm, 100 nm MIM, DC Servo, Tachometer, Left-handed $22,402 In Stock	VP-25XA-XYZL XYZ Linear Stage, 25 mm, 100 nm MIM, DC Servo, Tachometer, Left-handed	IMPERIAL	1.0	6.0	XYZ	100 nm	4-40, 8-32 and 1/4-20	In Stock	$22,402	Newport
M-VP-25XL Motorized Linear Stage, 25 mm Travel, 10 nm MIM, DC Servo with Tach, Metric $8,167 In Stock	M-VP-25XL Motorized Linear Stage, 25 mm Travel, 10 nm MIM, DC Servo with Tach, Metric	METRIC	1.0	7.0	X	10 nm	M4 and M6	In Stock	$8,167	Newport
M-VP-25XL-XYZR Motorized XYZ Linear Stage, 25 mm, 10 nm MIM, DC Servo, Tach, Metric $25,840 In Stock	M-VP-25XL-XYZR Motorized XYZ Linear Stage, 25 mm, 10 nm MIM, DC Servo, Tach, Metric	METRIC	1.0	8.0	XYZ	10 nm	M3, M4, and M6	In Stock	$25,840	Newport
M-VP-25XL-XYZL XYZ Linear Stage, 25 mm, 10 nm MIM, DC Servo, Tach, Metric, Left-handed $25,840 3 Weeks	M-VP-25XL-XYZL XYZ Linear Stage, 25 mm, 10 nm MIM, DC Servo, Tach, Metric, Left-handed	METRIC	1.0	9.0	XYZ	10 nm	M3, M4, and M6	3 Weeks	$25,840	Newport
M-VP-25XA Motorized Linear Stage, 25 mm Travel, 100 nm MIM, DC Servo with Tach, Metric $6,875 In Stock	M-VP-25XA Motorized Linear Stage, 25 mm Travel, 100 nm MIM, DC Servo with Tach, Metric	METRIC	1.0	10.0	X	100 nm	M4 and M6	In Stock	$6,875	Newport
M-VP-25XA-XYZR Motorized XYZ Linear Stage, 25 mm, 100 nm MIM, DC Servo, Tach, Metric $22,402 9 Weeks	M-VP-25XA-XYZR Motorized XYZ Linear Stage, 25 mm, 100 nm MIM, DC Servo, Tach, Metric	METRIC	1.0	11.0	XYZ	100 nm	M3, M4, and M6	9 Weeks	$22,402	Newport
M-VP-25XA-XYZL XYZ Linear Stage, 25 mm, 100 nm MIM, DC Servo, Tach, Metric, Left-handed $22,402 9 Weeks	M-VP-25XA-XYZL XYZ Linear Stage, 25 mm, 100 nm MIM, DC Servo, Tach, Metric, Left-handed	METRIC	1.0	12.0	XYZ	100 nm	M3, M4, and M6	9 Weeks	$22,402	Newport

Show All

Specifications

Models	VP-25XA	VP-25XL	VP-25XA-XYZR	VP-25XL-XYZR
Motorized Axes	X	X	XYZ	XYZ
Travel Range	25 mm	25 mm	25 mm	25 mm
Maximum Speed	25 mm/s	25 mm/s	25 mm/s	25 mm/s
Minimum Incremental Motion	100 nm	10 nm	100 nm	10 nm
Centered Load Capacity	60 N	60 N	35 N	35 N
Axial Load Capacity (+Cx)	40 N	40 N	40 N	40 N
Inverse Axial Load Capacity (-Cx)	-40 N	-40 N	-40 N	-40 N
Accuracy, Typical	±0.4 µm	±0.5 µm	±0.4 µm	±0.5 µm
Accuracy, Guaranteed	±1.0 µm	±1.0 µm	±1.0 µm	±1.0 µm
Bi-directional Repeatability, Typical	±0.06 µm	±0.05 µm	±0.06 µm	±0.05 µm
Bi-directional Repeatability, Guaranteed	±0.10 µm	±0.07 µm	±0.10 µm	±0.07 µm
Pitch, Typical	±22 µrad	±20 µrad	±22 µrad	±20 µrad
Pitch, Guaranteed	±50 µrad	±50 µrad	±50 µrad	±50 µrad
Compliance in Pitch	20 µrad/Nm	20 µrad/Nm	20 µrad/Nm	20 µrad/Nm
Yaw, Typical	±17 µrad	±20 µrad	±17 µrad	±20 µrad
Yaw, Guaranteed	±50 µrad	±50 µrad	±50 µrad	±50 µrad
Compliance in Yaw	30 µrad/Nm	30 µrad/Nm	30 µrad/Nm	30 µrad/Nm
Cable Length	1.5 m	3 m	1.5 m	3 m
Thread Type ¹	8-32 and 1/4-20	8-32 and 1/4-20	4-40, 8-32 and 1/4-20	4-40, 8-32 and 1/4-20
Orientation ²			Right-Handed	Right-Handed
Weight	1.5 kg	1.5 kg	5 kg	5 kg

Notes:

M- versions have metric threaded mounting holes
XYZ stages are also available in left-handed configuration (-XYZL models).

Features

Backlash-free Ballscrew

The VP includes a preloaded, backlash-free ball screw, which provides smooth motion and outstanding bi-directional repeatability.

XYZ Configuration

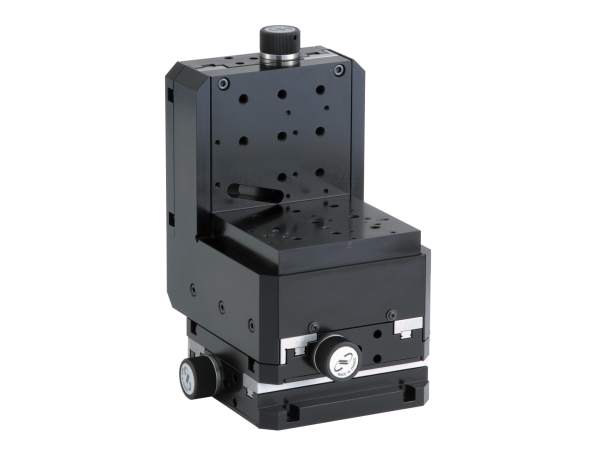

The VP stages can be easily stacked into XY configurations or XYZ configurations using the VP-BK (M-VP-BK) bracket. The VP stages conveniently come with either imperial or metric hole patterns.

Micro-positioning

The VP-25XL series features a linear steel scale encoder ensuring positioning with accuracy of ±1 µm is possible when commanded by the XPS advanced motion control system.

DC Motor for Smooth, High Speed Motion

DC Motors are best characterized by their high speeds, smooth motion, good efficiency and a high power/weight ratio. Precise closed-loop servo positioning and speed control on these VP stages is achieved with a built-in linear encoder and included tachometer. A manual adjustment knob also adds to the utility of these stages.

End-of-Run Limit Switches

The stage contains end-of-run limit switches on both ends to prevent damage to the stage from over-travel.

Metrology Report Included at No Additional Cost

Newport guarantees specification values which are measured and recorded following ASME B5.57 and ISO 230-2 standards. The typical performance values are two times better than the guaranteed specifications.

Error Mapping Services

For critical positioning applications, Newport offers error mapping upon request for VP-25XL stages driven by our XPS advanced motion controller. We will measure, implement, and verify the results of this error map that will individually optimize each stage's position accuracy. In addition, multi-axis error mapping is also available. Measurements are made at 20.0 ±0.2 °C. A certificate of calibration will be provided with your stage. Actual data may also be provided upon request.

VP Series Stage Horizontal Load Characteristics

VP Series Stage Vertical Load Characteristics

Compatible motion controllers for the VP-25XA stages are:

XPS-RLD Motion Controller (2 or 4 Axis): Requires an XPS-DRV11 Driver Module.
XPS-D Motion Controller (2, 4, 6 or 8 Axis): Requires an XPS-DRV11 Driver Module.
ESP302 Motion Controller (1, 2, or 3 Axis): Plug and Play compatible with ESP302 Motion Controller.
SMC100CC Single Axis Motion Controller.

Compatible motion controllers for the VP-25XL stages are:

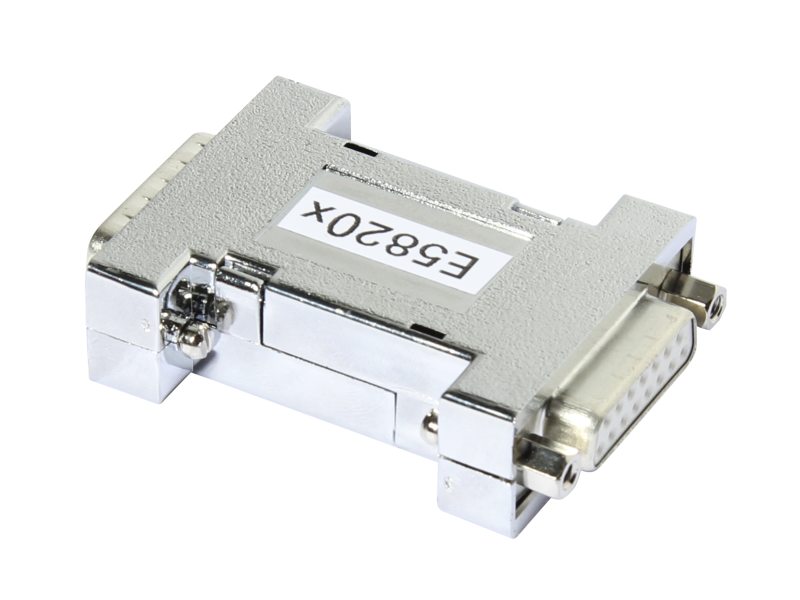

XPS-RLD Motion Controller (2 or 4 Axis): Requires an XPS-DRV03 Driver Module and a E5820A Encoder Adapter.
XPS-D Motion Controller (2, 4, 6 or 8 Axis): Requires an XPS-DRV03 Driver Module and a E5820A Encoder Adapter.

Accessories

Mounting Accessories

Description	Compatibility	Avail.	Price
562-RAIL-3.7 Dovetail Rail, ULTRAlign Series, 3.7 in. Length	UNIVERSAL	In Stock	$165
561-RAIL-1 Dovetail Rail, ULTRAlign Series, 1.0 in. Length	UNIVERSAL	In Stock	$135
VP-BK Multi-Axis Bracket, VP-25X Linear Stages	IMPERIAL	In Stock	$1,352
M-VP-BK Multi-Axis Bracket, M-VP-25X Linear Stages, Metric	METRIC	In Stock	$1,352
VP-BC Base Clamp Set, VP Series Stages, Set of Four	UNIVERSAL	In Stock	$488
VP-BP Universal Base Plate, VP Series Stages	UNIVERSAL	In Stock	$274
