Dovetail Rail, ULTRAlign Series, 1.0 in. Length

Dovetail Rail, ULTRAlign Series, 1.0 in. Length

Model: 561-RAIL-1

$135

In Stock

Compare

Add to List

Product Series Overview

ULTRAlign Fiber Alignment Accessories

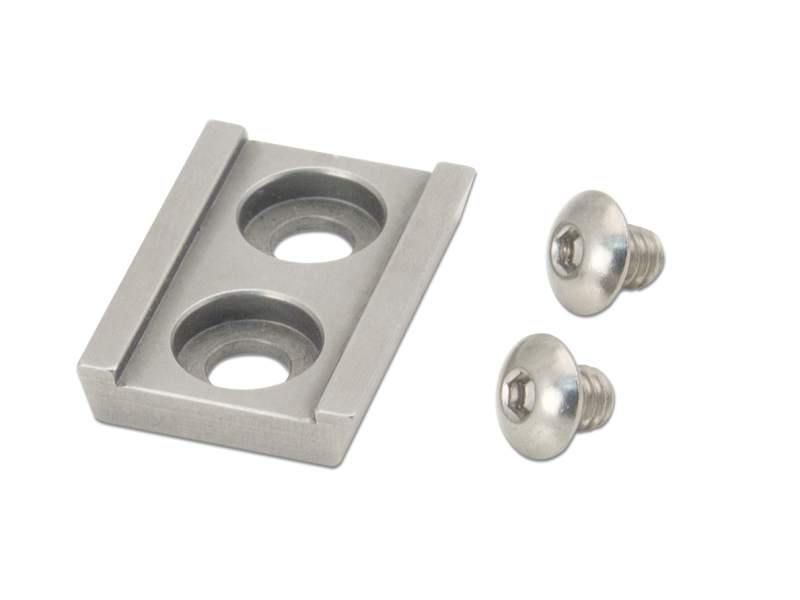

The 561-RAIL-1 is a 1.0 in. long dovetail rail that attaches to 561-GON stage. It comes with two imperial and two metric screws for mounting.

Specifications

Technical Specs

Material

Steel

Material

Steel

Resources & Downloads

Other

561-RAIL-1_RoHS2021.pdf (690.8 kB, PDF)

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

561-RAIL-1 DWG.pdf (93.8 kB, PDF)
