Objective Lens Mount, 561 Series

ULTRAlign Fiber Alignment Accessories

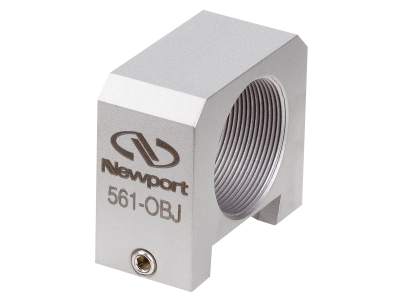

The 561-OBJ Objective Lens Mount can mount microscope and laser diode objective lenses to a 561 Series stage. The mount uses a standard 0.800-36 RMS thread.

Specifications

Technical Specs

Material
Steel

Material
Steel

Resources & Downloads

3D Product Models

Download CAD Files

2D Product Drawings

561-OBJ-S(74.6 kB, PDF)

Other

561-OBJ_RoHS2021.pdf(684.4 kB, PDF)
