Compare Model Drawings, CAD & Specs Availability Price
Bare Fiber Holder, 125 µm Fibers, 561 Series
$295
In Stock
In Stock
Fiber Chuck Holder, 0.25 inch, 561 Series
$130
In Stock
In Stock
Fiber Chuck Rotation Mount, 561 Series
$118
In Stock
In Stock
Gimbal Fiber Chuck Positioner, 561 Series, 3 Rotation Axis
$558
In Stock
In Stock
Connectorized Fiber Holder, FC, 561 Series
$181
In Stock
In Stock
Connectorized Fiber Holder, SC, 561 Series
$181
In Stock
In Stock
Connectorized Fiber Holder, LC, 561 Series
$181
In Stock
In Stock
Connectorized Fiber Holder, SMA, Rotation, 561 Series
$323
In Stock
In Stock
Connectorized Fiber Holder, FC, Rotation, 561 Series
$323
In Stock
In Stock
Connectorized Fiber Holder, ST, Rotation, 561 Series
$323
2 Weeks
2 Weeks
Connectorized Fiber Holder, SC, Rotation, 561 Series
$312
In Stock
In Stock
Mounting Kit, Photonic Crystal Fiber, 561 Series
$262
In Stock
In Stock
Optical Fiber Mount, Photonic Crystal Fiber, 561 Series
$262
In Stock
In Stock
V-Block, Photonic Crystal Fiber, 561 Series
$56
In Stock
In Stock
Optical Module Mount, 561 Series
$169
In Stock
In Stock
V-Groove Module, 1–1.75 mm
$70
In Stock
In Stock
V-Groove Module, 2–2.75 mm
$70
In Stock
In Stock
V-Groove Module, 3 & 3.25 mm
$70
In Stock
In Stock
Ball Lens Module, 1 mm, 561 Series
$70
In Stock
In Stock
Ball Lens Module, 2 mm, 561 Series
$70
In Stock
In Stock
Ball Lens Module, 3 mm, 561 Series
$70
In Stock
In Stock
Lens Mount, Gradient Index (GRIN), 561 Series
$174
In Stock
In Stock
Blank, GRIN Lens Mount, 561 Series
$146
In Stock
In Stock
Objective Lens Mount, 561 Series
$130
In Stock
In Stock
Blank, Objective Lens Mount
$113
In Stock
In Stock
Vacuum Waveguide Mount, 561 Series
$357
In Stock
In Stock
Universal Module, 561/562 Rail
$90
5 Weeks
5 Weeks
Universal Module, Metric
$90
In Stock
In Stock
Fixed Platform, Universal Stand, 561 Series
$283
In Stock
In Stock
Fixed Platform, Universal Stand, 562 Series
$265
In Stock
In Stock
Fixed Platform, Narrow Profile T-Stand, 561 Series
$277
In Stock
In Stock
Fixed Platform, Narrow Profile T-Stand, 562 Series
$265
In Stock
In Stock
Adaptor, Raises 561 Stage to 562 Height, 0.75 in.
$48
In Stock
In Stock
Dovetail Rail, ULTRAlign Series, 1.0 in. Length
$100
In Stock
In Stock
Dovetail Rail, ULTRAlign Series, 2.6 in. Length
Dovetail Rail, ULTRAlign Series, 3.7 in. Length
$125
In Stock
In Stock

Features

Bare Fiber Holder

Our bare fiber holder 561-FH offers an improved design for 125 µm diameter bare fibers. The fiber is gently held in precision V-groove.

Fiber Chuck Holder

Our fiber chuck holder 561-FC is designed to hold 0.25 in. (6.35 mm) diameter fiber chucks. It mounts all Newport Fiber Chucks and Holders.

Fiber Chuck Rotation Mount

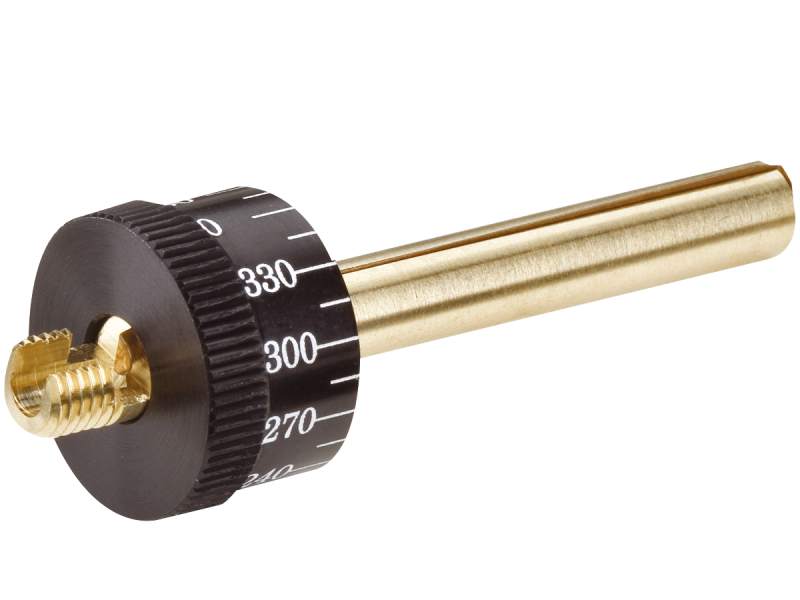

Our fiber chuck rotation mount 561-RFC is designed to hold 0.25 in. (6.35 mm) diameter fiber chucks. It offers rotation of 360° in θx, and a sensitivity of 2°.

Gimbal Fiber Chuck Positioner

Our gimbal fiber chuck positioner 561-GM is designed to hold 0.25 in. (6.35 mm) diameter fiber chucks. It offers rotation of 360° in θx and tilt of ±5° in θYθZ with a Sensitivity of 2° in θx, ±12 arc sec in θYθZ

Connectorized Fiber Holders

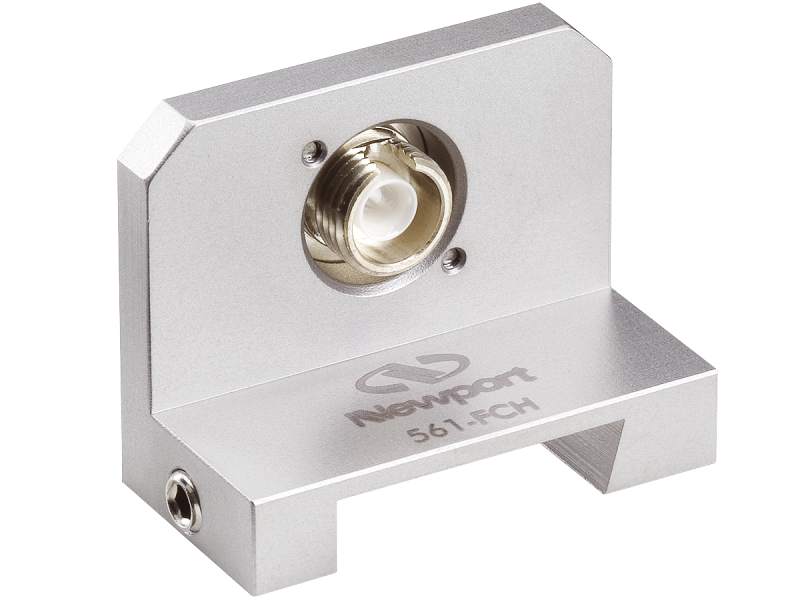

Our connectorized fiber holders 561-xCH are used to mount FC, SC, or LC connectorized fibers.

Connectorized Fiber Holders with Rotation

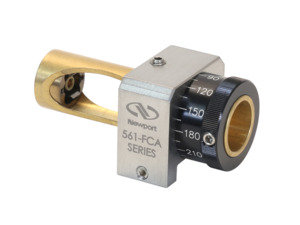

These connectorized fiber holders 561-FCAx allow fibers to be rotated 360° in the holder. They are compatible with SMA, FC, ST, or SC connectorized fibers.

Photonic Crystal Fiber Mount

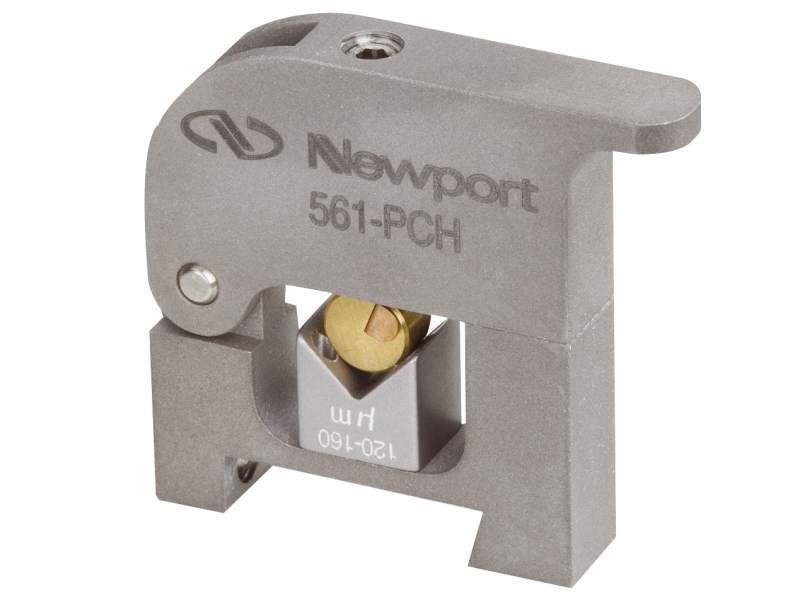

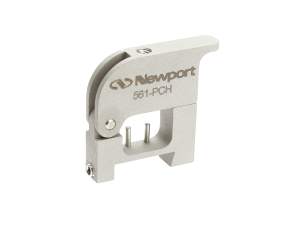

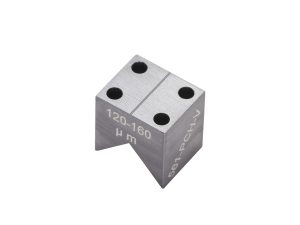

The 561-PCH(-M) mounts are designed to hold short lengths of Photonic Crystal Fiber. They have a V-groove accepts 120-160 µm diameter bare fibers or a small fiber chuck that accepts 80-200 µm diameter bare fibers.

Module Mount

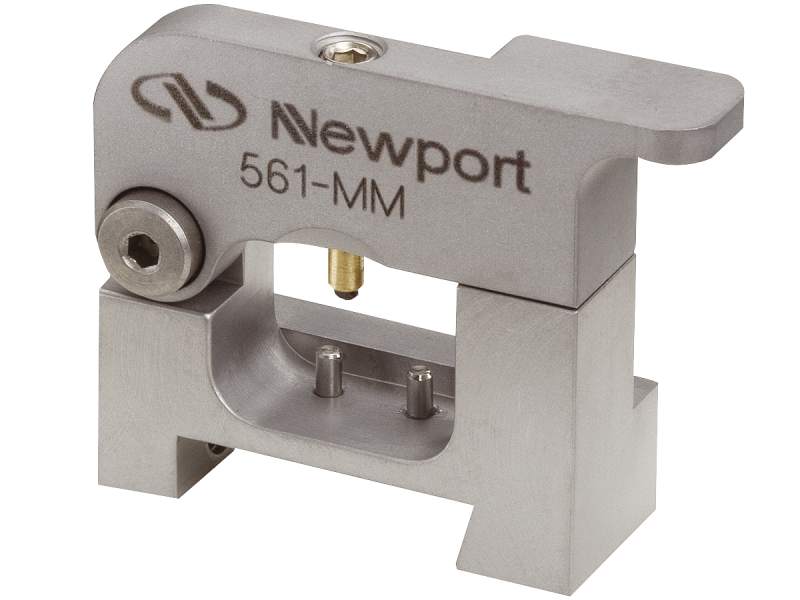

Our module mount 561-MM accepts modules for holding ball lenses, GRIN lenses, fiber collimators, and fiber ferrules. Optics and devices are gently held.

V-Groove Modules

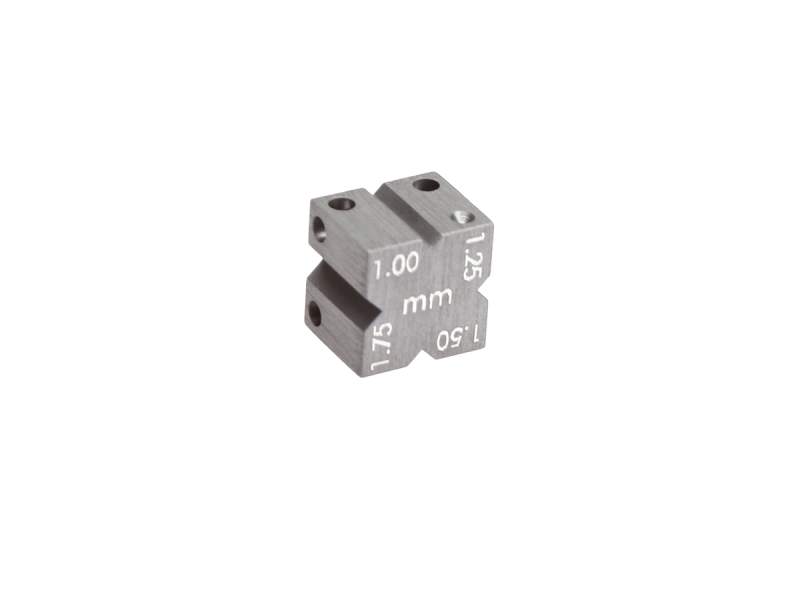

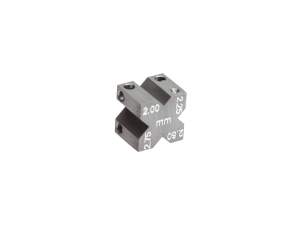

Our V-groove modules 561-Vx are used for holding 1 to 3.25 mm diameter cylindrical devices like GRIN lenses, fiber collimators, and fiber ferrules. They are gently held in 561-MM module mount.

Ball Lens Modules

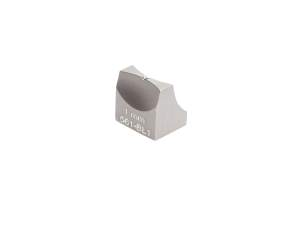

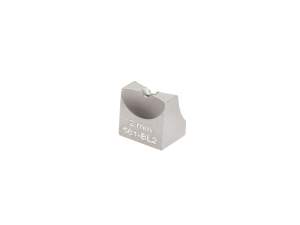

Ball lens modules 561-BLx are for holding 1, 2, or 3 mm diameter ball lenses. They are gently held in 561-MM module mount.

Gradient Index (GRIN) Lens Mount

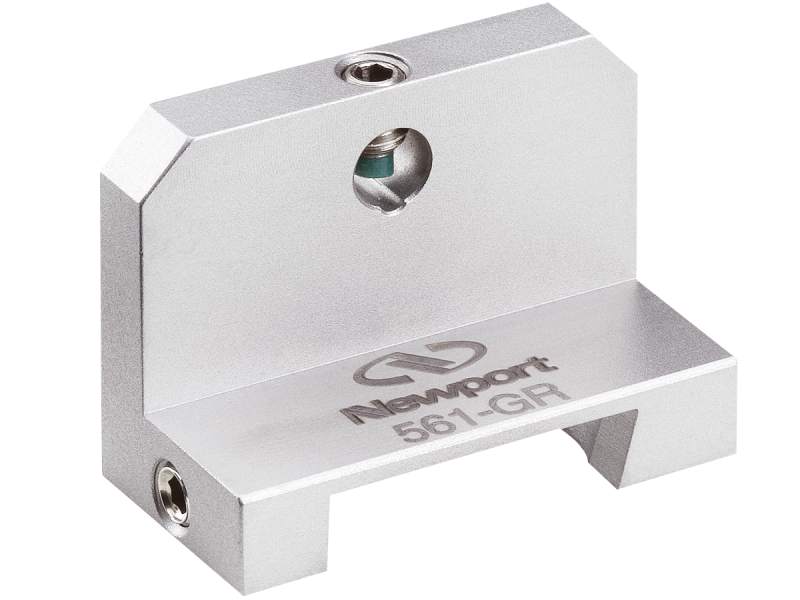

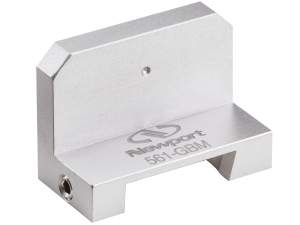

Gradient index lens mounts 561-GR and 561-GBM are used to mount GRIN lenses up to 4.5 mm diameter. Lenses held in a V-groove with a nylon-tipped setscrew.

Objective Lens Mount

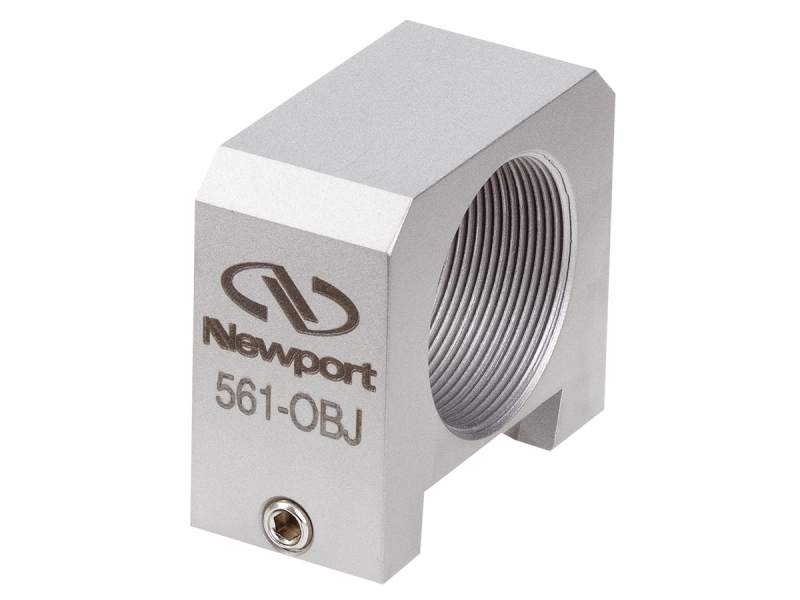

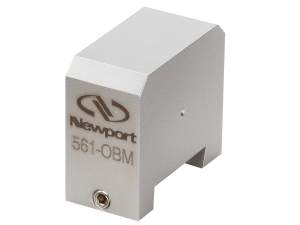

Our objective lens mounts 561-OBJ and 561-OBM are used to mount microscope and laser diode objective lenses. They have standard 0.800-36 RMS thread.

Vacuum Waveguide Mount

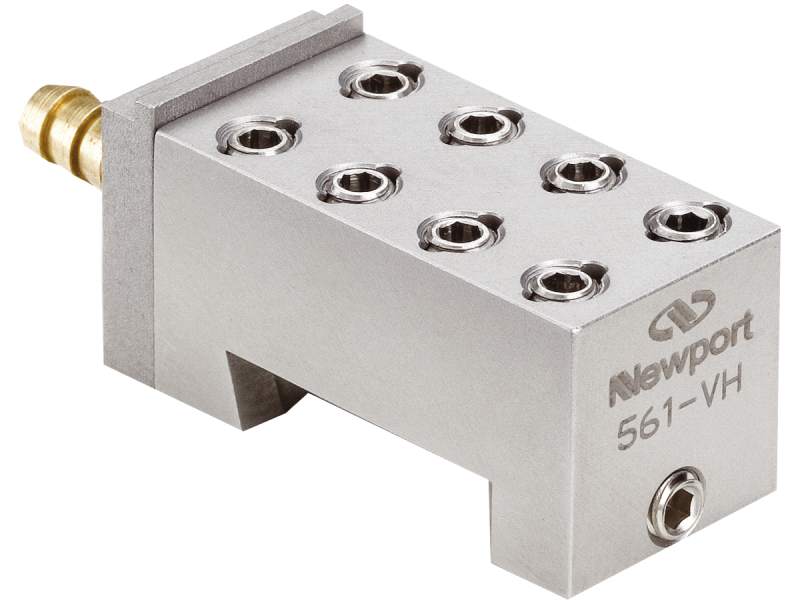

Our vacuum waveguide mount 561-VH has one to eight vacuum ports that can be used to mount small to large devices. It requires a user supplied vacuum pump.

Universal Module

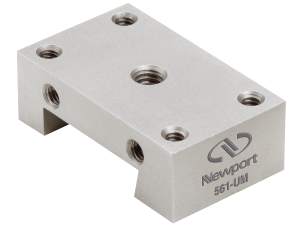

The universal module (M-)561-UM is used to mount custom component holders on the 561/562 rail.

Universal Stand

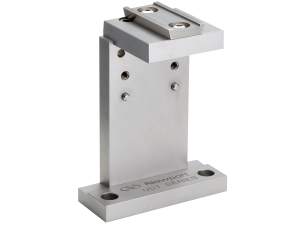

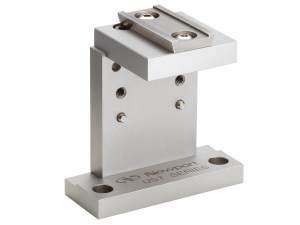

Our 561-UST and 562-UST universal stands are a fixed platform to mount a component next to a positioning stage.

T-Stand

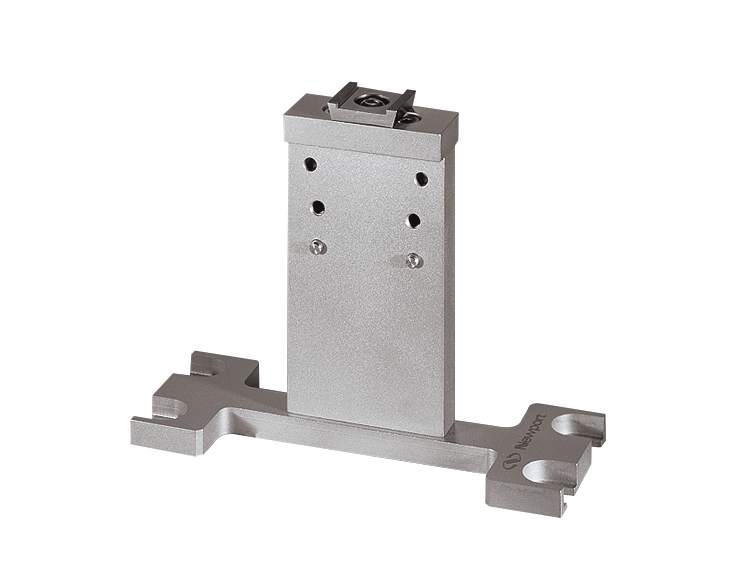

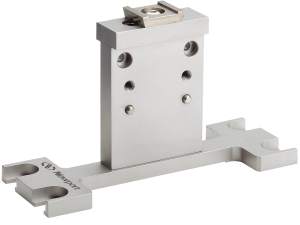

Our 561-TS and 562-TS T-Stands are a fixed platform to mount a component between two positioning stages.

Height Adapter

Our 561-ADPT Height Adapter raises 561 stages to the height of 562 stages. This adapter can be used with 561D-XYZ and 561D-YZ stages.

Dovetail Rail

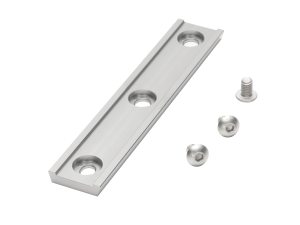

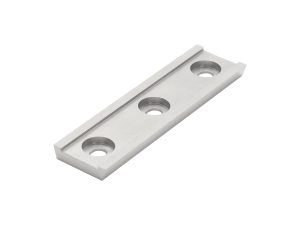

The 56x-RAIL-x Dovetail Rails are used with 561 and 562 Series ULTRAlign positioning systems.
