Motorized Actuator, High Load, 25 mm Travel, Vacuum Compatible

Precision Motorized Actuators, LTA Series

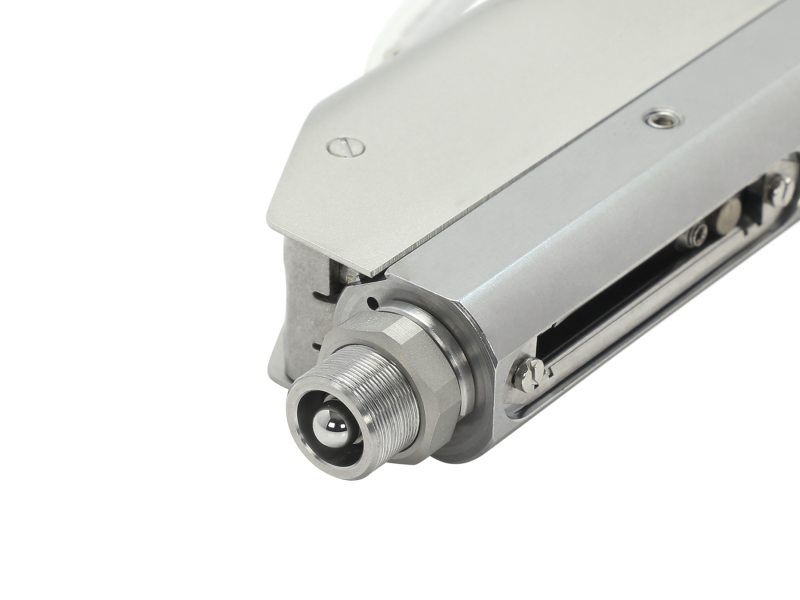

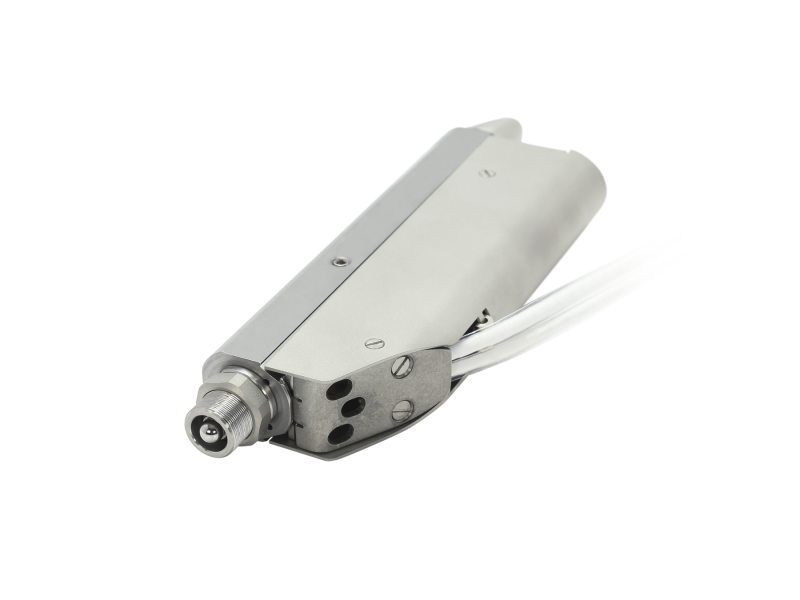

The Vacuum compatible High load LTAHLPPV6 actuator with 25 mm travel. Recommended for heavy load applications, the LTAHLPPV6 features a robust, 8 mm diameter rod and a M12-0.5 mounting bezel that is compatible with vacuum versions of the UMR8 and MVN80 linear stages. LTA actuators are designed to fit into existing manual stages and other opto-mechanical components as direct replacement for manual micrometers. Featuring a space-saving design ideal for limited space in vacuum chambers, the LTA motor and lead screw are mounted side-by-side. This not only reduces the actuator length by 50%, but also minimizes the unwanted effects of long cantilever loads on micro-positioning equipment. Precision motion is accomplished through a miniature stepper motor with optimized output torque. This allows for faster motion and high load capacity. A movable limit switch prevents over-travel. The switch positions can be changed in minutes to adjust the maximum travel position.

Note: The connector supplied with the actuator is not vacuum compatible due to various feed-through configurations and customer preferences. Customers are responsible for cutting the supplied cable into 2 sections and making connections made to a vacuum feedthrough/bulkhead coupling to connect the LTA-V6 actuator to a Newport controller. This note describes the steps for this procedure. Please test the actuator PRIOR to cutting the cable. Once the cable is cut, we cannot warranty the operation of the actuator. Incorrect wiring can also damage the controller. Connecting Vacuum Compatible LTA-V6

Note: The SMC100PP does not utilize the encoder feedback for closed loop regulation. The encoder is only used to display the current position. Positioning is performed by counting steps only.

Vacuum Compatible Versions

The LTA series actuators also come in two standard stepper motor models specifically designed for vacuum applications up to 10^-6 hPa and are readily available from stock.

Manual Adjustment Knob

LTA Series motorized actuators provide a manual adjustment knob which permits quick positioning of the actuator when the motor is off.

Scale Position Indication and Limit Switch

LTA Actuators include a visible scale that indicates coarse actuator position in both millimeters and inches. Beneath the scale's window is an accessible trigger which, along with the Manual Adjustment Knob, can be manually set to limit the actuator's travel range.

Non-rotating Actuator Tip

LTA actuators feature a non-rotating tip that prevents wear and eliminates periodic motion variations when the actuator is moving.

Specifications

Technical Specs

Travel Range
25 mm
Maximum Speed
0.25 mm/s
Minimum Incremental Motion
0.08 µm
Closed Loop Minimum Incremental Motion
0.15 µm
Push Force
100 N
Pull Force
100 N
Accuracy, Typical
±1.2 µm
Accuracy, Guaranteed
±3.0 µm
Bi-directional Repeatability, Typical
±0.30 µm
Bi-directional Repeatability, Guaranteed
±1.0 µm
Uni-directional Repeatability, Typical
±0.10 µm

Uni-directional Repeatability, Guaranteed
±0.30 µm
Origin Repeatability
±2 µm
Cable Length
1.5 m
Vacuum Compatibility
10^-6 Torr
Power Consumption
6 W
Weight
0.35 kg
MTBF
10,000 h (25% load, 30% Duty cycle)
Maximum Power Consumption
10 W
Compliance
RoHS 3, CE

Travel Range
25 mm
Maximum Speed
0.25 mm/s
Minimum Incremental Motion
0.08 µm
Closed Loop Minimum Incremental Motion
0.15 µm
Push Force
100 N
Pull Force
100 N
Accuracy, Typical
±1.2 µm
Accuracy, Guaranteed
±3.0 µm
Bi-directional Repeatability, Typical
±0.30 µm
Bi-directional Repeatability, Guaranteed
±1.0 µm
Uni-directional Repeatability, Typical
±0.10 µm

Uni-directional Repeatability, Guaranteed
±0.30 µm
Origin Repeatability
±2 µm
Cable Length
1.5 m
Vacuum Compatibility
10^-6 Torr
Power Consumption
6 W
Weight
0.35 kg
MTBF
10,000 h (25% load, 30% Duty cycle)
Maximum Power Consumption
10 W
Compliance
RoHS 3, CE

Resources & Downloads

3D Product Models

Download CAD Files

2D Product Drawings

LTAHLPPV6(409.5 kB, PDF)

Manuals

Connecting Vacuum Compatible LTA-V6(49.6 kB, PDF)
LTA User's Manual(3.5 MB, PDF)

Technical Notes

Literature

LTA Data Sheet.pdf(2 MB, PDF)
HP Laser Facilities Brochure(3.7 MB, PDF)
Vaccum Compatible Products Brochure(3.8 MB, PDF)
