Motorized Linear Stage, Miniature, 25 mm Travel, DC Motor, M2 and M3
Motorized Linear Stage, Miniature, 25 mm Travel, DC Motor, M2 and M3
Model: MFA-CC
Product Series Overview

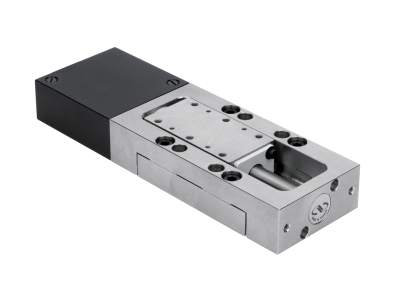

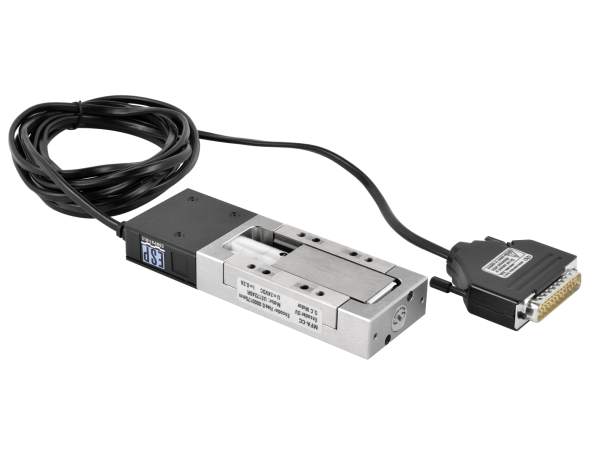

MFA Miniature Steel Linear StagesThe MFA-CC compact all-steel construction linear stage provides 25 mm precision motion with 0.1 μm Minimum Incremental Motion and excellent stability and stiffness. The MFA-CC DC-motor features an integrated gear-box and a motor-mounted high resolution rotary encoder. Faster motion with higher reliability and lower backlash makes it ideal for applications requiring small incremental motion with high dynamic speed and good repeatability. Typical applications for this stage are fiber optic alignment, laser diode research, bio-medical applications and inspection systems.
Double Row Linear Ball Bearing Slides
Newport's proprietary double-row linear ball bearing design with bearing ways that are directly machined into the structural frame of the stage result in very smooth travel, greater durability and longer life. Compared to other solutions that use commercial bearings, MFA linear stages have a higher load capacity and stiffness with low pitch and yaw errors.
High Speed DC Motor with High Resolution Feedback
DC motors are best characterized by their high speeds, smooth motion, good efficiency and a high power/weight ratio. The MFA-CC DC motor features an integrated gear-box and a motor-mounted rotary encoder. The high-resolution 2,048 cts/rev rotary encoder provides position feedback. Combined with a low-friction mechanical design, the MFA-CC delivers ultra-smooth motion with 100-nm sensitivity. Faster motion with higher reliability and lower backlash make DC Motor-driven stages ideal for applications requiring small incremental motion with high dynamic speed and good repeatability.
All Steel Construction
A full steel body allows for a more compact design with exceptional stiffness-to-weight ratio, greater thermal stability and high load capacity.
End-of Run Limit Switches
The stage contains end-of-run limit switches on both ends to prevent damage to the stage from over-travel.
Top and Base Plates
For more versatility and mounting options, top and base plates may be ordered separately to enable vertical (Z-axis) mounting and mounting to an optical table. For vertical mounting, note that the vertical (Z-axis) stage should be attached to the the
Specifications
- Travel Range25 mm
- Maximum Speed2.5 mm/s
- Minimum Incremental Motion100 nm
- Centered Load Capacity50 N
- Axial Load Capacity (+Cx)10 N
- Inverse Axial Load Capacity (-Cx)-10 N
- Accuracy, Typical±0.7 µm
- Accuracy, Guaranteed±3.0 µm
- Uni-directional Repeatability, Typical±0.08 µm
- Uni-directional Repeatability, Guaranteed±0.15 µm
- Bi-directional Repeatability, Typical±0.15 µm
- Bi-directional Repeatability, Guaranteed±0.75 µm
- Pitch, Typical±25 µrad
- Pitch, Guaranteed±100 µrad
- Compliance in Pitch80 µrad/Nm
- Yaw, Typical±30 µrad
- Yaw, Guaranteed±50 µrad
- Compliance in Yaw80 µrad/Nm
- Compliance in Roll60 µrad/Nm
- MaterialSteel
- BearingsDouble-Row Ball Bearings
- Drive TypeDC Motor
- Origin Repeatability±2.5 µm
- Cable Length3 m
- Connector TypeDB25 Male
- Vacuum CompatibilityNo
- Thread TypeM2 and M3
- Weight0.63 kg
- MTBF10,000 h (25% load, 30% Duty cycle)
- Maximum Power Consumption10 W
- ComplianceRoHS 3, CE
Resources & Downloads
3D Product Models
2D Product Drawings
MFA2-S(115.7 kB, PDF)
Other
MFA-CC RoHS Certificate(278.1 kB, PDF)
