FC-PS40 power supply and USB-RS422-1.8 adapter cable sold separately.
Overview

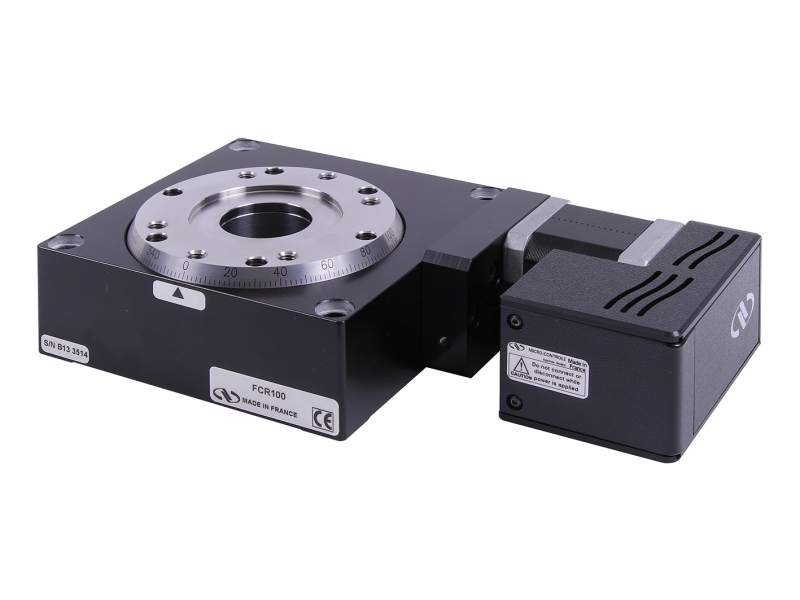

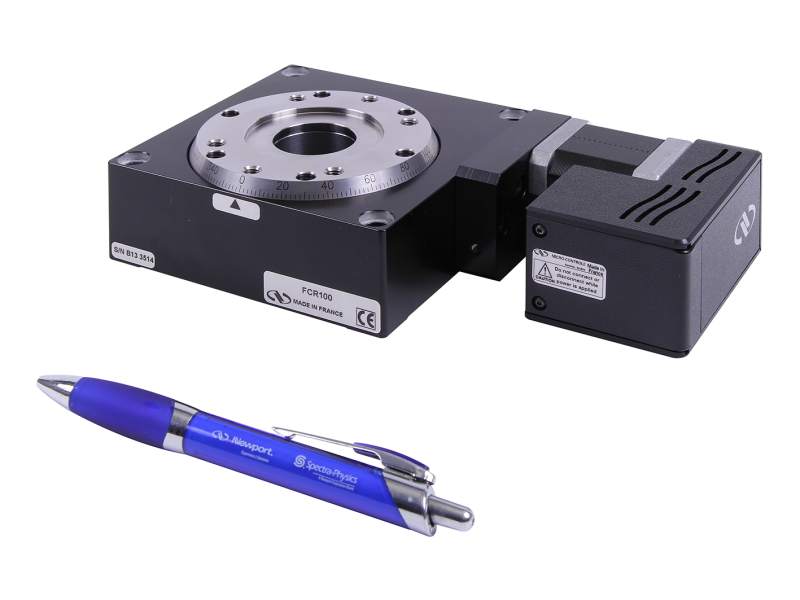

The economical FCR Series of rotary stages separates itself with a built-in plug-and-play stepper motor controller and driver, while maintaining good in-position and speed stability.
Built-in stepper motor controller with iPP technology, eliminating external controller or driver integration
Fully pre-configured with USB communication and enables out-of-the-box control
Up to 4 FC units can be daisy-chained and controlled with the same GUI or multiple units via USB hub or RS-422 interface
Most economical stage available without compromising MIM
Stepper motor provides more torque and better speed stability at low speeds
Additional drawings are not available for this product.
Specifications
Angular Range
360°
Maximum Speed
20°/s
Minimum Incremental Motion
0.25 mdeg

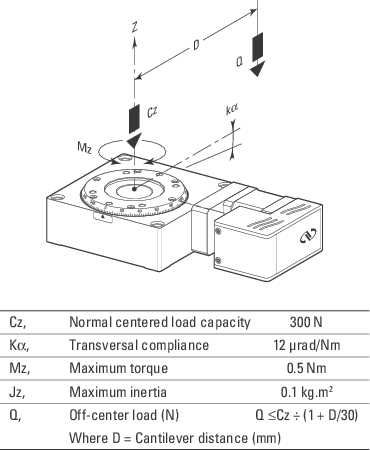

Maximum Torque
0.5 Nm
Centered Load Capacity
300 N
Uni-directional Repeatability, Typical
±0.50 mdeg
Uni-directional Repeatability, Guaranteed
±1.0 mdeg
Bi-directional Repeatability, Typical
±2.5 mdeg
Bi-directional Repeatability, Guaranteed
±6.0 mdeg
Accuracy, Typical
±10 mdeg
Accuracy, Guaranteed
±20 mdeg
Wobble, Typical
±12 µrad
Wobble, Guaranteed
±25 µrad
Eccentricity, Typical
±1.4 µm
Eccentricity, Guaranteed
±3.0 µm
Transversal Compliance
20 µrad/Nm
Origin
Optical, centered
Origin Repeatability
±2.5 mdeg
MTBF
20,000 h (25% load, 10% duty cycle)
Cable Length
5 m
Aperture Diameter
30 mm
Computer Interfaces
RS422 and USB
Weight
2.25 kg
RoHS
Compliant
Features
Built-in stepper motor controller with iPP technology
Example of a multi-axis configuration. Note that FC-PS40 power supply and USB-RS422-1.8 adapter cable must be purchased separately.
The FCR's design brings together a rotary stage with a built-in controller and driver for easy integration. Not only is the controller pre-configured with intelligent stepper motor technology, iPP, but the stage is also ready for plug-and-play via USB connection. The built-in controller eliminates the need for an external controller and cables, thus saving work-space and cost.
Daisy-Chain up to 4 FC units
Example of a daisy-chaining configuration. Note that FC-PS40 power supply, FC-CB1 communication cable, and USB-RS422-1.8 adapter cable must be purchased separately.
With a RS-422 interface, the FC series is equipped to easily daisy-chain and synchronize communication with up to 4 stages.
Robust Design
The optimized aluminum body allows for extreme stiffness without compromising weight. The rigid body reduces deflection under load. Features of the FEM-Optimized FCR100 includes: robust construction of crossed roller bearing for high position accuracy and the stepper motor directly attached to the worm screw providing high output torque.
Metrology Report Included at No Additional Cost
Newport guarantees specification values which are measured and recorded following ASME B5.57 and ISO 230-2 standards. The typical performance values are two times better than the guaranteed specifications.
Accessories
Compare
Description
Compatibility
Drawings, CAD & Specs
Avail.
Price
FC-CB1Communication Cable, daisy chain, RS422, 1 meter
