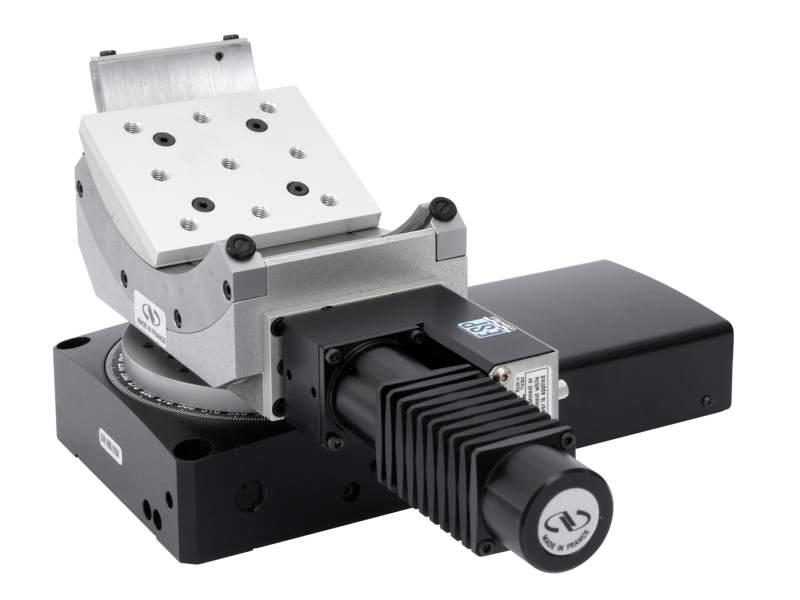

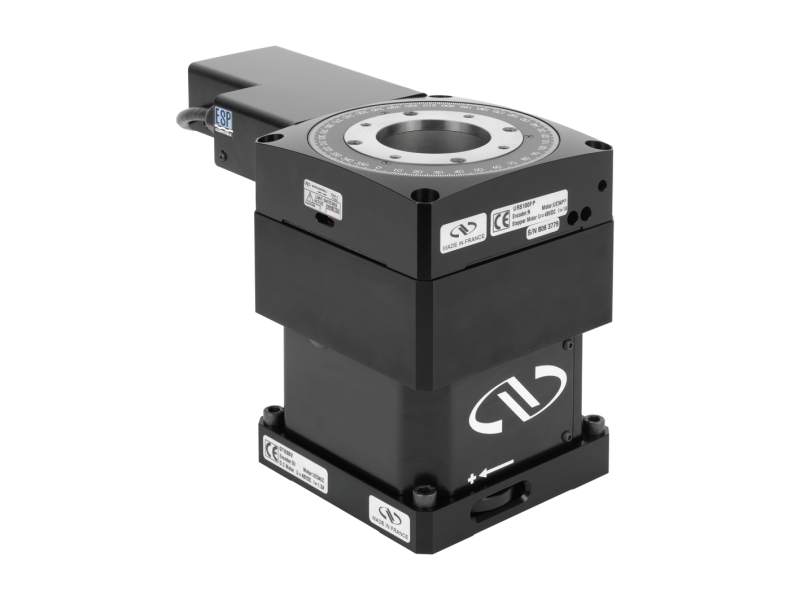

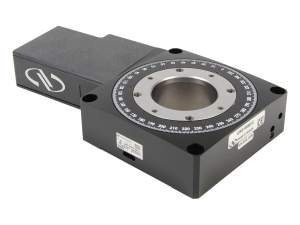

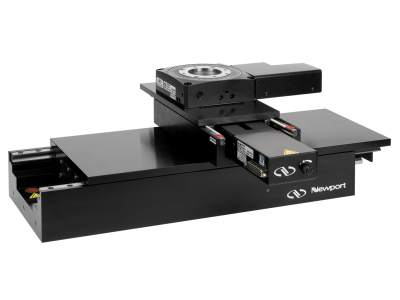

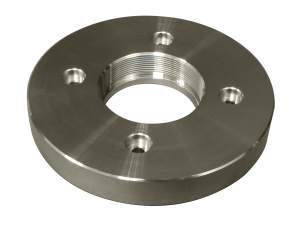

Motorized Rotation Stage, DC Motor, Continuous 360° Motion, URS100
$4,444
2 Weeks
2 Weeks
Motorized Rotation Stage, Stepper, Continuous 360° Motion, URS100
$3,929
In Stock
In Stock
Motorized Rotation Stage, DC Motor, Continuous 360° Motion, URS150
$4,919
5 Weeks
5 Weeks
Motorized Rotation Stage, Stepper, Continuous 360° Motion, URS150
$4,343
In Stock
In Stock

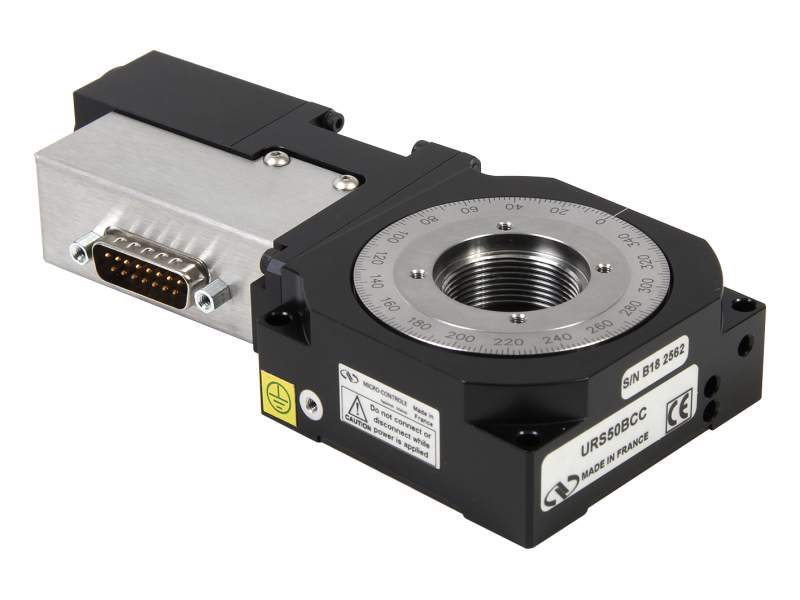

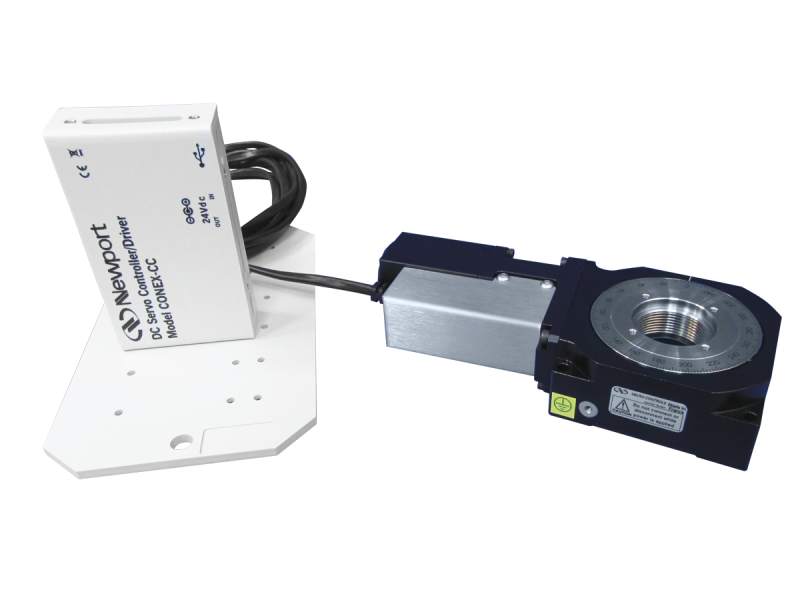

Motorized Rotation Stage, DC Motor, Continuous 360° Motion, URS50
$2,980
5 Weeks
5 Weeks
Motorized Rotation Stage, Vacuum Compatible, Stepper, URS50
$4,172
3 Weeks
3 Weeks
Motorized Rotation Stage, Stepper, Continuous 360° Motion, URS50
$2,721
In Stock
In Stock

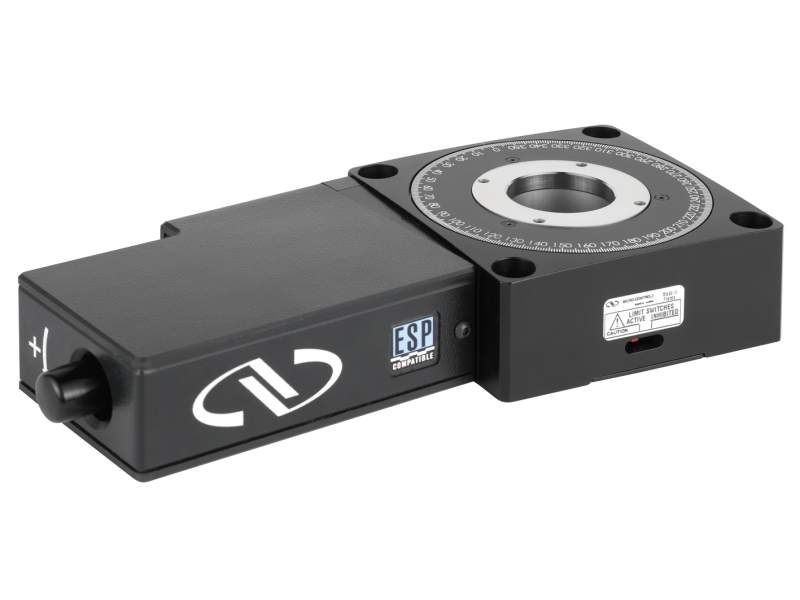

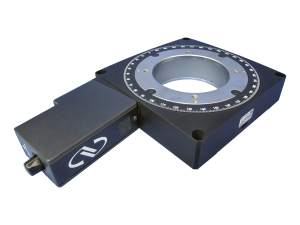

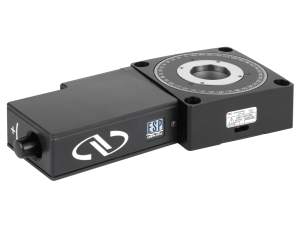

precision motorized rotation stage model urs75bcc
Motorized Rotation Stage, DC Motor, Continuous 360° Motion, URS75
$4,162
In Stock
In Stock
Motorized Rotation Stage, Stepper, Continuous 360° Motion, URS75
$3,566
In Stock
In Stock
Motorized Rotation Stage, Vacuum, Stepper Motor, URS75
$5,656
In Stock
In Stock

Specifications

Features

DC Motor Version

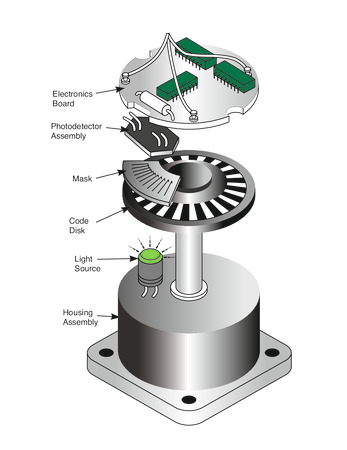

The URS75BCC to URS150BCC DC-motor versions features an ultra-high resolution 8,000 cts/rev rotary encoder with index pulse for precision homing and is the recommended choice for applications requiring accurate bi-directional positioning. For the tightest position control, the rotary encoder is mounted directly on the worm screw. This eliminates most of the possible error sources associated with indirect read feedback devices. The high-torque of some DC motor versions provides the highest dynamic speed range and allows for rotating speeds up to 80 °/s. The URS50BCC DC-version is our smallest version and its motor encoder feature provides a very compact and easy to integrate version which can go up to 20 °/s with 100 N maximum load capacity.

Stepper Motor Version

The stepper motor version is a more economical version for less demanding applications. When used with motion controllers with high micro-step capability, like the XPS or ESP301, low noise operation and very small incremental motions are guaranteed. The stepper motor versions do not use encoder feedback, but reach a position by the number of commanded steps and microsteps. For this purpose, the stepper motor is directly attached to the worm screw using a proprietary bellows coupling that has a high torsional stiffness, eliminating the need for a gear or belt drive. The high output torque of the stepper motor minimizes the risk of lost steps and provides good linearity between commanded microsteps and the actual motion of the stage.

Tilted Worm Screw

The tilted worm screw arrangement allows for 4 symmetric mounting holes as compared to other designs that only feature 2 or 3 mounting holes. This enables the URS-B stages to provide better support of higher or off-centered loads. Additionally, the flexible preloading system for the worm gear was improved to guarantee a backlash free operation.

URS50CPP Top View

Proprietary Ball Bearings

All URS-B rotation stages feature a proprietary ball bearing to provide a low-profile compact stage with exceptional stiffness, high reliability and low wobble and eccentricity.

Metrology Report Included at No Additional Cost

Newport guarantees specification values which are measured and recorded following ASME B5.57 and ISO 230-2 standards. The typical performance values are two times better than the guaranteed specifications.

URS Stage Load Characteristics

URS Vacuum Compatible Stage Load Characteristics
