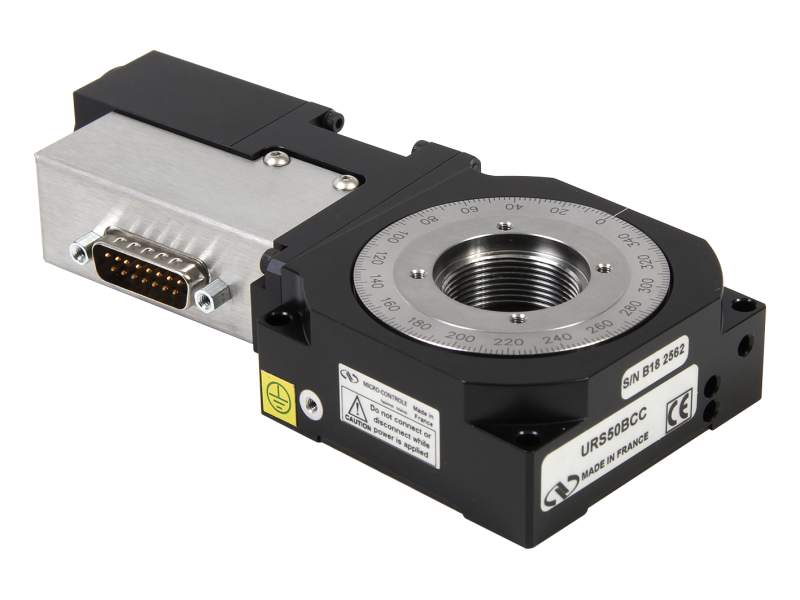

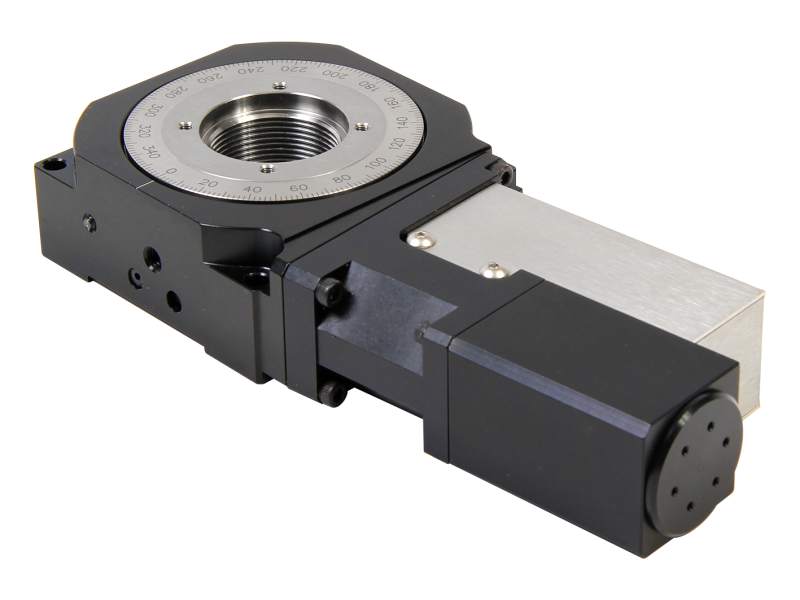

Motorized Rotation Stage, DC Motor, Continuous 360° Motion, URS50

Technical Specs

  • Angular Range
    360°
  • Maximum Speed
    20°/s
  • Maximum Torque
    0.25 N·m
  • Centered Load Capacity
    100 N
  • Thread Type
    M3
  • Minimum Incremental Motion
    1.0 mdeg
  • Uni-directional Repeatability, Typical
    ±0.30 mdeg
  • Uni-directional Repeatability, Guaranteed
    ±1.0 mdeg
  • Bi-directional Repeatability, Typical
    ±0.5 mdeg
  • Bi-directional Repeatability, Guaranteed
    ±2.0 mdeg
  • Accuracy, Typical
    ±10 mdeg
  • Accuracy, Guaranteed
    ±20 mdeg
  • Wobble, Typical
    ±12 µrad
  • Wobble, Guaranteed
    ±25 µrad
  • Eccentricity, Typical
    ±3.0 µm
  • Transversal Compliance
    100 µrad/N·m
  • Origin Repeatability
    ±25 mdeg
  • Cable Length
    3 m
  • Aperture Diameter
    25.7 mm
  • Weight
    0.7 kg
  • MTBF
    20,000 h (25% load, 10% duty cycle)
  • RoHS
    Compliant
  • Maximum Power Consumption
    10 W
  • Compatible XPS-RL Driver Module
  • Compatible XPS-D Driver Module
  • ESP301 Compatibility
    Yes
  • SMC100 Compatibility
