Mounting Plate, Solid Top, URS100 Series, M6 Threaded Holes

Base and Top Plates for Motorized Stages

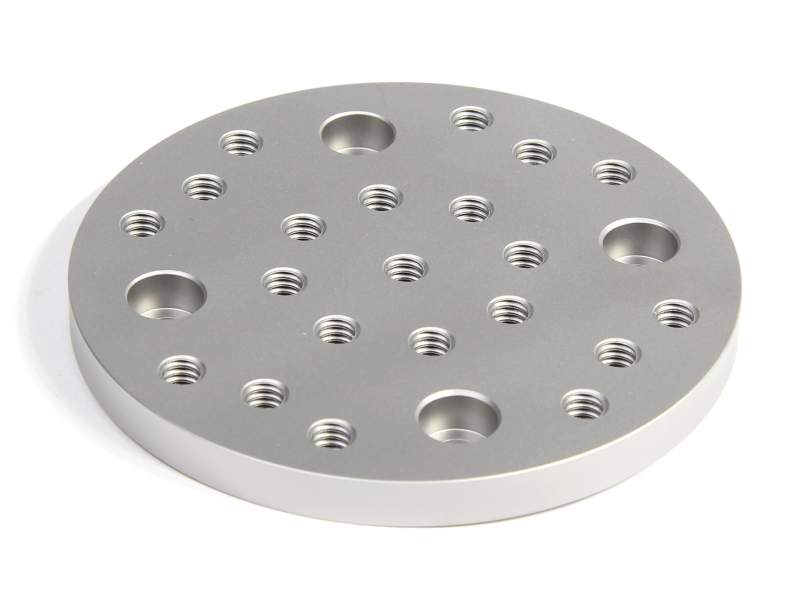

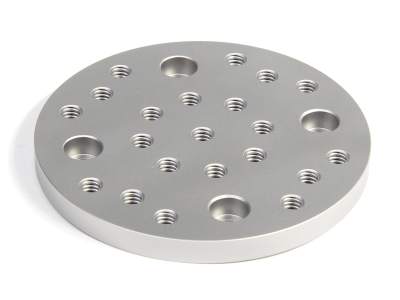

The M-URS100TP Mounting Plate is a solid top mounting plate for the URS100 rotation stage. It has (21) M6 Metric Threaded holes, and (4) M6 CLR Tapped holes.

Specifications

Technical Specs

Thread Type
M6
Material
Stainless Steel

Thread Type
M6
Material
Stainless Steel

Resources & Downloads

3D Product Models

Download CAD Files

Other

M-URS100TP RoHS Certificate(278.5 kB, PDF)

2D Product Drawings

M-URS100TP(398.2 kB, PDF)
