Compare Model Drawings, CAD & Specs Availability Price

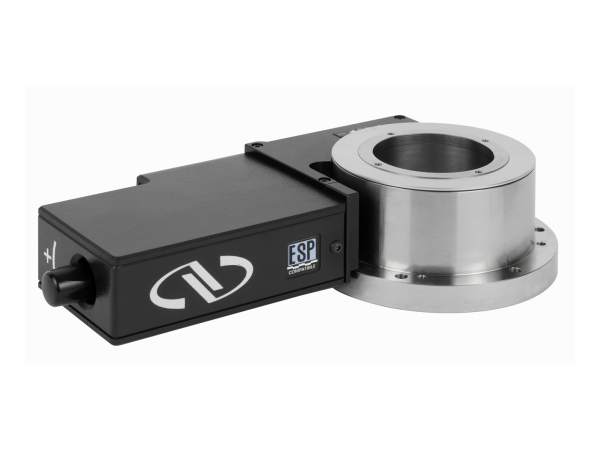

RVS80CC
Motorized Rotation Stage, 80 mm, High-Speed DC Drive
$7,017
RVS80CC Motorized Rotation Stage, 80 mm, High-Speed DC Drive $7,017
RV120CC
Motorized Rotation Stage, 120 mm, High-Speed DC Drive
$8,899
In Stock
 RV120CC Motorized Rotation Stage, 120 mm, High-Speed DC Drive
In Stock
 $8,899
RV120CCHL
Motorized Rotation Stage, 120 mm, High-Torque DC Drive
$10,293
7 Weeks
 RV120CCHL Motorized Rotation Stage, 120 mm, High-Torque DC Drive
7 Weeks
 $10,293
RV120HAT
Motorized Rotation Stage, 120 mm, High-Speed DC Drive, Direct Encoder
$13,758
12 Weeks
 RV120HAT Motorized Rotation Stage, 120 mm, High-Speed DC Drive, Direct Encoder
12 Weeks
 $13,758
RV120HAHL
Motorized Rotation Stage, 120 mm, High-Torque DC Drive, Direct Encoder
$15,930
11 Weeks
 RV120HAHL Motorized Rotation Stage, 120 mm, High-Torque DC Drive, Direct Encoder
11 Weeks
 $15,930
high-performance precision rotation stage model rv160

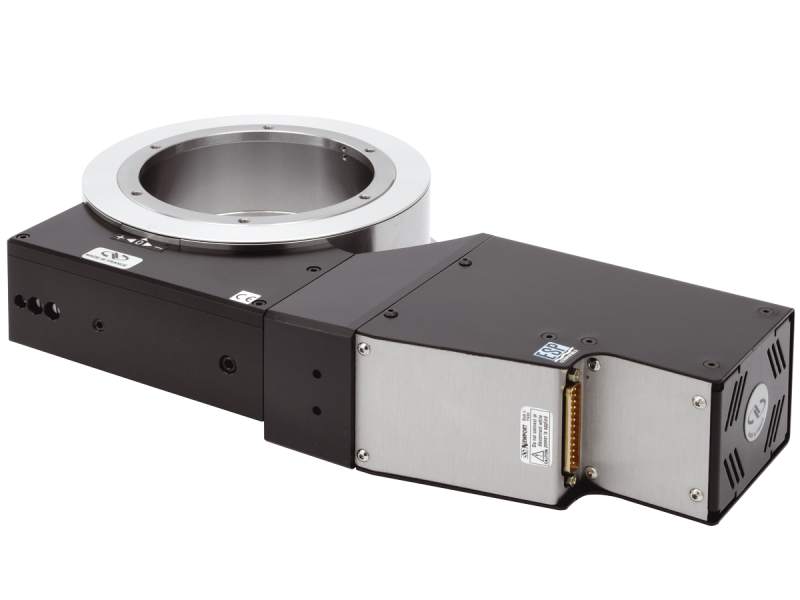

RV160CC
Motorized Rotation Stage, 160 mm, High-Speed DC Drive
$10,793
5 Weeks
 RV160CC Motorized Rotation Stage, 160 mm, High-Speed DC Drive
5 Weeks
 $10,793
RV160CCHL
Motorized Rotation Stage, 160 mm, High-Torque DC Drive
$11,757
RV160CCHL Motorized Rotation Stage, 160 mm, High-Torque DC Drive $11,757
high-performance precision rotation stage model rv160
RV160HAT
Motorized Rotation Stage, 160 mm, High-Speed DC Drive, Direct Encoder
$15,949
In Stock
 RV160HAT Motorized Rotation Stage, 160 mm, High-Speed DC Drive, Direct Encoder
In Stock
 $15,949
RV160HAHLT
Motorized Rotation Stage, 160 mm, High-Torque DC Drive, Direct Encoder
$18,257
12 Weeks
 RV160HAHLT Motorized Rotation Stage, 160 mm, High-Torque DC Drive, Direct Encoder
12 Weeks
 $18,257
RV240CC
Motorized Rotation Stage, 240 mm, High-Speed DC Drive
$13,482
In Stock
 RV240CC Motorized Rotation Stage, 240 mm, High-Speed DC Drive
In Stock
 $13,482
RV240CCHL
Motorized Rotation Stage, 240 mm, High-Torque DC Drive
$15,544
7 Weeks
 RV240CCHL Motorized Rotation Stage, 240 mm, High-Torque DC Drive
7 Weeks
 $15,544
RV240HAT
Motorized Rotation Stage, 240 mm, High-Speed DC Drive, Direct Encoder
$20,175
12 Weeks
 RV240HAT Motorized Rotation Stage, 240 mm, High-Speed DC Drive, Direct Encoder
12 Weeks
 $20,175
RV240HAHLT
Motorized Rotation Stage, 240 mm, High-Torque DC Drive, Direct Encoder
$22,326
11 Weeks
 RV240HAHLT Motorized Rotation Stage, 240 mm, High-Torque DC Drive, Direct Encoder
11 Weeks
 $22,326

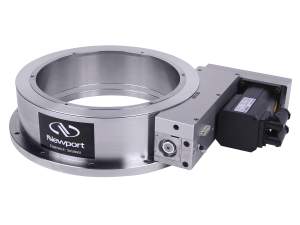

RV350CC
Motorized Rotation Stage, 350 mm, High-Speed DC Drive
$20,517
7 Weeks
 RV350CC Motorized Rotation Stage, 350 mm, High-Speed DC Drive
7 Weeks
 $20,517
RV350CCHL
Motorized Rotation Stage, 350 mm, High-Torque DC Drive
$22,473
8 Weeks
 RV350CCHL Motorized Rotation Stage, 350 mm, High-Torque DC Drive
8 Weeks
 $22,473
RV350HAT
Motorized Rotation Stage, 350 mm, High-Speed DC Drive, Direct Encoder
$28,007
12 Weeks
 RV350HAT Motorized Rotation Stage, 350 mm, High-Speed DC Drive, Direct Encoder
12 Weeks
 $28,007
RV350HAHLT
Motorized Rotation Stage, 350 mm, High-Torque DC Drive, Direct Encoder
$31,144
11 Weeks
 RV350HAHLT Motorized Rotation Stage, 350 mm, High-Torque DC Drive, Direct Encoder
11 Weeks
 $31,144
Notes:

Folded version for applications with space constraints and Stepper Motor version are also available.

Specifications

  • Drive Mechanism
    Ground worm gear with self compensating preload
  • Bearings
    Double row ball bearings
  • Worm Gear Ratio
    RVS80: 1:180; RV120–RV350: 1:90
  • Origin
    Optical
  • Limit Switches
    Optical, at ± 170°, can be disabled for continuous rotation (except HAT & HAHLT versions)
  • Feedback
    HAT and HALT: Direct reading optical encoder on rotating platen; CC, CCHL and HAHL: Worm-mounted rotary encoder
  • Base Material
    Stainless Steel
  • Cable Length
    3 m

Features

Steel Construction

The tool steel construction ensures enhanced rotation accuracy due to the ground bearing surfaces. The single monolithic design offers improved stiffness and thermal stability without compromising dynamic performance.

Highest Load Capacity

The double row of preloaded ball bearings allows for higher off center loads for its small footprint. The largest member of the RV DC motor product family can bear up to 650 kg or rotate up to 80 °/s while maintaining eccentricity of less than 4 µm.

High Speed and High Torque DC Motor Versions

High speed (CC and HAT) and high torque (CCHL, HAHL and HAHLT) versions of the RV DC motor stages are available. The high speed versions enable speeds up to 80°/sec. The high torque versions are equipped with a reduction gear which provides higher torque and payload inertia capacity. A rotary encoder is mounted on the worm gear shaft of the CC and CCHL versions. When superior repeatability, position stability and speed regulation is needed, the high speed HAT and high torque HAHLT versions feature a high-resolution direct reading encoder and tachometer. (RV120HAHL includes direct reading encoder, but no tachometer.)

Error Mapping Services

For critical positioning applications, Newport offers error mapping upon request for RV-HAT and RV-HAHLT stages driven by our XPS advanced motion controller. We will measure, implement, and verify the results of this error map that will individually optimize each stage's position accuracy. In addition, multi-axis error mapping is also available. Measurements are made at 20.0 ±0.2 °C. A certificate of calibration will be provided with your stage. Actual data may also be provided upon request.

Configurable Limit Switches

Most of the RV models are designed with optical limit switches to limit movement to 170°. These can be enabled or disabled for complete 360° motion with a simple "Allen" wrench.

Metrology Report Included at No Additional Cost

Newport guarantees specification values which are measured and recorded following ASME B5.57 and ISO 230-2 standards. The typical performance values are two times better than the guaranteed specifications.

RVS80 Load Characteristics

RV Load Characteristics - Horizontal Configuration

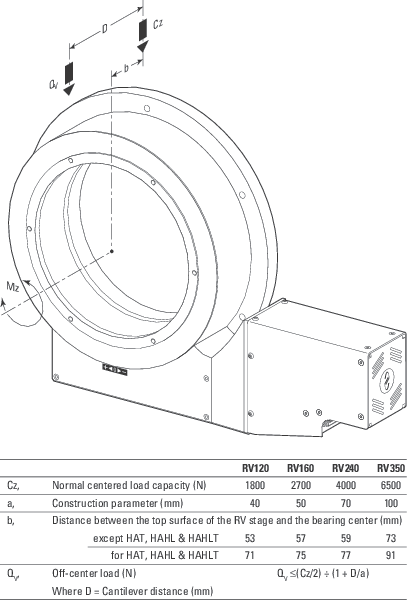

RV Load Characteristics - Vertical Configration

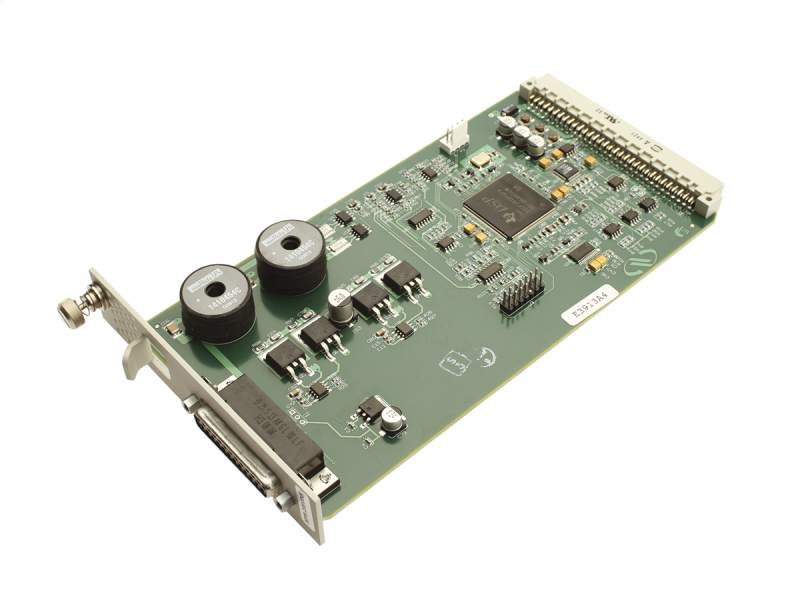

Compatible motion controllers for the HAT and HAHLT versions of these DC motor driven stages are:

Compatible motion controllers for the CC, CCHL and HAHL versions of these DC motor driven stages are:
