Mounting Plate, Solid Top, URS100 Series, 1/4-20 Threaded Holes

Mounting Plate, Solid Top, URS100 Series, 1/4-20 Threaded Holes

Model: URS100TP

$226

3 Weeks

Compare

Add to List

Product Series Overview

Base and Top Plates for Motorized Stages

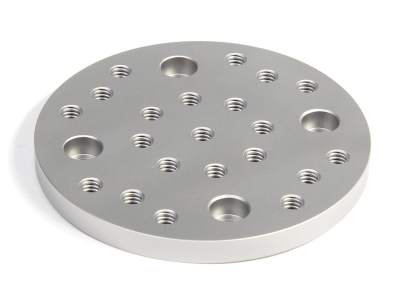

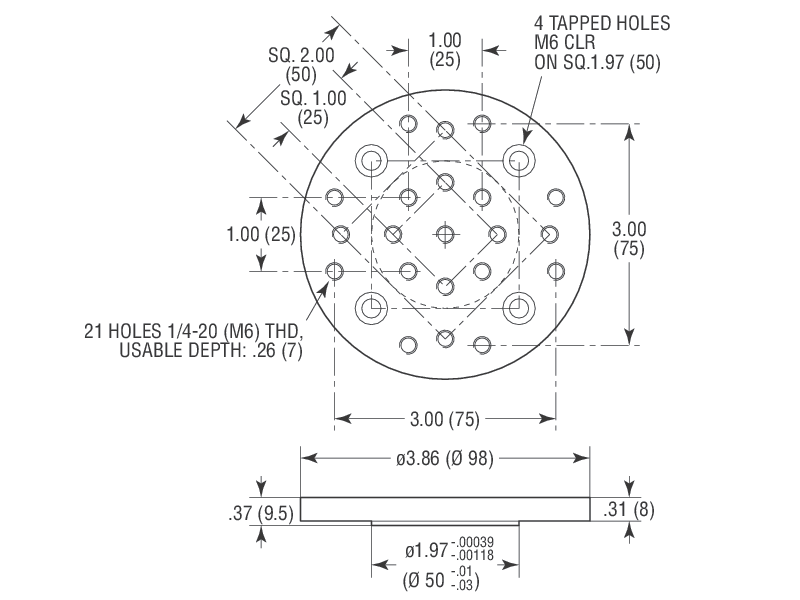

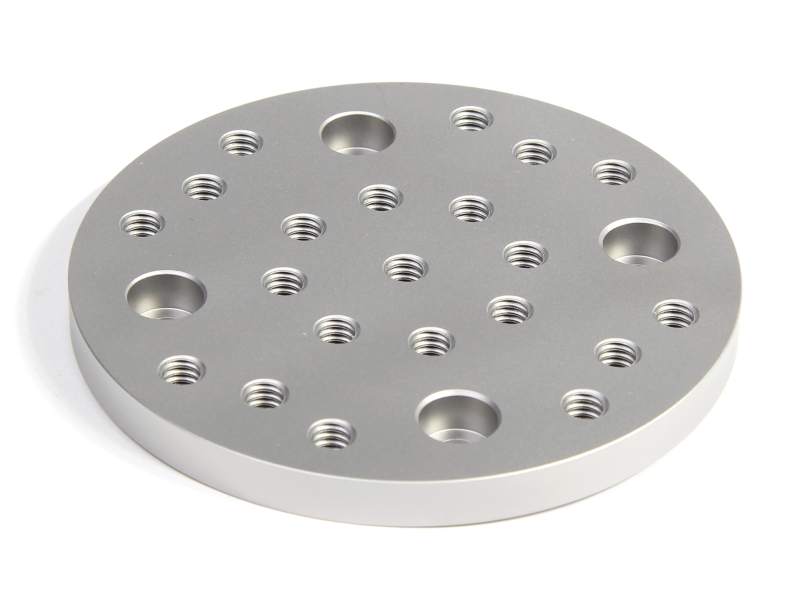

The URS100TP Mounting Plate is a solid top mounting plate for the URS100 rotation stage. It has (21) 1/4-20 threaded holes, and (4) M6 CLR tapped holes.

Specifications

Technical Specs

Material

Stainless Steel

Material

Stainless Steel

Resources & Downloads

Other

URS100TP RoHS Certificate (278.3 kB, PDF)

Technical Notes

URS Rotation Stages Limit Switches Position Change (124 kB, PDF)

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

URS100TP (398 kB, PDF)

Literature

URS Data Sheet.pdf (2.8 MB, PDF)
