The low-cost CONEX™ controller paired with various compact rotation stages (PR50, SR50, URS50BCC, NSR1) form a small, economic, and precise motion device.
| Compare | Model | Drawings, CAD & Specs | Availability | Price | |||
|---|---|---|---|---|---|---|---|
|

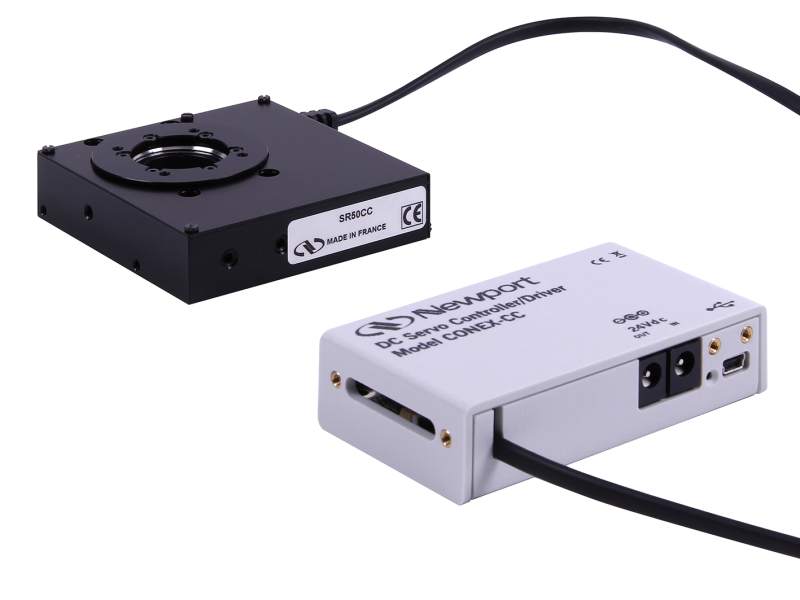

CONEX-PR50CC |
In Stock
|
$3,127 |
|
|||
|

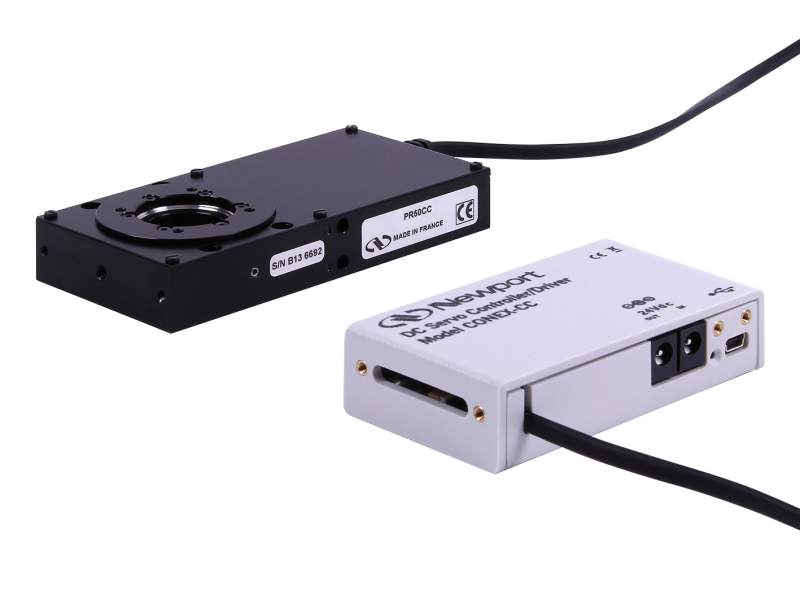

CONEX-SR50CC |
In Stock
|
$4,103 |
|
|||
|

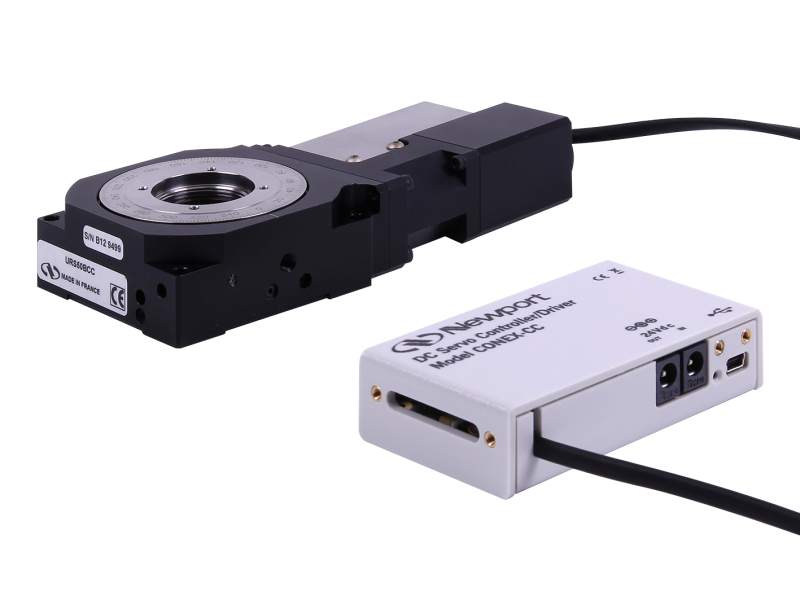

CONEX-URS50BCC |
In Stock
|
$4,588 |
|
| Models |
|
|
|
|
|---|---|---|---|---|
| Aperture Diameter | 25.7 mm | 25.7 mm | 25.7 mm | |
| Travel Range | 360° | 360° | 360° | |
| Origin Repeatability | ±25 mdeg | ±25 mdeg | ±25 mdeg | |
| Uni-directional Repeatability, Guaranteed | ±15 mdeg | ±5.0 mdeg | ±1.0 mdeg | |
| Bi-directional Repeatability, Typical | ±75 mdeg | ±25 mdeg | ±2.0 mdeg | |
| Maximum Speed | 20°/s | 4°/s | 20°/s | |
| Maximum Torque | 0.1 Nm | 0.4 Nm | 0.25 Nm | |
| Minimum Incremental Motion | 20 mdeg | 4.0 mdeg | 1.0 mdeg | |
| Inertia | 0.015 kg.m2 | 0.015 kg.m2 | 0.015 kg.m2 | |
| Drive Type | DC Servo | DC Servo | DC Servo | |
| Feedback | Motor mounted rotary encoder, 48 pts/rev | Motor mounted rotary encoder, 48 pts/rev | Worm mounted rotary encoder, 8,000 cts/rev, Index pulse | |
| Accuracy, Typical | ±25 mdeg | ±15 mdeg | ±10 mdeg | |
| Accuracy, Guaranteed | ±50 mdeg | ±30 mdeg | ±20 mdeg | |
| Cable Length | 3 m | 3 m | 3 m | |
| RoHS | Compliant | Compliant | Compliant |
In terms of size, the CONEX-CC controller is comparable to a deck of cards. Depending on the motor type, up to 3 CONEX-PP or 6 CONEX-CC can fit on a CONEX-BP baseplate. Both controller and stage are compact and ideal for space-confined or access-limited applications. Newport also offers the stand alone version of these Low Profile Rotation Stages.
The CONEX rotation units can be connected via daisy chain to create either multi-axis DC systems or multi-axis PP systems. For added convenience, the power can be shared with up to 5 CONEX-CC modules using the optional CONEX-PS-CB power chain cable. This allows for a convenient low cost multi-axis system. Additionally, analog and digital inputs can be implemented into the controller through the CONEX-IOD.
For out-of-the box control, the CONEX controller is preconfigured and delivered with the motion device. To start moving a sample or sensor, it simply requires plugging in the power supply, connecting the USB communication and starting the free motion GUI.
The low-noise linear amplifier of the CONEX-CC provides the optimum drive solution for low-power DC motors; delivering smoother motion, with less electrical noise and significantly less motor heating.
3 different rotation stages are available to choose from to address critical parameters that fit a variety of applications. For example, the MIM differs between stages ranging from 0.001° to 0.02°. On the other hand, speed ranges from 4 °/s to 20 °/s.
Advanced application programming is simplified by using mnemonic ASCII commands. Newport provides a free GUI that allows the user to access and execute over 60 intuitive ASCII commands. Alternatively, additional drivers are available for LabVIEW™ as well as communication DLL’s for other languages.
Communication with the CONEX controller and PC is achieved via the integrated USB interface, providing a fast ubiquitous communication protocol. For OEM's or security sensitive applications, RS-232 and RS-485 are embedded onto the controller.
