Overview

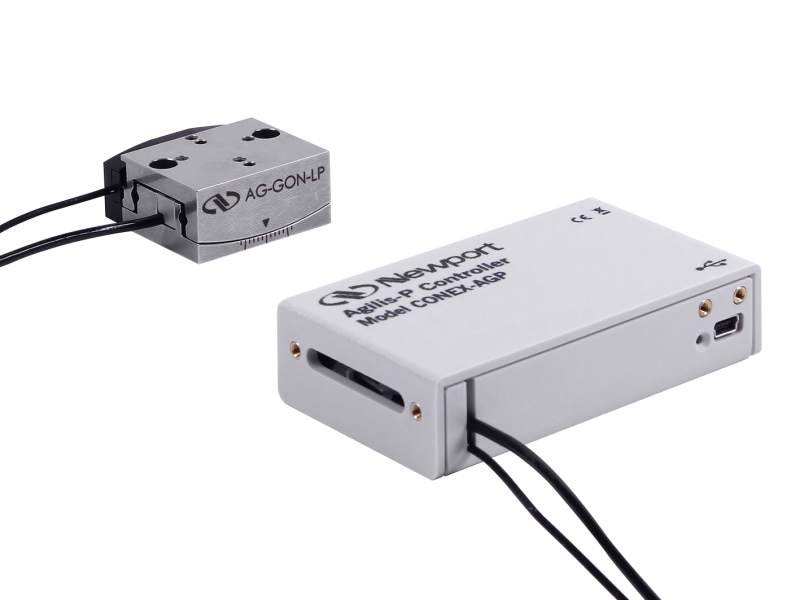

The CONEX-AG-GON series is a piezo motor driven goniometric cradle integrated with a closed-loop piezo motor controller/driver. It uses a piezo motor with a built-in encoder enabling high position repeatability.

Piezo goniometer with direct read encoder
Integrated with ultra-compact CONEX-CC controller and driver
Highly repeatable angular motion and high sensitivity (MIM)
Fast USB communication for Plug-and-Play

See All Features

Products

		Compare	Model	Compatibility	sortOrder	rankScore	ranking	Drawings, CAD & Specs		Stage Type	Maximum Speed	Minimum Incremental Motion	Availability	Featured Item	Price		Brand
		CONEX-AG-GON-LP Motorized Goniometer, Lower, Direct Encoder Feedback, CONEX™ Controller $2,619 In Stock	CONEX-AG-GON-LP Motorized Goniometer, Lower, Direct Encoder Feedback, CONEX™ Controller	UNIVERSAL	0.0	1.0	0.0		0.0	Goniometer	0.33°/s	0.25 mdeg	In Stock		$2,619		Newport
		CONEX-AG-GON-UP Motorized Goniometer, Upper, Direct Encoder Feedback, CONEX™ Controller $2,619 In Stock	CONEX-AG-GON-UP Motorized Goniometer, Upper, Direct Encoder Feedback, CONEX™ Controller	UNIVERSAL	0.0	1.0	0.0		0.0	Goniometer	0.45°/s	0.32 mdeg	In Stock		$2,619		Newport

Show All

Specifications

Models	CONEX-AG-GON-LP	CONEX-AG-GON-UP
Drive Type	Piezo Motor	Piezo Motor
Angular Range	-5.5 to 5.5°	-7.5 to 7.5°
Maximum Speed	0.33°/s	0.45°/s
Minimum Incremental Motion	0.25 mdeg	0.32 mdeg
Centered Load Capacity	3.5 N	3.5 N
Feedback	Direct read encoder	Direct read encoder
Encoder Resolution	0.09 mdeg	0.13 mdeg
Origin Repeatability	0.5 mdeg	0.64 mdeg
Uni-directional Repeatability, Guaranteed	0.5 mdeg	0.64 mdeg
Platform Size	40 x 40 mm	40 x 40 mm
Rotation Axis Height	55 mm	36 mm
Material	Stainless Steel	Stainless Steel
Thread Type	M3	M3

Specifications

Models	CONEX-AG-GON-LP	CONEX-AG-GON-UP
Drive Type	Piezo Motor	Piezo Motor
Angular Range	-5.5 to 5.5°	-7.5 to 7.5°
Maximum Speed	0.33°/s	0.45°/s
Minimum Incremental Motion	0.25 mdeg	0.32 mdeg
Centered Load Capacity	3.5 N	3.5 N
Feedback	Direct read encoder	Direct read encoder
Encoder Resolution	0.09 mdeg	0.13 mdeg
Origin Repeatability	0.5 mdeg	0.64 mdeg
Uni-directional Repeatability, Guaranteed	0.5 mdeg	0.64 mdeg
Platform Size	40 x 40 mm	40 x 40 mm
Rotation Axis Height	55 mm	36 mm
Material	Stainless Steel	Stainless Steel
Thread Type	M3	M3

Features

Build Tip-Tilt Platforms

Compact CONEX-AG-GON goniometric cradles have their rotation axis above the mounting platform for easy access and provides very compact tip-tilt platform when both upper(-UP) and lower(-LP) models are stacked.

Simple and Intuitive CONEX™ Software

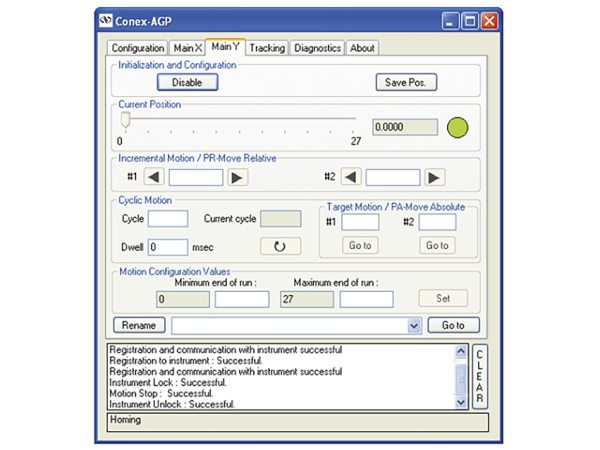

The controller comes with the familiar CONEX GUI, simple and intuitive to use and conveniently accessible via USB, which also supplies power to the controller. For out-of-the box control, the CONEX-AGP controller is preconfigured and delivered with an AG-GON-UP(LP) goniometric cradle. The CONEX-AGP closed-loop algorithm is a simplified version of the typical DC servo loop algorithm, and combined with the direct read encoder. For stability in-position, the user can adjust the deadband parameter that stops dithering when the stage is within a set position tolerance.

USB Communication with PC

Communication with the CONEX controller and PC is achieved via the integrated USB interface, providing a fast, ubiquitous communication protocol. Additionally, the USB also supplies power to the controller. For OEMs or security-sensitive applications, RS-232 and RS-485 are embedded onto the controller.

Simple Programming with Extensive Language Options

Advanced application programming is simplified by using mnemonic ASCII commands. Newport provides a free GUI that allows the user to access and execute over 60 intuitive ASCII commands. Alternatively, additional drivers are available for other languages including LabVIEW™ drivers and communication DLL’s.

Complete Your Conex System

CONEX-PS is an essential need to supply power to your Conex devices and it is purchased separately.

We also offer the CONEX-BP base plate which is used to securely mount up to 6 CONEX-AGP motion controllers to save you space and bring you convenience.
