  7. CONEX-AG-GON-LP

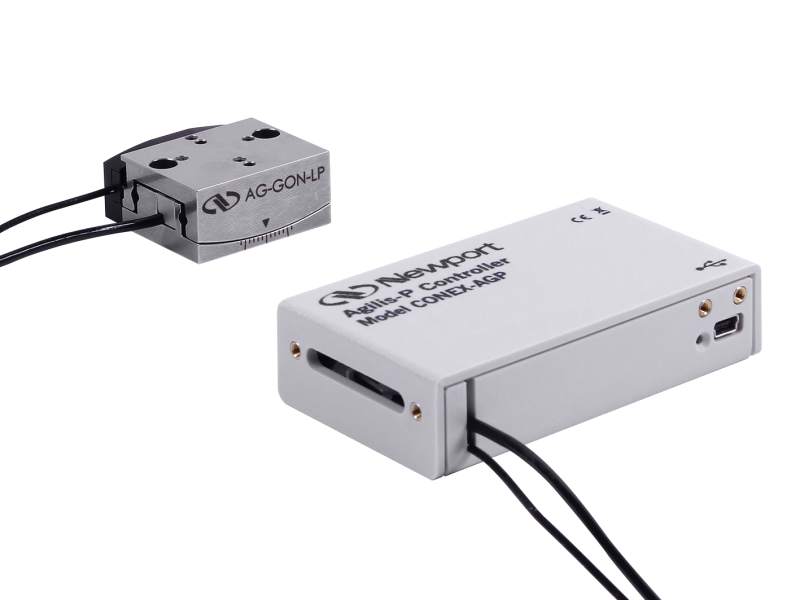

Motorized Goniometer, Lower, Direct Encoder Feedback, CONEX™ Controller

  • Stage Type
    Goniometer
  • Angular Range
    -5.5 to 5.5°
  • Centered Load Capacity
    3.5 N
  • Drive Type
    Piezo Motor
  • Maximum Speed
    0.33°/s
  • Minimum Incremental Motion
    0.25 mdeg
  • Uni-directional Repeatability, Guaranteed
    0.5 mdeg
  • Rotation Axis Height
    55 mm
  • Thread Type
    M3
  • Origin Repeatability
    0.5 mdeg
  • Feedback
    Direct read encoder
  • Encoder Resolution
    0.09 mdeg
  • Material
    Stainless Steel
  • Platform Size
    40 x 40 mm
  • Height
    19 mm
  • Weight
    0.171 kg
