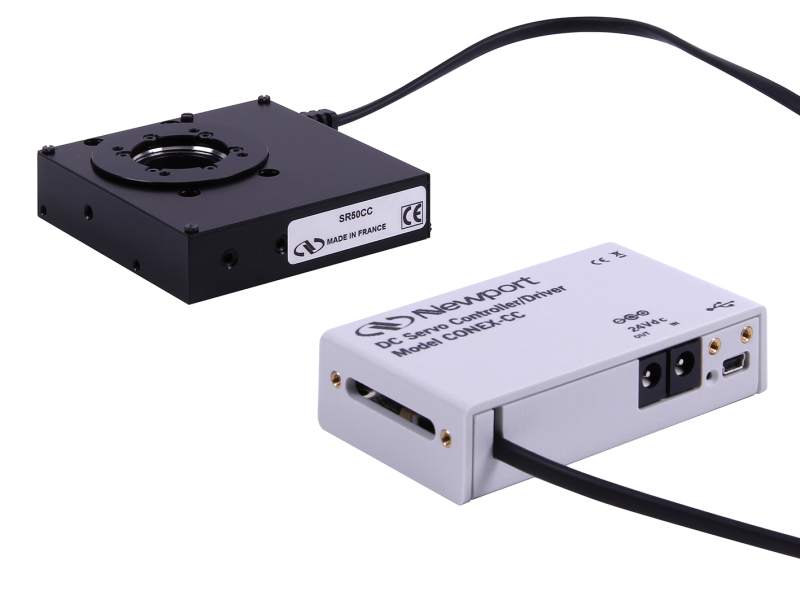

Motorized Rotation Stage, SR50CC Integrated with CONEX-CC Controller

Technical Specs

  • Travel Range
    360°
  • Drive Type
    DC Servo
  • Stage Type
    SR50CC
  • Maximum Speed
    4°/s
  • Maximum Torque
    0.4 Nm
  • Minimum Incremental Motion
    4.0 mdeg
  • Uni-directional Repeatability, Typical
    ±2.5 mdeg
  • Uni-directional Repeatability, Guaranteed
    ±5.0 mdeg
  • Absolute Accuracy (Typical)
    ±15 mdeg
  • Absolute Accuracy, Guaranteed
    ±30 mdeg
  • Bi-directional Repeatability, Typical
    ±25 mdeg
  • Wobble, Typical
    ±20 µrad
  • Wobble, Guaranteed
    ±50 µrad
  • Origin
    Optical, centered
  • Origin Repeatability
    ±25 mdeg
  • Feedback
    Motor mounted rotary encoder, 48 pts/rev
  • Encoder Resolution
    0.001°
  • Bearings
    Ball bearings
  • Cable Length
    3 m
  • Control Loop
    Floating point digital PID loop with velocity and friction feedforward, 2 kHz servo rate
  • Display
    Two-color LED
  • Programming
    40+ intuitive, 2 letter ASCII commands.
  • Drive Mechanism
    Ground worm gear
  • Material
    Aluminum
  • Inertia
    0.015 kg.m2
  • Aperture Diameter
    25.7 mm
  • Worm Gear Ratio
    1:70
  • Transversal Compliance
    160 µrad/Nm
  • Power Requirements
    24 VDC, 8 W
  • Computer Interfaces
    USB
  • Controller Dimensions
    93.2 x 53 x 23 mm
  • Weight
    0.3 kg
  • MTBF
    10,000 h (25% load, 30% Duty cycle)
  • RoHS
    Compliant
