CONEX-AG-GON-UP Motorized Goniometer

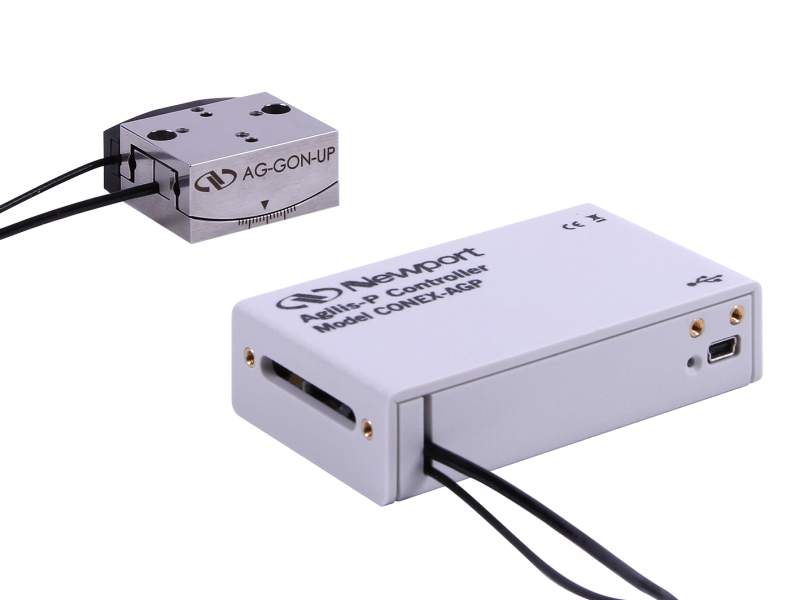

The CONEX-AG-GON-UP is a piezo motor driven goniometric cradle with direct encoder feedback and integrated closed-loop piezo motor controller/driver. The compact CONEX-AG-GON-UP has its rotation axis above the mounting platform for easy access and provides very compact tip-tilt platform when stacked with CONEX-AG-GON-LP. It uses piezo motor with a built-in encoder enabling high position repeatability and resolution.

Comes with a USB cable. For OEM applications, an optional retainer to secure the USB and power cables is available. In addition, RS232 and RS485 communication are available at the board level.

Specifications

Technical Specs

Stage Type

Goniometer
Angular Range

-7.5 to 7.5°
Centered Load Capacity

3.5 N
Drive Type

Piezo Motor
Maximum Speed

0.45°/s
Minimum Incremental Motion

0.32 mdeg
Uni-directional Repeatability, Guaranteed

0.64 mdeg
Rotation Axis Height

36 mm
Thread Type

M3

Origin Repeatability

0.64 mdeg
Feedback

Direct read encoder
Encoder Resolution

0.13 mdeg
Material

Stainless Steel
Platform Size

40 x 40 mm
Height

19 mm
Weight

0.171 kg

Stage Type

Goniometer
Angular Range

-7.5 to 7.5°
Centered Load Capacity

3.5 N
Drive Type

Piezo Motor
Maximum Speed

0.45°/s
Minimum Incremental Motion

0.32 mdeg
Uni-directional Repeatability, Guaranteed

0.64 mdeg
Rotation Axis Height

36 mm
Thread Type

M3

Origin Repeatability

0.64 mdeg
Feedback

Direct read encoder
Encoder Resolution

0.13 mdeg
Material

Stainless Steel
Platform Size

40 x 40 mm
Height

19 mm
Weight

0.171 kg
