77250B 1/8 m Hand Operated Monochromator

For general-purpose laboratory work or academic applications, the Oriel 77250B Series 1/8 m Hand Operated Monochromator is a smart and economical choice. This simple, manually operated 1/8 m instrument has good resolution, low stray light and is very versatile. A large family of slits and gratings are available to meet any application's resolution, throughput, and wavelength requirements.

Economical, fully assembled, pre-aligned monochromator
Ebert-Fastie design eliminates stray light
Manually operated smooth adjust knob sets wavelength output accurate to 1 nm
Integrated with a four-digit counter, with 0.1 nm resolution adjustment
Fixed slit and micrometer adjustable slit models available
Selectable wavelength ranges available with interchangeable gratings

See All Features

Show Filters:

Showing 2 of 2 total products

Compatibility:

	Compare	Description	Compatibility	Drawings, CAD & Specs	Slits	Wavelength Range	Avail.	Price

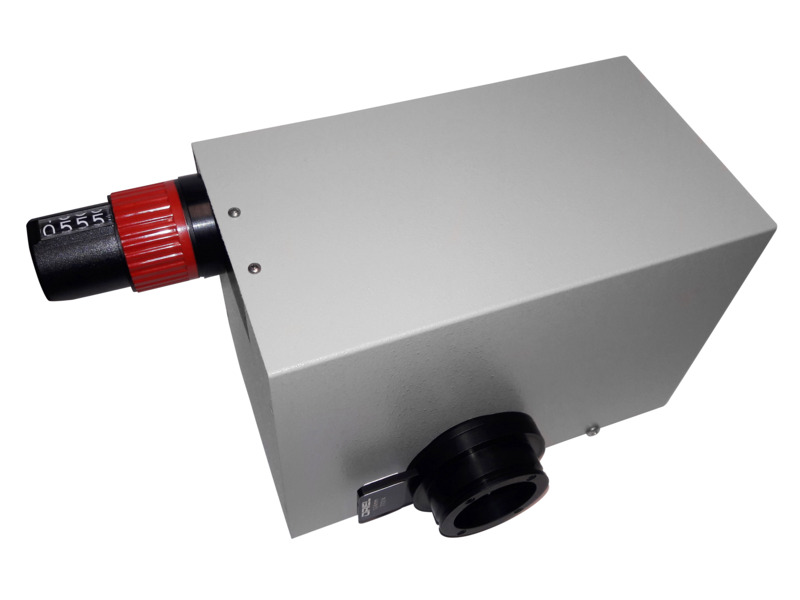

		77250B-FH1/8 m Monochromator, Hand Operated, Fixed Slit Assembly	UNIVERSAL		Fixed Slit Holders		6 Weeks	$4,769
		77250B-MC1/8 m Monochromator, Hand Operated, Micrometer Driven Slit Assembly	UNIVERSAL		Micrometer Adjustable		6 Weeks	$6,011

Features

Interchangeable Diffraction Gratings

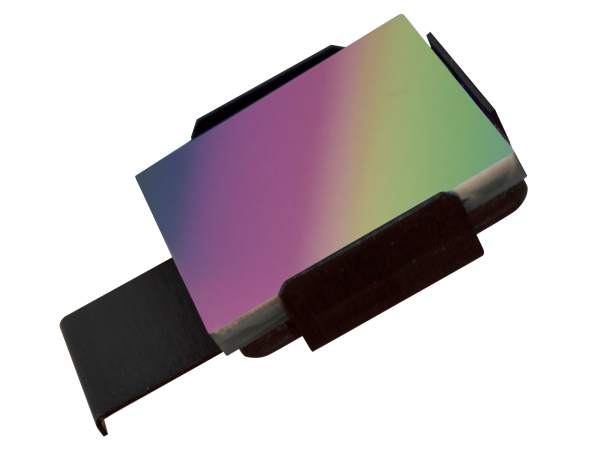

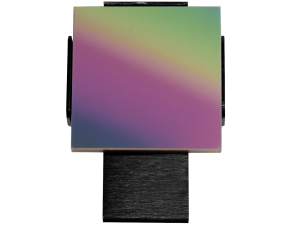

Each 30 x 30 mm diffraction grating comes pre-aligned in its own frame, allowing it precisely fit inside the instrument. The frame has a tab that allows the grating to be inserted or replaced inside the monochromator without touching its surface. Each grating comes with a protective cover and is labeled with the model number, making interchangeability and storage simple. The gratings listed on this page are for the 77250B and legacy 77250 monochromators only and need to be purchased separately.

77250B gratings cannot be used in any of our other monochromators.

Optical Design

The optical configuration of the 77250B results in high throughput and very low levels of stray light. The Ebert-Fastie design features two slits in line with each other, with an out of plane grating. The slit locations allow the complete optical system to be easily mounted to a bench or rail. The grating orientation eliminates re-entrant spectra.

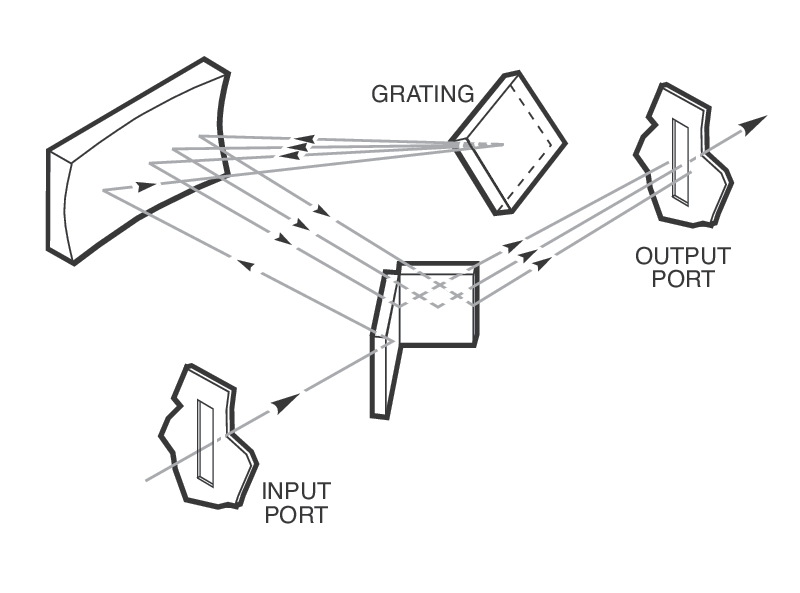

Optical configuration of 77250B 1/8 m Monochromator

Manual Wavelength Drive and Readout

The 77250B uses a smooth knob adjustment to position the grating. A four-digit counter displays the wavelength in nanometers when using a 1200 lines/mm grating. For gratings with different line densities, the wavelength shown on the display is multiplied by the appropriate scaling factor. The readout is set during calibration so that the wavelength indicated is correct to within 1 nm over the full range of a 1200 lines/mm grating. For greater accuracy, the readout can be reset within any restricted spectral region.

Fixed Slit Version Option

Fixed slits should be used for the utmost accuracy and repeatability, especially at high resolution. The slit width is one of the factors determining the resolution and throughput of the instrument, with a narrow slit providing higher resolution and lower throughput. Fixed slits are the best option when only a few slit sizes are required, as they are less expensive. The fixed slits slide into the pre-installed slit holders at the input and output ports. The width and height cannot be adjusted, but may be individually replaced with other slit sizes. Individual fixed slits are required to use the instrument and ordered separately to allow customized choices based on the needs of the application. Order two identical fixed slits for the 77250B monochromator.

A fixed slit is shown installed into the fixed slit holder 77294

Micrometer Adjustable Slit Option

Micrometer adjustable slits offer flexibility and high throughput. This type of slit is designed primarily for versatility and convenience in changing resolution and throughput. Micrometer adjustable slits do not provide the same level of accuracy and repeatability of fixed slits. A micrometer adjustable slit assembly is continuously variable from fully closed to 3 mm width. The narrowest practically achievable width is 4 µm. A height adjustment slide allows variation in the height from 2 to 12 mm. Two micrometer slit assemblies are pre-installed at the input and output ports.

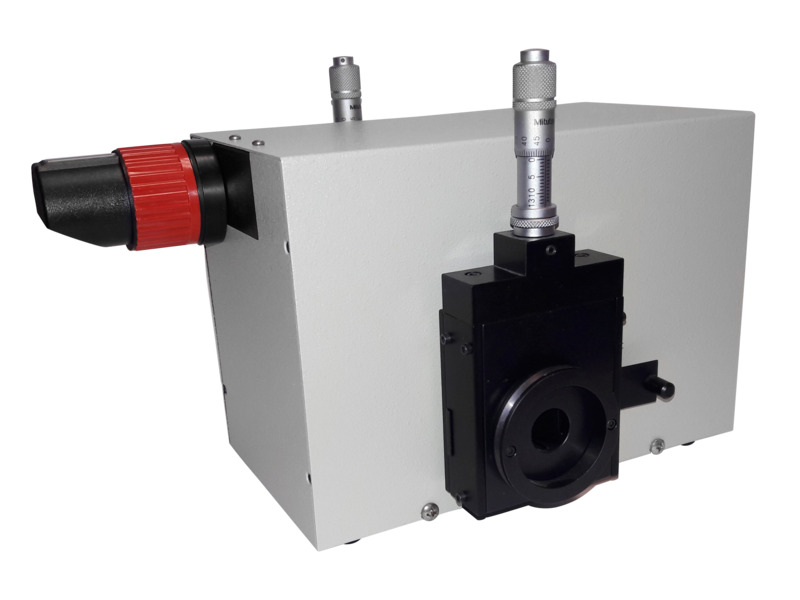

Micrometer driven slit assembly 74001

Delivered Fully Assembled and Aligned

The 77250B is factory assembled and pre-aligned so it is ready for immediate use. Micrometer adjustable slits or fixed slit holders are installed at the input and output ports. Each diffraction grating is carefully aligned and bonded to its holder. Both the grating holder and the instrument are designed with precise mechanical tolerances, allowing gratings to be easily installed and exchanged at any time.

Monochromator Mounting

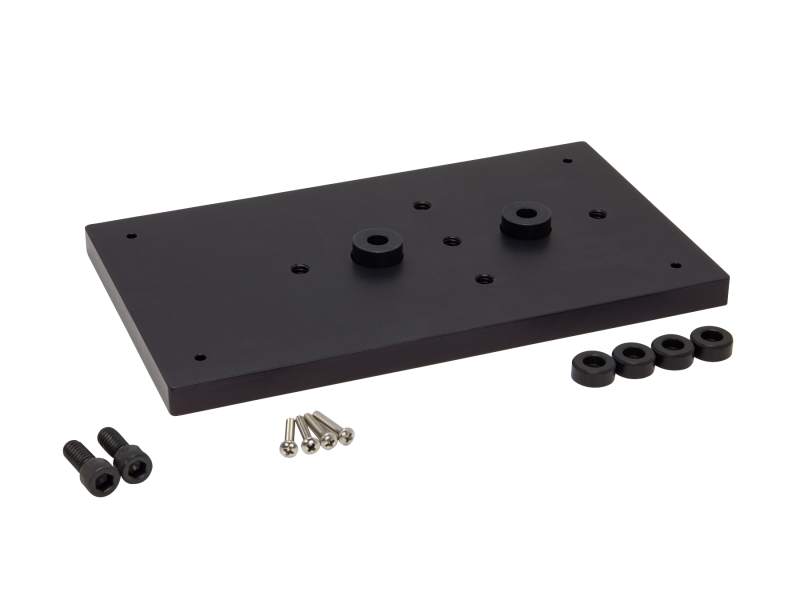

The optional mounting plate can be used to secure a 77250B monochromator to an imperial optical table. The ability to mount the monochromator simplifies setup and alignment of the optical system. The mounting plate also helps ensure consistent results over time, as the monochromator cannot be accidentally moved out of position. The plate adds 0.25 inch [6.35 mm] to the optical height. Threaded holes on the mounting surface of the monochromator also allow the instrument to be optical rod mounted, if desired.

Sensor Integration

Oriel's come with a standard 1.5-inch series flange, allowing instant light-tight connectivity to our monochromators. These sensors are operated in the photovoltaic (unbiased) mode to provide the lowest noise for DC and low frequency operation since it avoids the shot noise associated with bias currents. We offer amplified and unamplified versions with large active areas to make signal capture easy. Additional options include NIST traceable calibrated models and Thermoelectric (TE) cooled options.

Accessories

Fixed Slits

Description	Compatibility	Avail.	Price
77219Fixed Slit, 50 µm Width, 6 mm Height	UNIVERSAL	4 Weeks	$340
77218Fixed Slit, 120 µm Width, 18 mm Height	UNIVERSAL	In Stock	$200
77217Fixed Slit, 280 µm Width, 18 mm Height	UNIVERSAL	In Stock	$205
77216Fixed Slit, 600 µm Width, 18 mm Height	UNIVERSAL	In Stock	$205
77215Fixed Slit, 760 µm Width, 18 mm Height	UNIVERSAL	In Stock	$190
77214Fixed Slit, 1240 µm Width, 18 mm Height	UNIVERSAL	In Stock	$200
77213Fixed Slit, 1.56 mm Width, 18 mm Height	UNIVERSAL	Contact Us	$190
77212Fixed Slit, 3.16 mm Width, 18 mm Height	UNIVERSAL	3 Weeks	$200
77211Fixed Slit, 6.32 mm Width, 18 mm Height	UNIVERSAL	4 Weeks	$200
77221Fixed Slit, 50 µm Width, 3 mm Height	UNIVERSAL	Contact Us	$355
77728Fixed Slit, 100 μm Width, 3 mm Height	UNIVERSAL	5 Weeks	$200
77730Fixed Slit, 200 μm Width, 3 mm Height	UNIVERSAL	Contact Us	$200

Diffraction Gratings

Compare	Description	Compatibility	Avail.	Price
$Diffraction Gratings for 77250 and 77250B Monochromators$	7731077250 Monochromator Grating, Holographic, 3600 l/mm, 300 nm blaze, 250-330 nm	UNIVERSAL	6 Weeks	$520
$Diffraction Gratings for 77250 and 77250B Monochromators$	7730877250 Monochromator Grating, Ruled, 2400 l/mm, 275 nm blaze, 200-500 nm	UNIVERSAL	6 Weeks	$520
$Diffraction Gratings for 77250 and 77250B Monochromators$	7730977250 Monochromator Grating, Holographic, 1800 l/mm, 560 nm blaze, 320-670 nm	UNIVERSAL	Contact Us	$520
$Diffraction Gratings for 77250 and 77250B Monochromators$	7729677250 Monochromator Grating, Holographic, 1200 l/mm, 240 nm blaze, 200-600 nm	UNIVERSAL	In Stock	$520
$Diffraction Gratings for 77250 and 77250B Monochromators$	7729877250 Monochromator Grating, Ruled, 1200 l/mm, 360 nm blaze, 200-1000 nm	UNIVERSAL	6 Weeks	$410
$Diffraction Gratings for 77250 and 77250B Monochromators$	7730677250 Monochromator Grating, Ruled, 1200 l/mm, 750 nm blaze, 475-1000 nm	UNIVERSAL	6 Weeks
$Diffraction Gratings for 77250 and 77250B Monochromators$	7730477250 Monochromator Grating, Ruled, 600 l/mm, 225 nm blaze, 200-400 nm	UNIVERSAL	6 Weeks	$410
$Diffraction Gratings for 77250 and 77250B Monochromators$	7730577250 Monochromator Grating, Ruled, 600 l/mm, 700 nm blaze, 450-2000 nm	UNIVERSAL	6 Weeks
$Diffraction Gratings for 77250 and 77250B Monochromators$	7729977250 Monochromator Grating, Ruled, 600 l/mm, 1000 nm blaze, 650-2000 nm	UNIVERSAL	In Stock	$410
$Diffraction Gratings for 77250 and 77250B Monochromators$	7730077250 Monochromator Grating, Ruled, 300 l/mm, 1700 nm blaze, 1100-2400 nm	UNIVERSAL	6 Weeks	$410
$Diffraction Gratings for 77250 and 77250B Monochromators$	7731777250 Monochromator Grating, Ruled, 150 l/mm, 800 nm blaze, 425-1600 nm	UNIVERSAL	Contact Us
$Diffraction Gratings for 77250 and 77250B Monochromators$	7730177250 Monochromator Grating, Ruled, 150 l/mm, 4000 nm blaze, 2500-8000 nm	UNIVERSAL	6 Weeks	$410
$Diffraction Gratings for 77250 and 77250B Monochromators$	7730277250 Monochromator Grating, Ruled, 75 l/mm, 8 um blaze, 4.5-20 um	UNIVERSAL	Contact Us	$410
$Diffraction Gratings for 77250 and 77250B Monochromators$	7730377250 Monochromator Grating, Ruled, 50 l/mm, 12 um blaze, 7-23 um	UNIVERSAL	6 Weeks	$410

Optional Accessories

Description	Compatibility	Avail.	Price
77387Mounting Kit, 77250 and 77250B Monochromators, Imperial	UNIVERSAL	In Stock	$340
OAP-ADAPTParabolic Mirror Adapter, 1.5 in. Series Flange	UNIVERSAL	Contact Us	$605

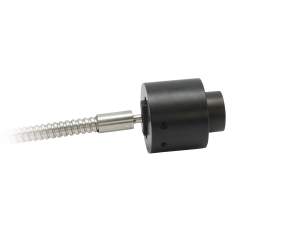

RF-ADAPTOptical Fiber Adapter, Monochromator, Rectangular Fiber Bundle	UNIVERSAL	5 Weeks	$455
71260Optical Filter Holder, Quick Change, 1.75 - 2 in., 1.6 in. Clear Aperture	UNIVERSAL	4 Weeks	$365
7124Filter Adapter, 1 inch Filter for 71260 Holder	UNIVERSAL	In Stock	$105
USFW-100Universal Filter Wheel, Flange Mount, Motorized	UNIVERSAL	In Stock	$1,790
