Compare Model Drawings, CAD & Specs Availability Price
74001
Micrometer Driven Slit Assembly, Monochromators and Spectrographs
$985
4 Weeks
 74001 Micrometer Driven Slit Assembly, Monochromators and Spectrographs
4 Weeks
 $985
74115B
Motorized Driven Slit Assembly, CS260B Monochromators
Contact Us
 74115B Motorized Driven Slit Assembly, CS260B Monochromators
Contact Us
77294

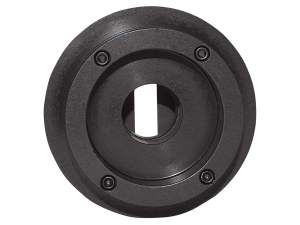

Fixed Slit Holder, Monochromators and Spectrographs
$250
In Stock
 77294 Fixed Slit Holder, Monochromators and Spectrographs
In Stock
 $250
77721
Fixed Slit Holder, MS257
$445
In Stock
 77721 Fixed Slit Holder, MS257
In Stock
 $445

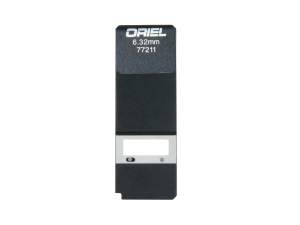

77211
Fixed Slit, 6.32 mm Width, 18 mm Height
$200
4 Weeks
 77211 Fixed Slit, 6.32 mm Width, 18 mm Height
4 Weeks
 $200
77212
Fixed Slit, 3.16 mm Width, 18 mm Height
$200
3 Weeks
 77212 Fixed Slit, 3.16 mm Width, 18 mm Height
3 Weeks
 $200
77213
Fixed Slit, 1.56 mm Width, 18 mm Height
$190
Contact Us
 77213 Fixed Slit, 1.56 mm Width, 18 mm Height
Contact Us
 $190
77214
Fixed Slit, 1240 µm Width, 18 mm Height
$200
In Stock
 77214 Fixed Slit, 1240 µm Width, 18 mm Height
In Stock
 $200
77215

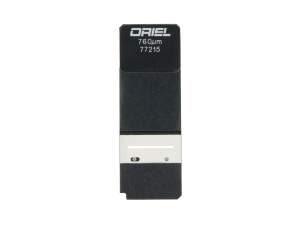

Fixed Slit, 760 µm Width, 18 mm Height
$190
In Stock
 77215 Fixed Slit, 760 µm Width, 18 mm Height
In Stock
 $190
77216

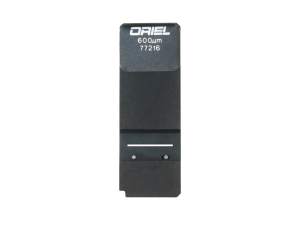

Fixed Slit, 600 µm Width, 18 mm Height
$205
In Stock
 77216 Fixed Slit, 600 µm Width, 18 mm Height
In Stock
 $205
77217

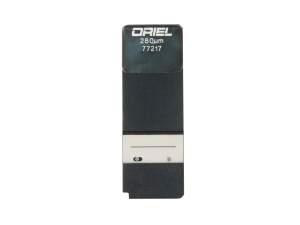

Fixed Slit, 280 µm Width, 18 mm Height
$205
1 Week
 77217 Fixed Slit, 280 µm Width, 18 mm Height
1 Week
 $205

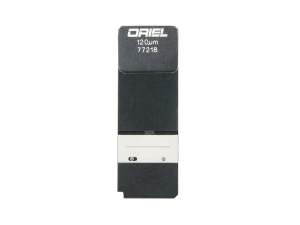

77218
Fixed Slit, 120 µm Width, 18 mm Height
$200
In Stock
 77218 Fixed Slit, 120 µm Width, 18 mm Height
In Stock
 $200
77219
Fixed Slit, 50 µm Width, 6 mm Height
$340
4 Weeks
 77219 Fixed Slit, 50 µm Width, 6 mm Height
4 Weeks
 $340
77220
Fixed Slit, 25 µm Width, 3 mm Height
$470
In Stock
 77220 Fixed Slit, 25 µm Width, 3 mm Height
In Stock
 $470
77221

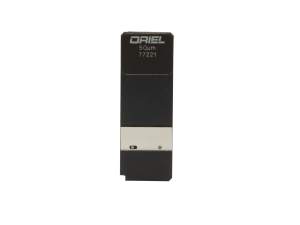

Fixed Slit, 50 µm Width, 3 mm Height
$355
77221 Fixed Slit, 50 µm Width, 3 mm Height $355
77222
Fixed Slit, 10 µm Width, 2 mm Height
$460
Contact Us
 77222 Fixed Slit, 10 µm Width, 2 mm Height
Contact Us
 $460
77725

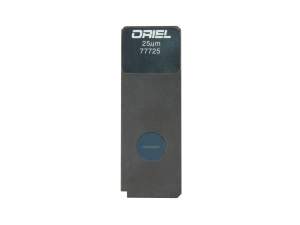

Fixed Slit, 25 μm Width, 6 mm Height
$460
1 Week
 77725 Fixed Slit, 25 μm Width, 6 mm Height
1 Week
 $460
77728
Fixed Slit, 100 μm Width, 3 mm Height
$200
5 Weeks
 77728 Fixed Slit, 100 μm Width, 3 mm Height
5 Weeks
 $200
77729
Fixed Slit, 100 µm Width, 10 mm Height
$200
Contact Us
 77729 Fixed Slit, 100 µm Width, 10 mm Height
Contact Us
 $200

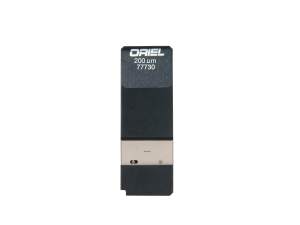

77730
Fixed Slit, 200 μm Width, 3 mm Height
$200
Contact Us
 77730 Fixed Slit, 200 μm Width, 3 mm Height
Contact Us
 $200

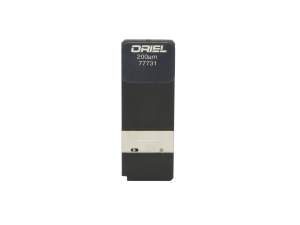

77731
Fixed Slit, 200 µm Width, 10 mm Height
$200
3 Weeks
 77731 Fixed Slit, 200 µm Width, 10 mm Height
3 Weeks
 $200
77732

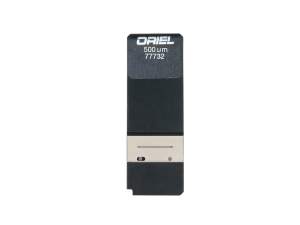

Fixed Slit, 500 μm Width, 15 mm Height
$200
5 Weeks
 77732 Fixed Slit, 500 μm Width, 15 mm Height
5 Weeks
 $200
77733
Fixed Slit, 1000 µm Width, 15 mm Height
$200
Contact Us
 77733 Fixed Slit, 1000 µm Width, 15 mm Height
Contact Us
 $200

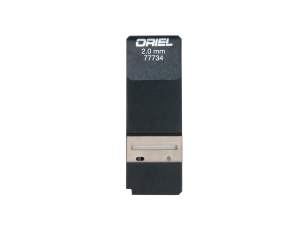

77734
Fixed Slit, 2000 µm Width, 20 mm Height
$330
1 Week
 77734 Fixed Slit, 2000 µm Width, 20 mm Height
1 Week
 $330

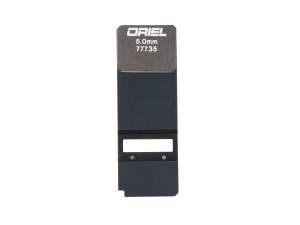

77735
Fixed Slit, 5000 µm Width, 20 mm Height
$200
Contact Us
 77735 Fixed Slit, 5000 µm Width, 20 mm Height
Contact Us
 $200

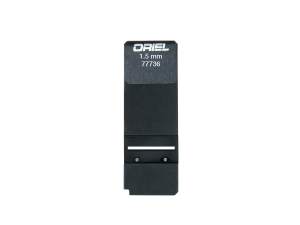

77736
Fixed Slit, 5000 µm Width, 15 mm Height
$200
4 Weeks
 77736 Fixed Slit, 5000 µm Width, 15 mm Height
4 Weeks
 $200

Features

Fixed slits for high accuracy and repeatability

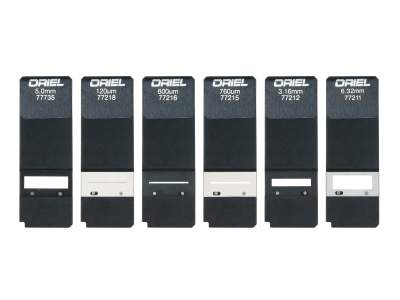

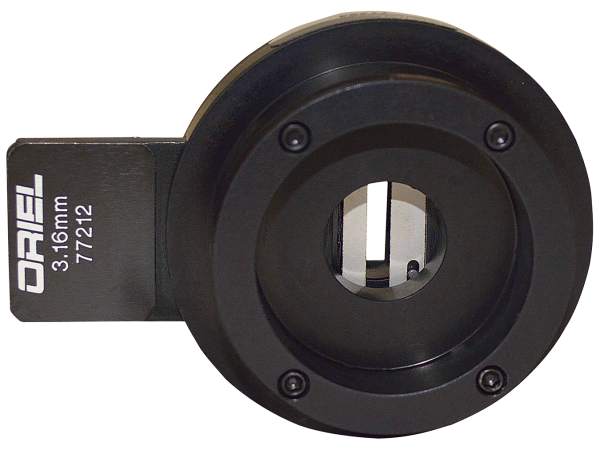

Fixed slits are a low cost alternative with excellent repeatability and are a good choice when only a few slit sizes are required. Avaialble in widths from 10 µm to 6.3 mm, they slide into the holders at all instrument ports, with the exception of those ports configured to mount a camera. The slit holders are installed by Newport during calibration of the instrument. The width and height cannot be adjusted but may be individually replaced with other slit sizes. These fixed slits are sold separately to allow customized choices based on the needs of the application. When ordering, be sure to purchase fixed slits of the same model (i.e. same size) for the input port and output port(s). Each of the fixed slits is mounted in a precision machined slide which is inserted into the 77294 or 77721 fixed slit holder. Contact us for more information.

Micrometer adjustable slits for flexibility and high throughput

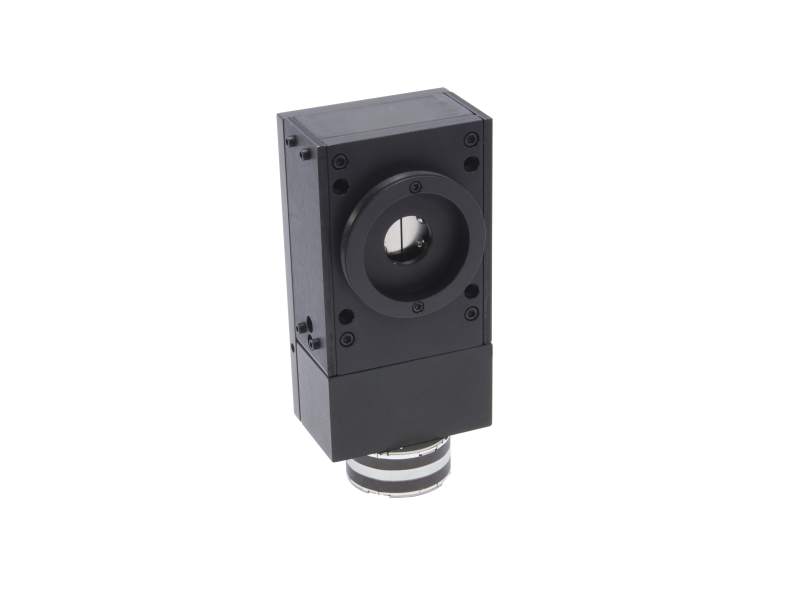

A micrometer adjustable slit assembly provides versatility and convenience in changing resolution and throughput. They are ideal when the utmost accuracy and repeatability is required, especially at high resolution. These adjustable slits are continuously variable from fully closed to 3 mm width, with a narrowest practically achievable width of 4 µm. (Note that optimum spectral resolution for any monochromator is obtained with short, narrow slits.) A height adjustment slide allows variation in the height from 2 to 12 mm.

Motorized slits for remote and automated applications

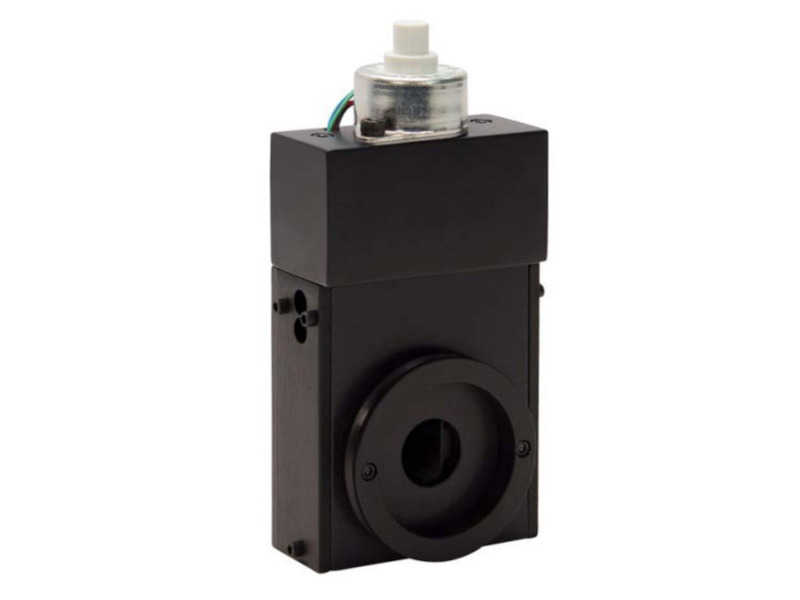

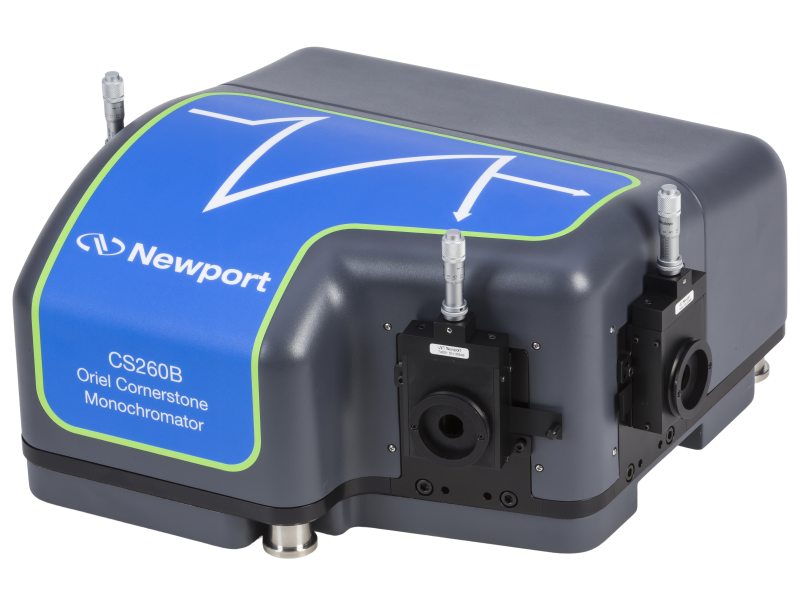

Exclusive to the CS260B monochromators, the 74115B motorized slits may be adjusted from 6 µm to 3 mm width in 6 µm steps. The slit width is controlled through the utility software, optional hand controller, optional TracQ Basic software or by using low level commands. An advantage of using motorized slits is that in addition to setting the individual slit widths remotely, the software can be configured to an automatic bandpass setting. The software adjusts the slit widths to maintain the chosen bandpass as scans are performed using multiple gratings and either output port. Motorized slits are only available on special order configuration Cornerstone 260B monochromators. Contact your Newport sales representative for more information.
