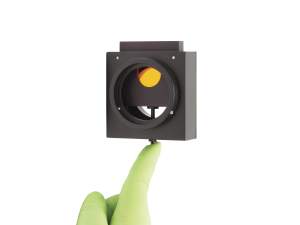

Flange mounted filter wheels feature standard 1.5-inch Oriel® male and female flanges that connect to a wide variety of instruments and accessories. The flanges result in light-tight coupling, to prevent background light from affecting measurements. The USFW-100 features full software control, as well as a manual push button interface for filter selection without a PC.
Flange mounting for light-tight connection
Holds order sorting filters for spectroscopy applications
USFW-100 features both software and manual push button control
Explore the features of the universal filter wheel model USFW-100 as depicted in this product video.
Flange Mounting for Light-Tight Connection
Background light affects the readings of measurements by creating an offset in the true readings. One method of preventing this issue is to configure a light-tight coupling system prior to taking measurements. Another method is to employ a chopper with a lock-in digital amplifier, such as Newport’s LIDA-SRS-KIT. This kit is able to separate the background noise from the desired signal. However, high levels of background light may still saturate the detector or camera being employed. The flanges on these filter wheels seal the light path, preventing unwanted signals from affecting measurements.

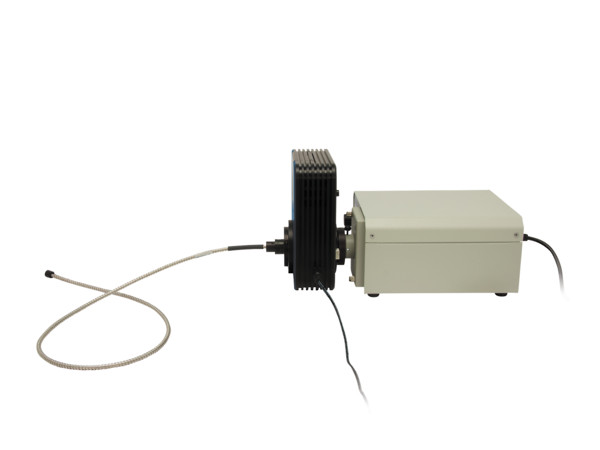

Compatible with Many Products
Each filter wheel features a 1.5-in. Oriel male connector on one side and a 1.5-in. Oriel female connector on the other side. This allows the filter wheel to be coupled to a wide variety of Oriel products. With the use of adapters LT10-UADPT
, these filter wheels are also compatible with the Newport Lens Tube (LT) flanging system. Larger filter wheels feature a #1/4-20 threaded hole to provide additional support by rod mounting the housings.

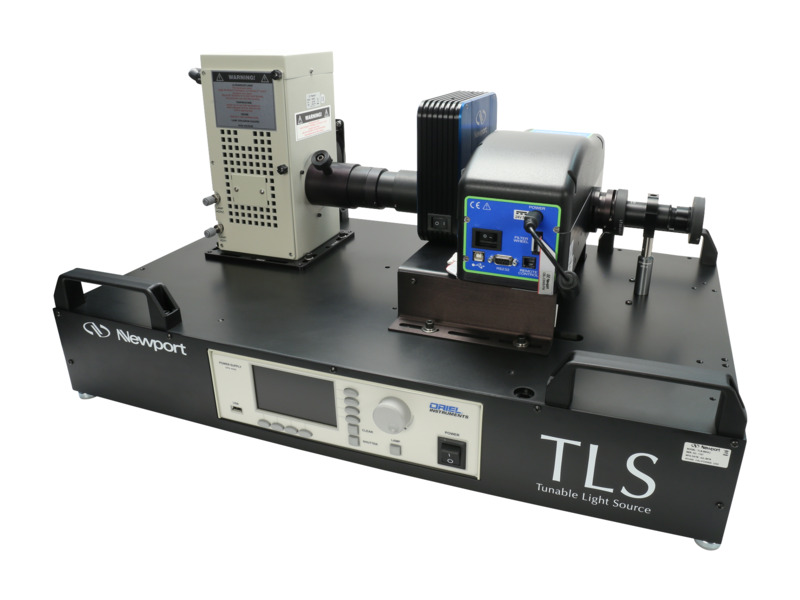

Powered and Controlled by Compatible Spectroscopy Instruments
The USFW-100 Motorized Filter Wheel has been designed to operate with the Oriel CS130B, CS260B, and legacy monochromators (CS130, CS260), as well as the legacy MS260i and MS257 imaging spectrographs. A ribbon cable required for power and communication is sold separately.
Software Controllable Motorized Models
The USFW-100 model is powered and controlled through its related monochromators and spectrographs. Control is achieved through use of the Mono Utility, Mono Term or optional TracQ Basic software. A filter may also be selected through use of the optional 74009
or 77709 hand controllers designed for use with Oriel monochromators and spectrographs. All compatible spectroscopy instruments include command sets for their filter wheels, which may be used to write customized code.
Stand-Alone Motorized Models for Maximum Flexibility

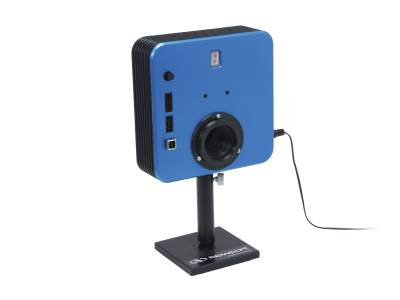

The USFW-100 is a single filter wheel housing with no separate controller box. Communication with a computer is established through a USB connection (USB cable
is included in the package), and its utility software is compatible with Windows 7, 8 and 10 (32 and 64 bit). The USFW-100 also features a pushbutton to manually advance the filter without requiring a computer. Please note that 1-in. lens tubes and a spanner wrench
LT10-UADPTAdapter, Oriel® 1.5-Inch Series Flange to Newport 1-Inch LT Series
UNIVERSAL
In Stock
$105
LT20-UADPTAdapter, Oriel® 1.5-Inch Series Flange to Newport 2-Inch LT Series
UNIVERSAL
In Stock
$365
LT10-05Lens Tube, 1 inch LT Series, 1/2 inch length
UNIVERSAL
In Stock
$20
LT10-WRSpanner Wrench, 1 inch LT Series Lens Tubes
UNIVERSAL
In Stock
$43
74009Hand Controller, Cornerstone Monochromators and MS260i Spectrographs
UNIVERSAL
4 Weeks
$1,560
70040Cable, RS-232 Serial Communication, 6 Foot (1.8 Meter) Length
UNIVERSAL
In Stock
$20
70044Cable, USB 2.0, Type A to Type B, 9.8 Foot (3 Meter) Length
UNIVERSAL
In Stock
$20
CBL-MS257-FWFilter Wheel Cable, for MS257 Monochromator and Imaging Spectrograph
UNIVERSAL
In Stock
$85
CBL-CSMS-FWCable, Filter Wheel to CS130B, CS260B and MS260i Spectroscopy Instruments
UNIVERSAL
1 Week
$85
Showing 1 to 9 of 9 entries
Recommended Order Sorting Filters

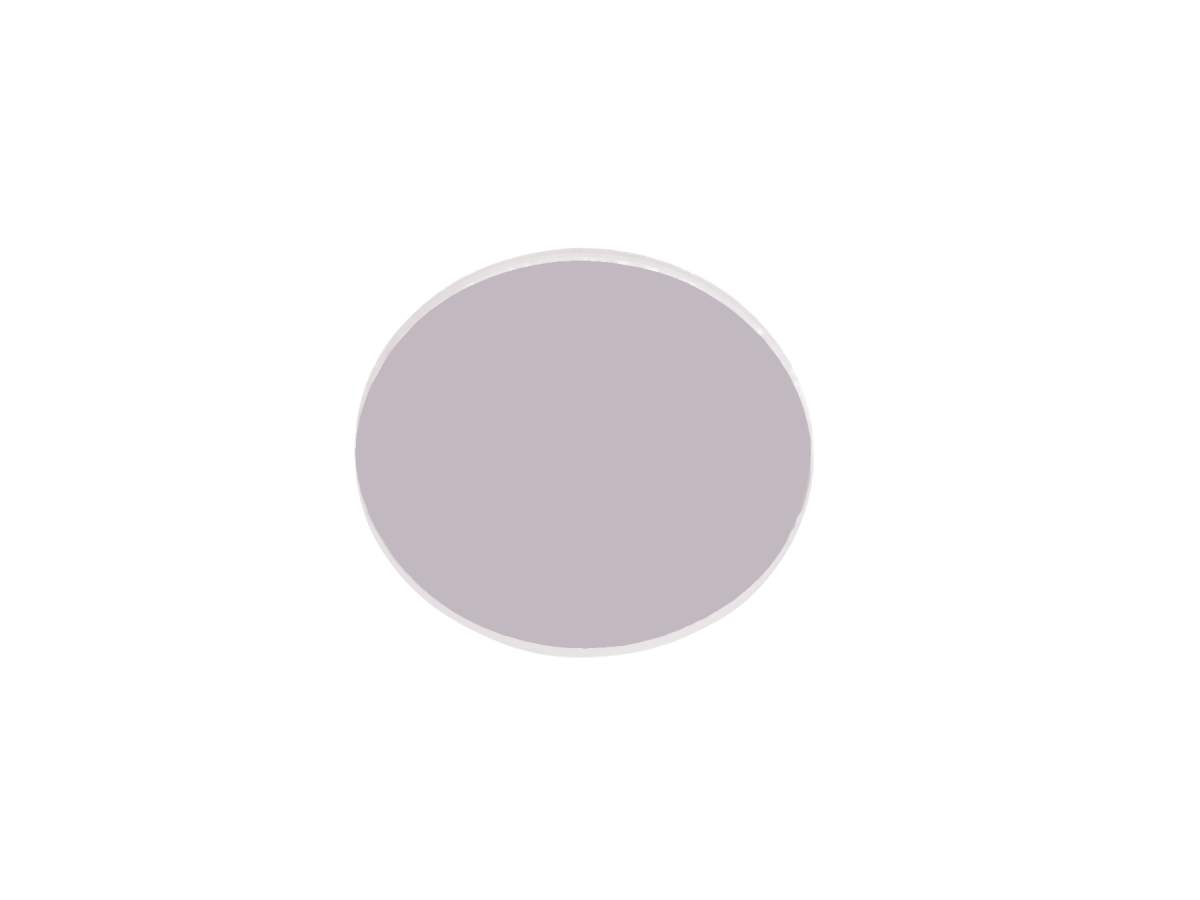

For blocking higher orders of radiation, Newport recommends our line of 1-in. (25.4-mm) diameter circular colored glass alternative longpass filters, with a selection shown below.
Compare
Description
Compatibility
Drawings, CAD & Specs
Avail.
Price
10CGA-305Longpass Filter, Colored-Glass Alternative, 25.4 mm, 305 nm Cut-on
UNIVERSAL
In Stock
$47
10CGA-360Longpass Filter, Colored-Glass Alternative, 25.4 mm, 360 nm Cut-on
UNIVERSAL
In Stock
$47
10CGA-400Longpass Filter, Colored-Glass Alternative, 25.4 mm, 400 nm Cut-on
UNIVERSAL
In Stock
$47
10CGA-455Longpass Filter, Colored-Glass Alternative, 25.4 mm, 455 nm Cut-on
UNIVERSAL
In Stock
$47
10CGA-515Longpass Filter, Colored-Glass Alternative, 25.4 mm, 515 nm Cut-on
UNIVERSAL
In Stock
$47
10CGA-570Longpass Filter, Colored-Glass Alternative, 25.4 mm, 570 nm Cut-on
UNIVERSAL
In Stock
$47
10CGA-630Longpass Filter, Colored-Glass Alternative, 25.4 mm, 630 nm Cut-on
UNIVERSAL
In Stock
$47
10CGA-695Longpass Filter, Colored-Glass Alternative, 25.4 mm, 695 nm Cut-on
UNIVERSAL
In Stock
$47
10CGA-760Longpass Filter, Colored-Glass Alternative, 25.4 mm, 760 nm Cut-on
UNIVERSAL
In Stock
$47
10CGA-800Longpass Filter, Colored-Glass Alternative, 25.4 mm, 800 nm Cut-on
UNIVERSAL
In Stock
$47
10CGA-850Longpass Filter, Colored-Glass Alternative, 25.4 mm, 850 nm Cut-on
UNIVERSAL
In Stock
$47
10CGA-1000Longpass Filter, Colored-Glass Alternative, 25.4 mm, 1000 nm Cut-on
