Optical Filter Holder, Quick Change, 1.75 - 2 in., 1.6 in. Clear Aperture
Optical Filter Holder, Quick Change, 1.75 - 2 in., 1.6 in. Clear Aperture
Model: 71260
5 Weeks
Product Series Overview

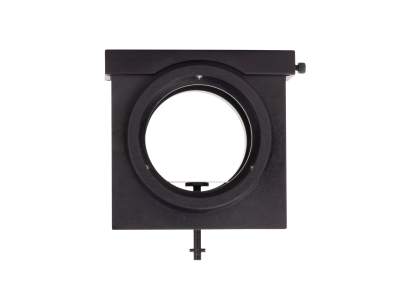

Light Source Filter HoldersThe 71260 Quick Change Filter Holder provide the ability to quickly insert and remove filters in the middle of an optical train. A plunger on the bottom of the holder pops the filter up for easy removal. A light tight cover prevents leakage of ambient light into the enclosed optical path. It holds 1.75 to 2 inch (43 to 51 mm) circular or square filters and has a 1.6 inch clear aperture. 1.5 Inch Series flanges.
Specifications
- TypeQuick Change Filter Holder
- Flange Series Size1.5 Inch
- Filter Size43 - 50.8 mm
- Clear Aperture40 mm
Related Products
Accessories
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|

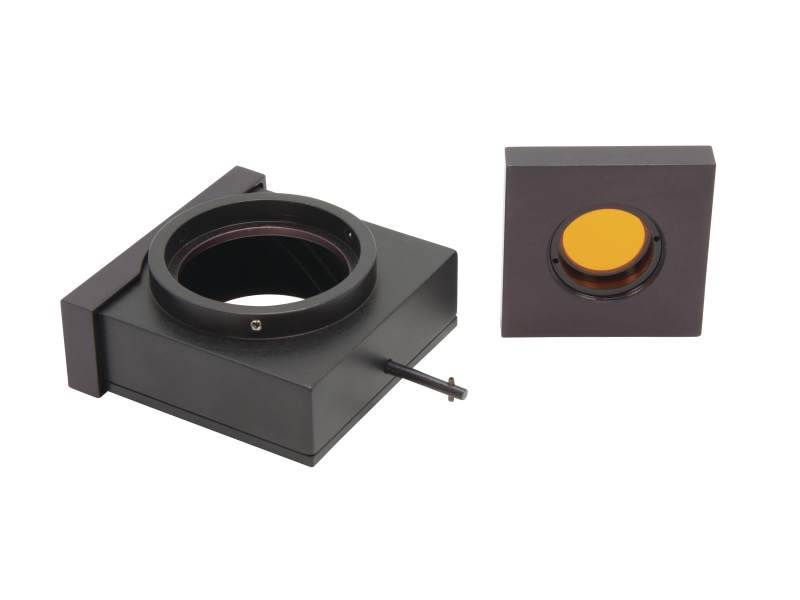

 | 7124Filter Adapter, 1 inch Filter for 71260 Holder | In Stock |
