LineSpec™ CCD Array Spectrometer

Features
Accessories
Resources
Contact Us

Overview

LineSpec spectrometers are made up of our popular MS125™ 1/8 m spectrograph and an external 2048 CCD array. Gratings and slits are easily interchangeable, re-defining the usable spectral range and resolution, as application needs change. It’s versatility and performance makes it ideally suited for non-imaging research applications. It’s small size and simple design make it suitable for OEM applications, in custom configurations.

Interchangeable slits and gratings
Complete spectrograph packages with 2048 CCD linear array
Wide range of compatible diffraction gratings
Low stray light - no re-entrant spectra
Impressive 0.22 nm resolution (1200 l/mm grating & 2048 element CCD)
User friendly spectral calibration

See All Features

Features

Complete Spectrometer Package

Complete packaged 78877 Spectrometers are made up of the 77400 MS125™ 1/8 m spectrograph, the 78855 Linear CCD array, and a choice of grating and input slit. Gratings and slits are interchangeable to re-define the usable spectral range and resolution, as experimental needs change. This enables a single solution to become a customizable UV spectrometer, UV-VIS spectrometer, or VIS-IR spectrometer. Please specify the grating and slit to complete the 78877 spectrometer purchase.

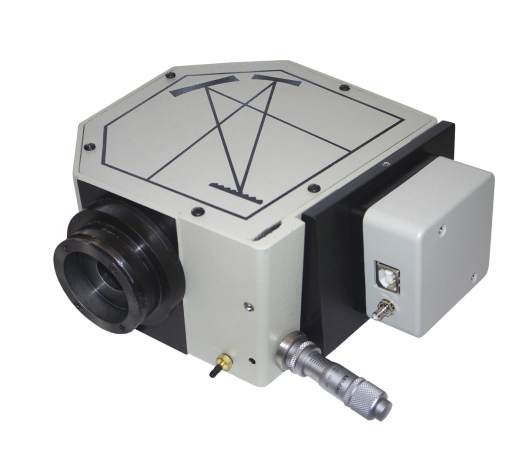

Model 78877 LineSpec Linear Array Spectrometer. (78855 LineSpec CCD Detector and MS125 Spectrograph)

LineSpec CCD Detector

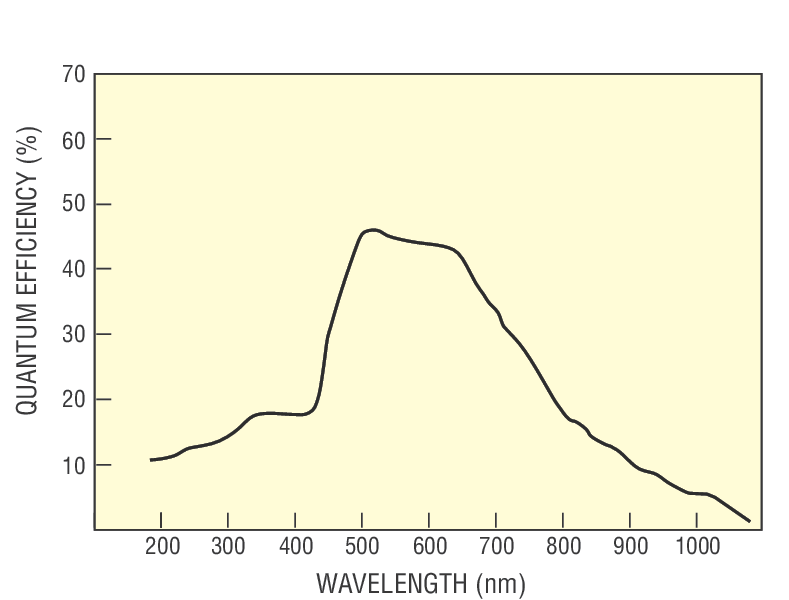

A key performance parameter for the CCD is the maximum S/N achievable by the detector. CCD sensors create high-quality, low-noise images. Compared to CMOS sensors, a CCD sensor is far less susceptible to noise, making them ideally suited to spectroscopy applications. In short, CCD detectors are optimum for low signal measurements.

Wide Range of Diffraction Grating Options

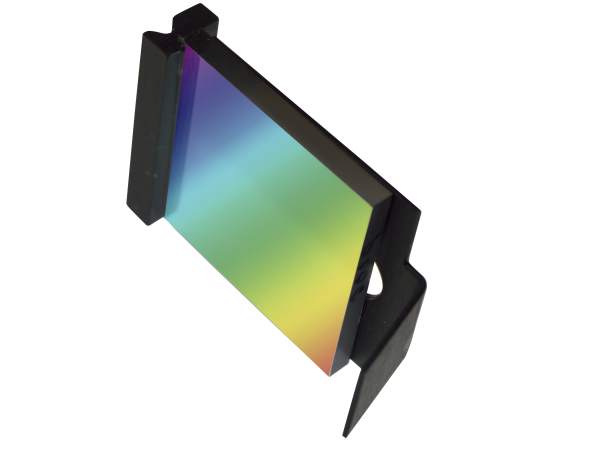

The Oriel^® MS125 spectrograph is designed to hold one grating at a time. Standard grating assemblies are available from UV to IR. All feature diffraction gratings produced by Richardson Gratings.

LineSpec Software

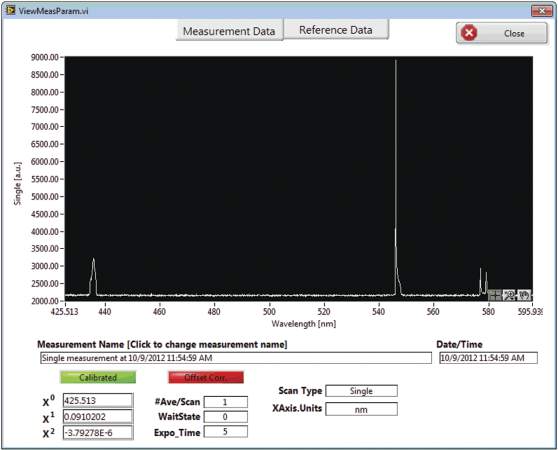

The LineSpec software (included with each spectrometer or stand alone array detector) is an intuitive instrument control and data acquisition software that runs under Windows XP and Windows 7 (32 or 64Bit). The software supports routine spectroscopic measurements and data acquisition, such as, continuous, single, or averaging scans, as well as absorption, transmission, and emission spectral measurements. We also supply optional LabVIEW™ Drivers.

Application Example - Transmittance Spectra

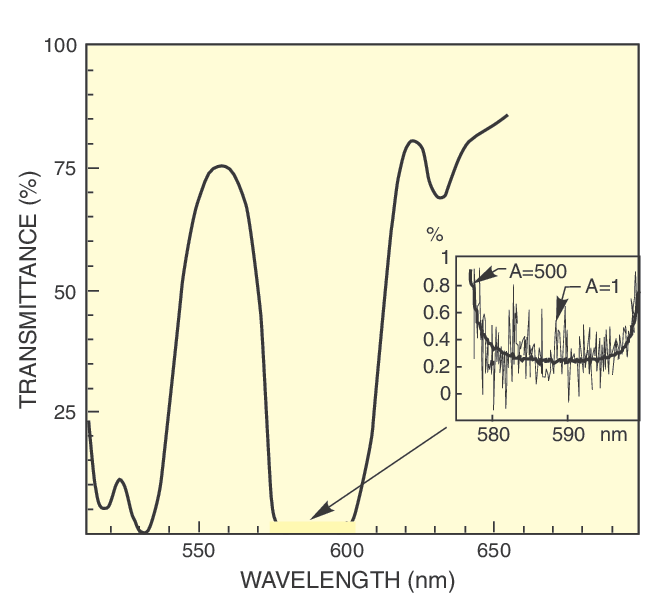

Transmittance spectra of BG36 Schott Glass Filter taken with the MS125™ Spectrograph used a 400 l/mm grating blazed at 500 nm, and a 50 µm input slit. Integration time = 50 ms, averaging = 1 and 500 (noted on the inset graph).

Calibration Accessory

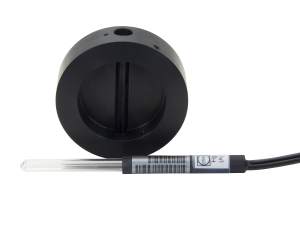

To ensure wavelength accuracy, we recommend using a known set of spectral lines, such as our 78822 HgAr Calibration Set, and letting the LineSpec software fit a standard quadratic regression through the known peaks. The 78822 includes a power supply, a mounting adapter to couple the lamp to the MS125, and a HgAr calibration lamp.

Accessories

Fixed Slits

Search:

Description	Compatibility	Avail.	Price
77728 Fixed Slit, 100 μm Width, 3 mm Height	UNIVERSAL	5 Weeks	$200.00
77220 Fixed Slit, 25 µm Width, 3 mm Height	UNIVERSAL	In Stock	$470.00
77222 Fixed Slit, 10 µm Width, 2 mm Height	UNIVERSAL	Show	$460.00
77730 Fixed Slit, 200 μm Width, 3 mm Height	UNIVERSAL	Contact Us	$200.00
77221 Fixed Slit, 50 µm Width, 3 mm Height	UNIVERSAL	Show	$355.00

Showing 1 to 5 of 5 entries

Other Accessories

When ordering the model 78877 LineSpec spectrometer, the CCD model 78855 and adapter 77439 are included with the system.

Search:

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		70044 Cable, USB 2.0, Type A to Type B, 9.8 Foot (3 Meter) Length	UNIVERSAL		In Stock	$20.00

Showing 1 to 1 of 1 entries

Diffraction Gratings

All diffraction gratings are provided by Richardson Gratings

Search:

Description	Compatibility	Avail.	Price
77411 MS125 Grating, Ruled, 1200 lines/mm, 360 nm blaze, 200-1000 nm range	UNIVERSAL	Show	$445.00
77416 MS125 Grating, Ruled, 400 lines/mm, 325 nm blaze, 200-750 nm range	UNIVERSAL	Contact Us	$410.00
77420 MS125 Grating, Holographic, 2400 lines/mm, 400 nm blaze, 250-500 nm range	UNIVERSAL	6 Weeks
77417 MS125 Grating, Ruled, 400 lines/mm, 500 nm blaze, 275-1250 nm range	UNIVERSAL	Show	$445.00
77422 MS125 Grating, Ruled, 300 lines/mm, 270 nm blaze, 200-650 nm range	UNIVERSAL	6 Weeks	$445.00
77455 MS125 Grating, Ruled, 600 lines/mm, 1350 nm blaze, 800-1900 nm range	UNIVERSAL	6 Weeks
77410 MS125 Grating, Holographic, 1200 lines/mm, 240 nm blaze, 200-600 nm range	UNIVERSAL	6 Weeks
77412 MS125 Grating, Ruled, 1200 lines/mm, 750 nm blaze, 475-1000 nm range	UNIVERSAL	6 Weeks	$445.00
77413 MS125 Grating, Ruled, 600 lines/mm, 225 nm blaze, 200-400 nm range	UNIVERSAL	6 Weeks
77414 MS125 Grating, Ruled, 600 lines/mm, 370 nm blaze, 270-1000 nm range	UNIVERSAL	In Stock	$445.00
77415 MS125 Grating, Ruled, 600 lines/mm, 700 nm blaze, 450-2000 nm range	UNIVERSAL	Contact Us	$520.00
77419 MS125 Grating, Ruled, 2400 lines/mm, 275 nm blaze, 200-500 nm range	UNIVERSAL	6 Weeks	$445.00
77457 MS125 Grating, Ruled, 400 lines/mm, 1600 nm blaze, 900-2900 nm range	UNIVERSAL	6 Weeks	$410.00
77458 MS125 Grating, Ruled, 300 lines/mm, 1000 nm blaze, 575-2500 nm range	UNIVERSAL	In Stock	$410.00
77421 MS125 Grating, Holographic, 1800 lines/mm, 560 nm blaze, 320-670 nm range	UNIVERSAL	In Stock	$830.00
77464 MS125 Grating, Ruled, 1200 lines/mm, 500 nm blaze, 300-1000 nm range	UNIVERSAL	In Stock	$445.00
77465 MS125 Grating, Ruled, 600 lines/mm, 1000 nm blaze, 650-2000 nm range	UNIVERSAL	In Stock	$410.00
77459 MS125 Grating, Ruled, 246.16 lines/mm, 226 nm blaze, 190-450 nm range	UNIVERSAL	6 Weeks
77463 MS125 Grating, Ruled, 1200 lines/mm, 975 nm blaze, 350-1000 nm range	UNIVERSAL	6 Weeks	$410.00

Showing 1 to 19 of 19 entries
