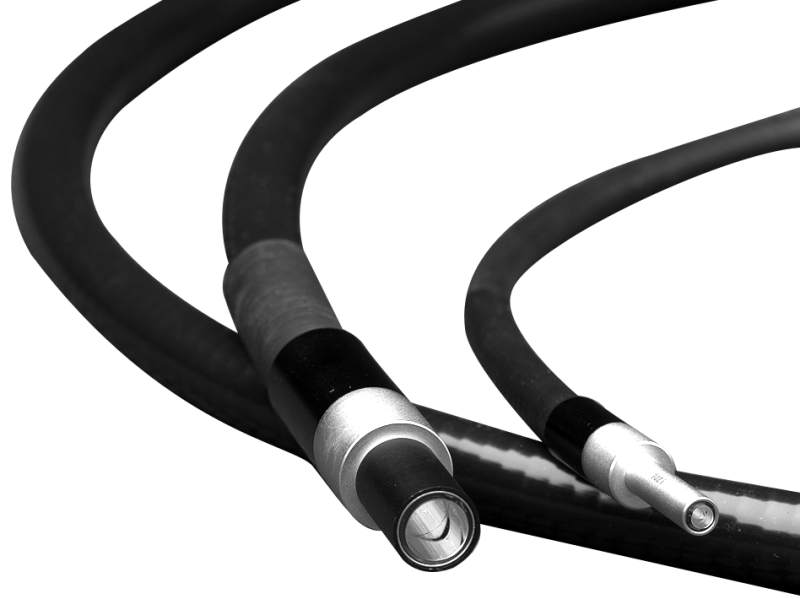

Liquid Light Guides

If greater light transmittance and throughput is valued instead of a wider transmittance range, a liquid light guide is an excellent alternative to traditional fiber bundles. These light guides are cheaper and provide greater durability than fiber bundles made of standard fused silica material. Oriel®offers liquid light for various wavelength regions.

High ultraviolet to near-infrared throughput
Large acceptance angle
Deep UV light guides available
Bifurcated and trifurcated versions

See All Features

Show Filters:

Showing 10 of 25 total products

Compatibility:

Description	Compatibility	Type	Transmittance Range	Core Diameter	Fiber Length	Numerical Aperture	Avail.	Price
77554Liquid Light Guide, 39.4 in., 300-650 nm, 0.12 in. Core, 0.59 NA	UNIVERSAL	Liquid Light Guide	300 - 650 nm	3.0 mm	1 m	0.59	Contact Us	$300
76841Liquid Light Guide, 79 in., 220-600 nm, 0.12 in. Core, 0.43 NA	UNIVERSAL	Liquid Light Guide	220 - 600 nm	3.0 mm	2 m	0.43	Contact Us	$1,250
76842Liquid Light Guide, 39.4 in., 220-600 nm, 0.2 in. Core, 0.43 NA	UNIVERSAL	Liquid Light Guide	220 - 600 nm	5.1 mm	1 m	0.43	Contact Us	$1,350
76843Liquid Light Guide, 79 in., 220-600 nm, 0.2 in. Core, 0.43 NA	UNIVERSAL	Liquid Light Guide	220 - 600 nm	5.1 mm	2 m	0.43	In Stock	$1,870
77555Liquid Light Guide, 79 in., 300-650 nm, 0.12 in. Core, 0.59 NA	UNIVERSAL	Liquid Light Guide	300 - 650 nm	3.0 mm	2 m	0.59	In Stock	$430
77556Liquid Light Guide, 39.4 in., 300-650 nm, 0.2 in. Core, 0.59 NA	UNIVERSAL	Liquid Light Guide	300 - 650 nm	5.1 mm	1 m	0.59	4 Weeks	$505
77557Liquid Light Guide, 79 in., 300-650 nm, 0.2 in. Core, 0.59 NA	UNIVERSAL	Liquid Light Guide	300 - 650 nm	5.1 mm	2 m	0.59	Contact Us	$645
77628Liquid Light Guide, 39.4 in., 300-650 nm, 0.3 in. Core, 0.59 NA	UNIVERSAL	Liquid Light Guide	300 - 650 nm	7.6 mm	1 m	0.59	4 Weeks	$705
77629Liquid Light Guide, 79 in., 300-650 nm, 0.3 in. Core, 0.59 NA	UNIVERSAL	Liquid Light Guide	300 - 650 nm	7.6 mm	2 m	0.59	5 Weeks	$1,045
76846Liquid Light Guide, Bifurcated, 300-650 nm, 0.12 in. Core, 39.4 in. Legs	UNIVERSAL	Bifurcated Liquid Light Guide	300 - 650 nm	3.0 mm	1 m	0.59	Contact Us	$1,745

Show All

Specifications

Transmittance Range	220-600 nm	300-650 nm	340-800 nm	420-2000 nm
Numerical Aperture	0.43	0.59	0.59	0.52
F/#	1.2	0.85	0.85	0.96
Acceptance Cone, 2a	50°	72°	72°	62°

Features

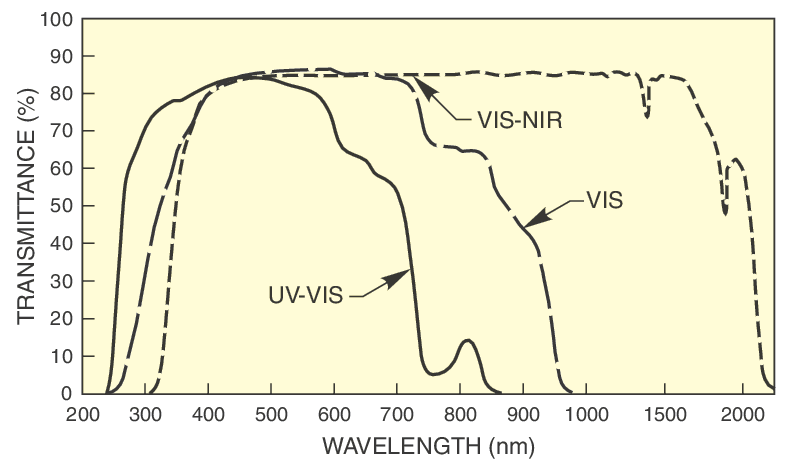

High ultraviolet to near-infrared throughput

Liquid light guides provide much greater transmittance than Fused Silica Fiber Bundles, do not have the risk of fiber breakage, and are less expensive. Data shown for 2 meter long light guides.

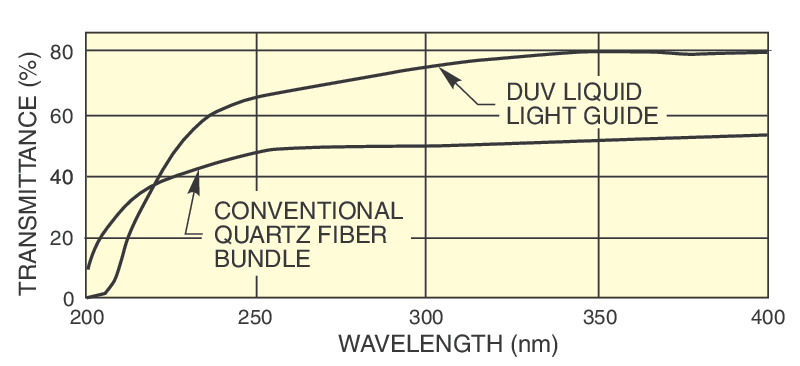

Deep UV Light Guides Available

Deep UV (DUV) liquid light guides capable of transmitting wavelengths down to 220 nm are available. These are helpful for transmitting the high UV intensity of an Arc Lamp or Deuterium Lamp. For small point sources 1 mm or less in size, a Solarization Resistant Fiber is recommended.

Bifurcated and Trifurcated Versions

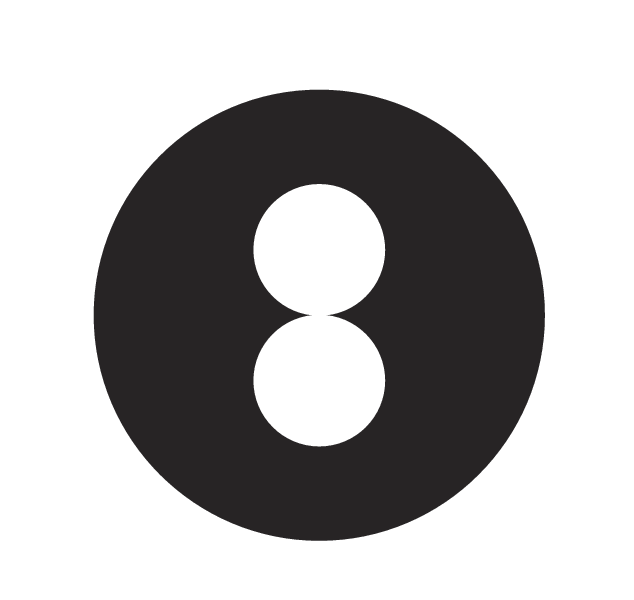

Front view of common end of a bifurcated liquid light guide – the end does not merge into a single circular core.

For dual source applications, bifurcated liquid light guides are available. The two cores are stacked atop each other in the common end, allowing for complete focus of each individual light source onto its own irradiance area. Trifurcated light guides are also available – contact us for more information.

Accessories

Fiber Bundle Mounts

Description	Compatibility	Avail.	Price

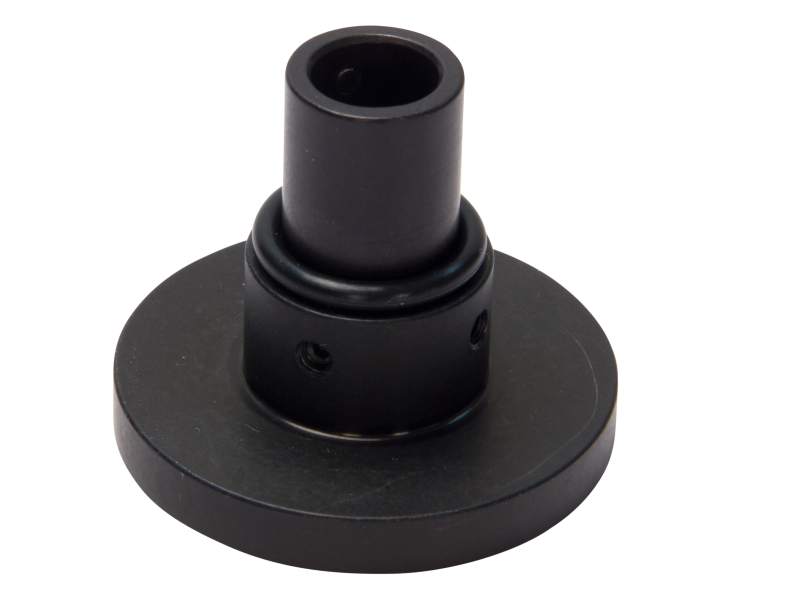

77817Fiber Bundle Mount, Circular Bundle to 1.5 Inch Male Flange	UNIVERSAL	In Stock	$145

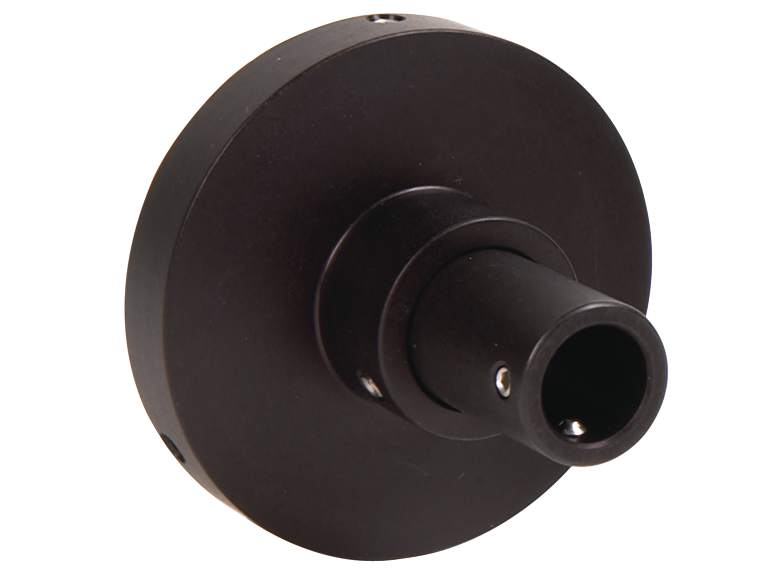

77357Fiber Bundle Mount, Circular Bundle to 1.5 Inch Female Flange	UNIVERSAL	3 Weeks	$105
77358Fiber Bundle Mount, Rectangular Bundle to 1.5 Inch Female Flange	UNIVERSAL	Contact Us	$560

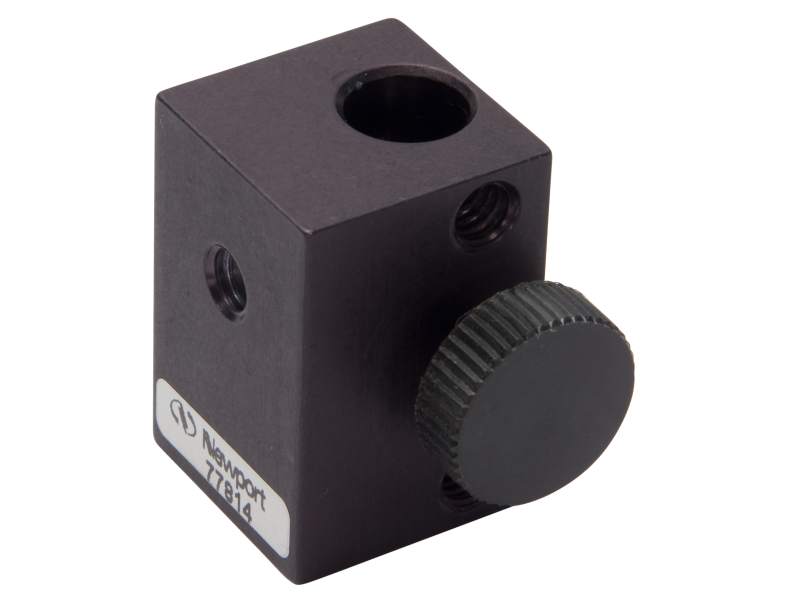

77814Fiber Bundle Holder, 11 mm, Optical Post Mounted	UNIVERSAL	4 Weeks	$170

Fiber Positioner Mount

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		77802Fiber Bundle Holder, Circular Bundle to 1.5 Inch Male Flange, XYZ Adjust	UNIVERSAL		Contact Us	$355

Monochromator Fiber Adapters

Description	Compatibility	Avail.	Price
77529F/# Matcher, XYZ Focus Adjustment, 1.5 Inch Female Flange	UNIVERSAL	Contact Us	$2,560
77860Optical Fiber Adapter, Monochromator, 11 mm Ferrules, Set Screws	UNIVERSAL	Contact Us	$170
77863Optical Fiber Adapter, Monochromator, 11 mm Ferrules, Quick Disconnect	UNIVERSAL	Contact Us	$520

Beam Probes

Description	Compatibility	Avail.	Price

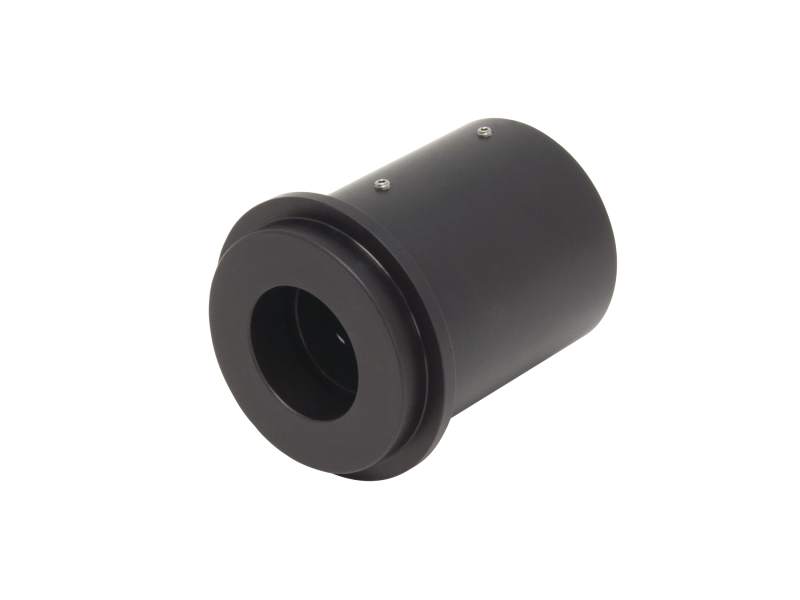

76595Collimating Beam Probe, Fiber Bundle, 25-150 mm, 1.5 Inch Flange	UNIVERSAL	4 Weeks	$1,045
76596Collimating Beam Probe, Fiber Bundle, 70-350 mm, 1.5 Inch Flange	UNIVERSAL	Contact Us	$625
76597Collimating Beam Probe, Fiber Bundle 150-650 mm, 2 Inch Flange	UNIVERSAL	Contact Us	$885
76600Collimating Beam Probe, Liquid Light Guide 25-40 mm, 1.5 Inch Flange	UNIVERSAL	3 Weeks	$415
76605Collimating Beam Probe, Liquid Light Guide, 40-50 mm, 1.5 Inch Flange	UNIVERSAL	3 Weeks	$665

Ferrules and Ferrule Converters

Description	Compatibility	Avail.	Price
77675Ferrule Converter, ST Termination to 11mm Standard Ferrule	UNIVERSAL	In Stock	$160

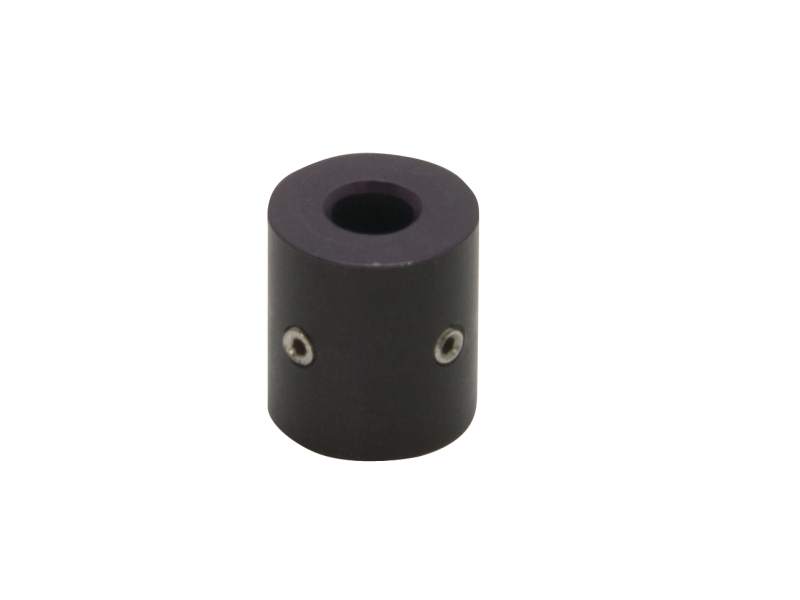

77663Fiber Bundle Ferrule, 11mm, 0.16 inch Inner Dia., 0.48 inch Length	UNIVERSAL	Contact Us	$25
77640Fiber Bundle Ferrule, 11mm, 0.16 inch Inner Dia., 0.38 inch Length	UNIVERSAL	5 Weeks	$25

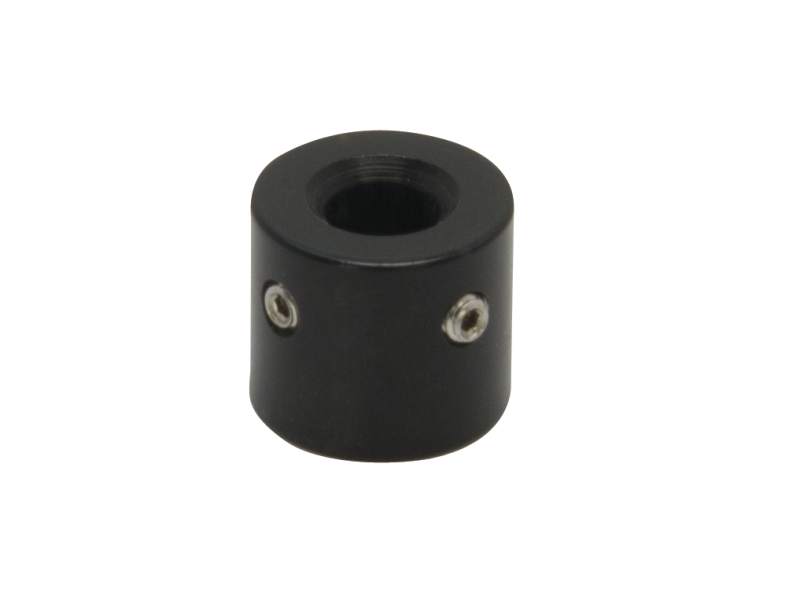

77641Fiber Bundle Ferrule, 11mm, 0.18 inch Inner Dia., 0.38 inch Length	UNIVERSAL	In Stock	$20
77670Ferrule Converter, SMA Termination to 11mm Standard Ferrule	UNIVERSAL	In Stock	$55

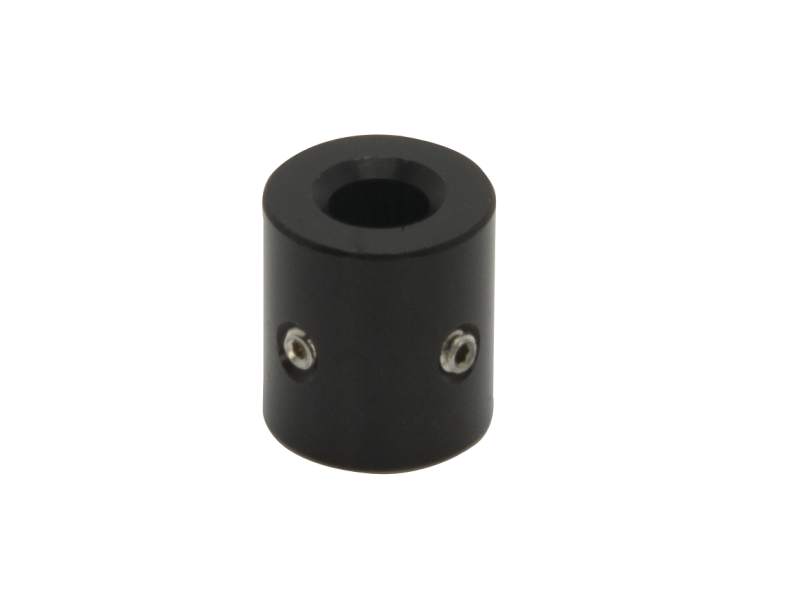

77642Fiber Bundle Ferrule, 11mm, 0.18 inch Inner Dia., 0.48 inch Length	UNIVERSAL	In Stock	$30

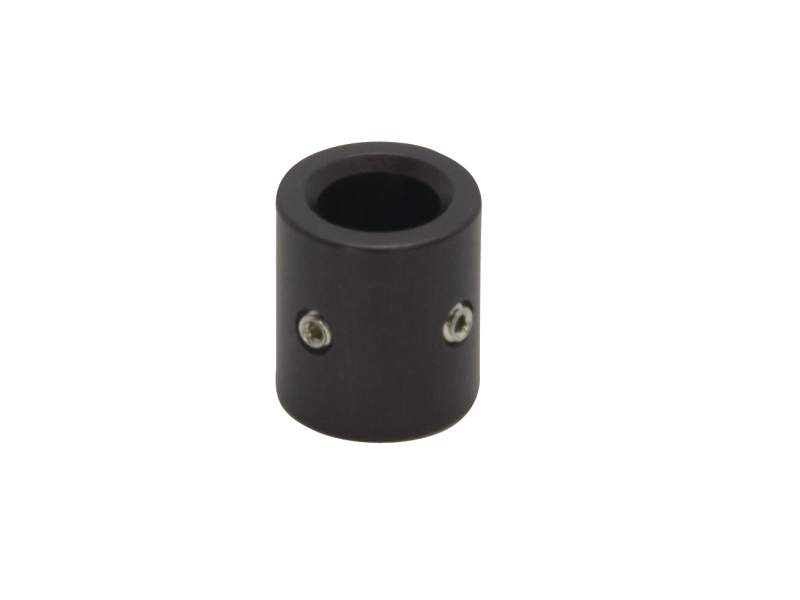

77666Fiber Bundle Ferrule, 11mm, 0.25 inch Inner Dia., 0.48 inch Length	UNIVERSAL	In Stock	$60

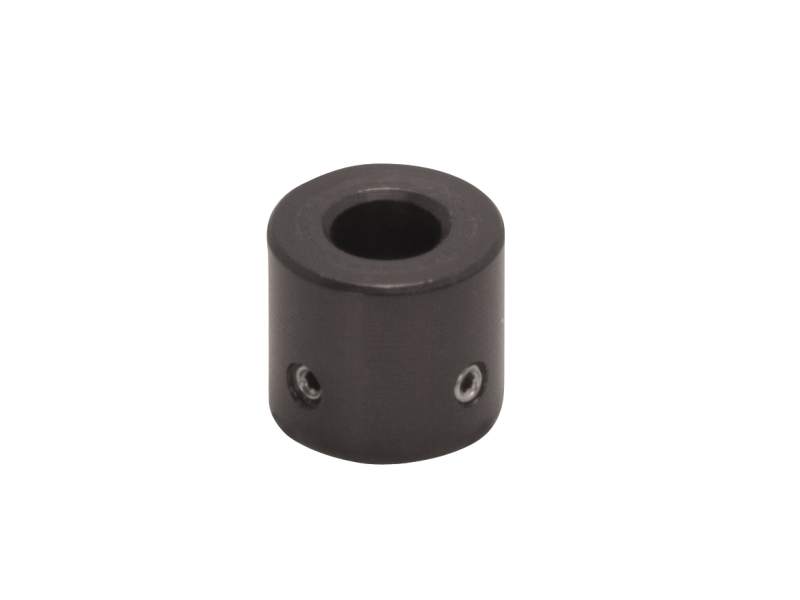

77665Fiber Bundle Ferrule, 11mm, 0.20 inch Inner Dia., 0.38 inch Length	UNIVERSAL	In Stock	$30
77667Fiber Bundle Ferrule, 11mm, 0.31 inch Inner Dia., 0.48 inch Length	UNIVERSAL	In Stock	$35
