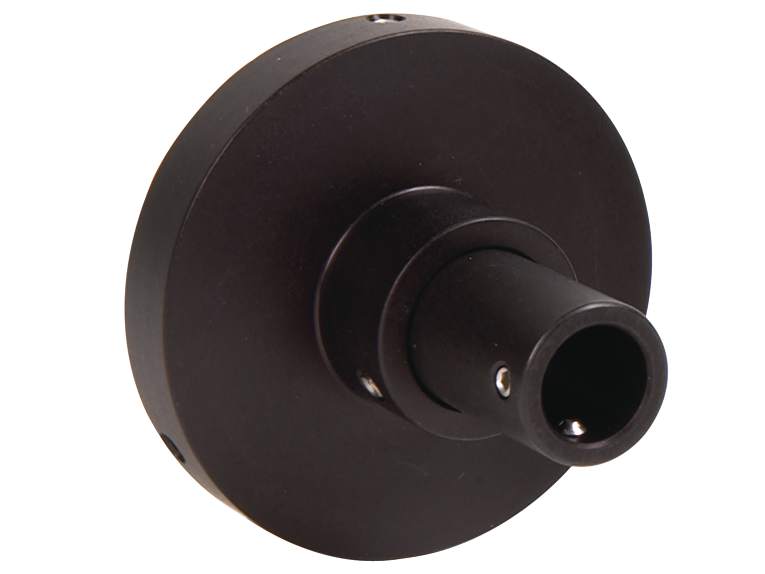

The 77357 Fiber Bundle Flanged Mount holds our circular to circular and circular to rectangular fiber bundles at the input or output of any Oriel® 1.5 Inch Series female flanged component or instrument. It offers 0.5 inch (12.7 mm) adjustment along the optical axis. Once the fiber is positioned properly, it is secured with set screws.
Additional CAD file downloads are not available for this product.
77357 - Drawings
Additional drawings are not available for this product.
77357
