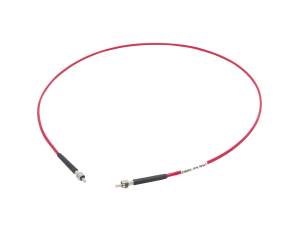

UV to NIR Large Core Optical Fibers

Products
Features
Accessories
Contact Us

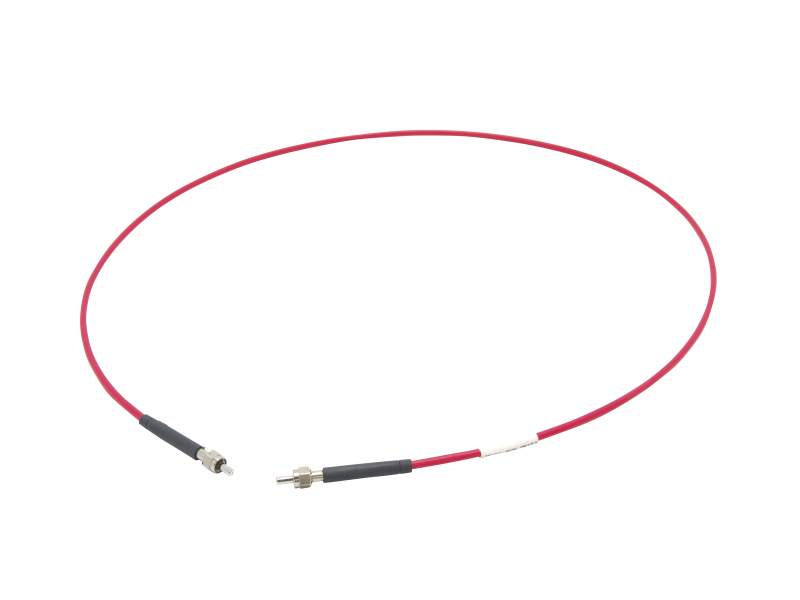

uv-vis large core fiber optic cable model 78253

Overview

These single core optical fibers are an inexpensive and simple solution for light guiding applications, such as transporting light from a source to a sample or from a sample to a spectrometer or other photodetector. Their large core and high transmittance makes these fibers particularly useful for long distance applications.

Convenient, economical solution for simple light guide applications
Useful for long distance light transmission applications
High damage threshold
Two different transmittance ranges available

See All Features

Products

Compare	Model	Compatibility	rankScore	Type	Core Diameter	Numerical Aperture	Transmittance Range	Fiber Length	Availability	Price	Brand
78252 Fiber Optic Cable, UV-VIS, 200 µm Core, 250 µm Clad, 2m Length, SMA $230 In Stock	78252 Fiber Optic Cable, UV-VIS, 200 µm Core, 250 µm Clad, 2m Length, SMA	UNIVERSAL	1.0	UV-VIS Large Core Fiber	200 µm	0.22	250 - 1150 nm	2 m	In Stock	$230	Oriel Instruments
78253 Fiber Optic Cable, UV-VIS, 400 µm Core, 500 µm Clad, 1m Length, SMA $215 In Stock	78253 Fiber Optic Cable, UV-VIS, 400 µm Core, 500 µm Clad, 1m Length, SMA	UNIVERSAL	1.0	UV-VIS Large Core Fiber	400 µm	0.22	250 - 1150 nm	1 m	In Stock	$215	Oriel Instruments
78254 Fiber Optic Cable, UV-VIS, 400 µm Core, 500 µm Clad, 2m Length, SMA $265 1 Week	78254 Fiber Optic Cable, UV-VIS, 400 µm Core, 500 µm Clad, 2m Length, SMA	UNIVERSAL	1.0	UV-VIS Large Core Fiber	400 µm	0.22	250 - 1150 nm	2 m	1 Week	$265	Oriel Instruments
78256 Fiber Optic Cable, VIS-NIR, 200 µm Core, 250 µm Clad, 2m Length, SMA $235 In Stock	78256 Fiber Optic Cable, VIS-NIR, 200 µm Core, 250 µm Clad, 2m Length, SMA	UNIVERSAL	1.0	VIS-NIR Large Core Fiber	200 µm	0.22	400 - 2200 nm	2 m	In Stock	$235	Oriel Instruments
78257 Fiber Optic Cable, VIS-NIR, 400 µm Core, 500 µm Clad, 1m Length, SMA $295 Show	78257 Fiber Optic Cable, VIS-NIR, 400 µm Core, 500 µm Clad, 1m Length, SMA	UNIVERSAL	1.0	VIS-NIR Large Core Fiber	400 µm	0.22	400 - 2200 nm	1 m	Show	$295	Oriel Instruments
78258 Fiber Optic Cable, VIS-NIR, 400 µm Core, 500 µm Clad, 2m Length, SMA $300 Contact Us	78258 Fiber Optic Cable, VIS-NIR, 400 µm Core, 500 µm Clad, 2m Length, SMA	UNIVERSAL	1.0	UV-NIR Large Core Fiber	400 µm	0.22	400 - 2200 nm	2 m	Contact Us	$300	Oriel Instruments
78259 Fiber Optic Cable, VIS-NIR, 600 µm Core, 750 µm Clad, 1m Length, SMA $295 In Stock	78259 Fiber Optic Cable, VIS-NIR, 600 µm Core, 750 µm Clad, 1m Length, SMA	UNIVERSAL	1.0	UV-NIR Large Core Fiber	600 µm	0.22	400 - 2200 nm	1 m	In Stock	$295	Oriel Instruments
78260 Fiber Optic Cable, VIS-NIR, 600 µm Core, 750 µm Clad, 2m Length, SMA $370 Contact Us	78260 Fiber Optic Cable, VIS-NIR, 600 µm Core, 750 µm Clad, 2m Length, SMA	UNIVERSAL	1.0	UV-NIR Large Core Fiber	600 µm	0.22	400 - 2200 nm	2 m	Contact Us	$370	Oriel Instruments
78277 Fiber Optic Cable, UV-VIS, 1000 µm Core, 1250 µm Clad, 1m Length, SMA $360 In Stock	78277 Fiber Optic Cable, UV-VIS, 1000 µm Core, 1250 µm Clad, 1m Length, SMA	UNIVERSAL	1.0	UV-VIS Large Core Fiber	1000 µm	0.22	250 - 1150 nm	1 m	In Stock	$360	Oriel Instruments
78300 Fiber Optic Cable, VIS-NIR, 800 µm Core, 1000 µm Clad, 1m Length, SMA $355 In Stock	78300 Fiber Optic Cable, VIS-NIR, 800 µm Core, 1000 µm Clad, 1m Length, SMA	UNIVERSAL	1.0	UV-NIR Large Core Fiber	800 µm	0.22	400 - 2200 nm	1 m	In Stock	$355	Oriel Instruments
78301 Fiber Optic Cable, VIS-NIR, 800 µm Core, 1000 µm Clad, 2m Length, SMA $575 Contact Us	78301 Fiber Optic Cable, VIS-NIR, 800 µm Core, 1000 µm Clad, 2m Length, SMA	UNIVERSAL	1.0	UV-NIR Large Core Fiber	800 µm	0.22	400 - 2200 nm	2 m	Contact Us	$575	Oriel Instruments
78302 Fiber Optic Cable, VIS-NIR, 1000 µm Core, 1250 µm Clad, 1m Length, SMA $440 In Stock	78302 Fiber Optic Cable, VIS-NIR, 1000 µm Core, 1250 µm Clad, 1m Length, SMA	UNIVERSAL	1.0	UV-NIR Large Core Fiber	1000 µm	0.22	400 - 2200 nm	1 m	In Stock	$440	Oriel Instruments
78303 Fiber Optic Cable, VIS-NIR, 1000 µm Core, 1250 µm Clad, 2m Length, SMA $745 Contact Us	78303 Fiber Optic Cable, VIS-NIR, 1000 µm Core, 1250 µm Clad, 2m Length, SMA	UNIVERSAL	1.0	UV-NIR Large Core Fiber	1000 µm	0.22	400 - 2200 nm	2 m	Contact Us	$745	Oriel Instruments
78367 Fiber Optic Cable, UV-VIS, 600 µm Core, 750 µm Clad, 1m Length, SMA $225 In Stock	78367 Fiber Optic Cable, UV-VIS, 600 µm Core, 750 µm Clad, 1m Length, SMA	UNIVERSAL	1.0	UV-VIS Large Core Fiber	600 µm	0.22	250 - 1150 nm	1 m	In Stock	$225	Oriel Instruments
78368 Fiber Optic Cable, UV-VIS, 600 µm Core, 750 µm Clad, 2m Length, SMA $350 Contact Us	78368 Fiber Optic Cable, UV-VIS, 600 µm Core, 750 µm Clad, 2m Length, SMA	UNIVERSAL	1.0	UV-VIS Large Core Fiber	600 µm	0.22	250 - 1150 nm	2 m	Contact Us	$350	Oriel Instruments

Show All

Features

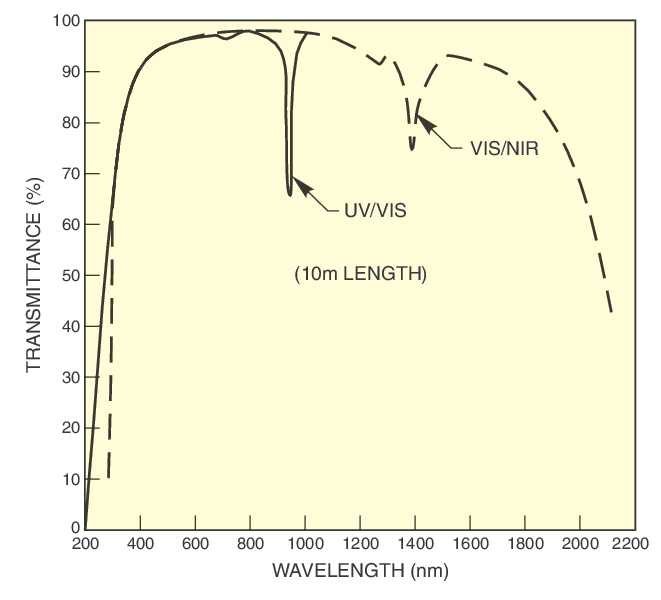

Two Different Transmittance Ranges Available

Two different materials are used in the core construction of these light guides to offer two different transmittance ranges. UV/VIS, or ultraviolet to visible fibers have a useable wavelength range of 250 to 1150 nm. VIS/NIR, or visible to near-infrared fibers are suitable for wavelength transmittance from 400 to 2100 nm.

High Damage Threshold

In addition to high transmittance, these fibers have a high damage threshold to input light. For a clean input surface the damage threshold is 100 kW cm-2 in the NIR or 10 J cm-2 for ≥1 ns pulses, for wavelengths above 360 nm.

Features

Two Different Transmittance Ranges Available

High Damage Threshold

Accessories

Fiber Holders and Mounts

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		70456 Optical Fiber Holder, Single SMA, 1.5 Inch Series Female Flange	UNIVERSAL		5 Weeks	$525
		77848 Optical Fiber Holder, Single SMA, Optical Post Mounted	UNIVERSAL		In Stock	$100

Monochromator Fiber Adapters

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		77863 Optical Fiber Adapter, Monochromator, 11 mm Ferrules, Quick Disconnect	UNIVERSAL		5 Weeks	$510
		77860 Optical Fiber Adapter, Monochromator, 11 mm Ferrules, Set Screws	UNIVERSAL		5 Weeks	$165

Ferrules and Ferrule Converters

Description	Compatibility	Avail.	Price
77641 Fiber Bundle Ferrule, 11mm, 0.18 inch Inner Dia., 0.38 inch Length	UNIVERSAL	In Stock	$19
77640 Fiber Bundle Ferrule, 11mm, 0.16 inch Inner Dia., 0.38 inch Length	UNIVERSAL	5 Weeks	$20
77675 Ferrule Converter, ST Termination to 11mm Standard Ferrule	UNIVERSAL	In Stock	$155
77642 Fiber Bundle Ferrule, 11mm, 0.18 inch Inner Dia., 0.48 inch Length	UNIVERSAL	In Stock	$26
77670 Ferrule Converter, SMA Termination to 11mm Standard Ferrule	UNIVERSAL	In Stock	$50
77665 Fiber Bundle Ferrule, 11mm, 0.20 inch Inner Dia., 0.38 inch Length	UNIVERSAL	In Stock	$29
77667 Fiber Bundle Ferrule, 11mm, 0.31 inch Inner Dia., 0.48 inch Length	UNIVERSAL	1 Week	$30
77663 Fiber Bundle Ferrule, 11mm, 0.16 inch Inner Dia., 0.48 inch Length	UNIVERSAL	Contact Us	$21
77666 Fiber Bundle Ferrule, 11mm, 0.25 inch Inner Dia., 0.48 inch Length	UNIVERSAL	In Stock	$55
