Ferrule Converter, SMA Termination to 11mm Standard Ferrule
Ferrule Converter, SMA Termination to 11mm Standard Ferrule
Model: 77670
In Stock
Product Series Overview

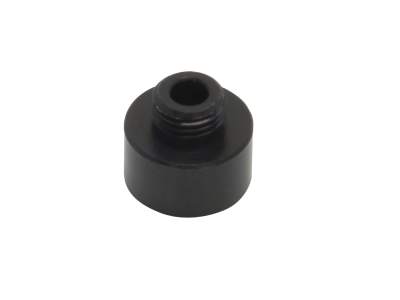

Ferrules for Oriel Fiber BundlesThe 77670 SMA Fiber Bundle Ferrule is an aluminum cylinder with an 11 mm outside diameter with an SMA termination. This lets you use any SMA terminated single fiber with our full range of fiber bundle holders and positioners. 11 mm fiber ferrules give all our bundles a common external diameter of 11 mm (0.44 inch). This allows the same holders and positioners to be used for all bundles simplifying coupling and positioning.
Resources & Downloads
2D Product Drawings
BPT-pg8-24b(492.5 kB, PDF)
