Coupling Ring, Light Source, 1.5 Inch, Double Female, Set Screw

Flange Couplers & Adapters

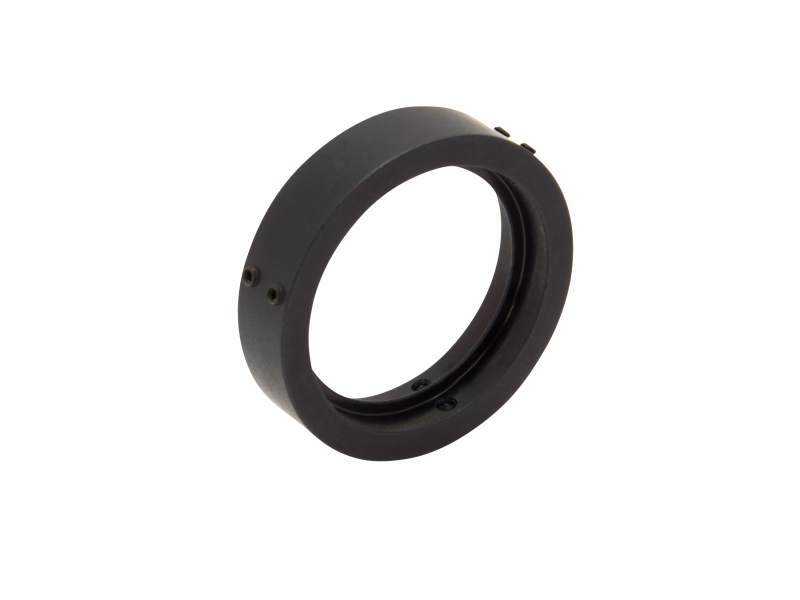

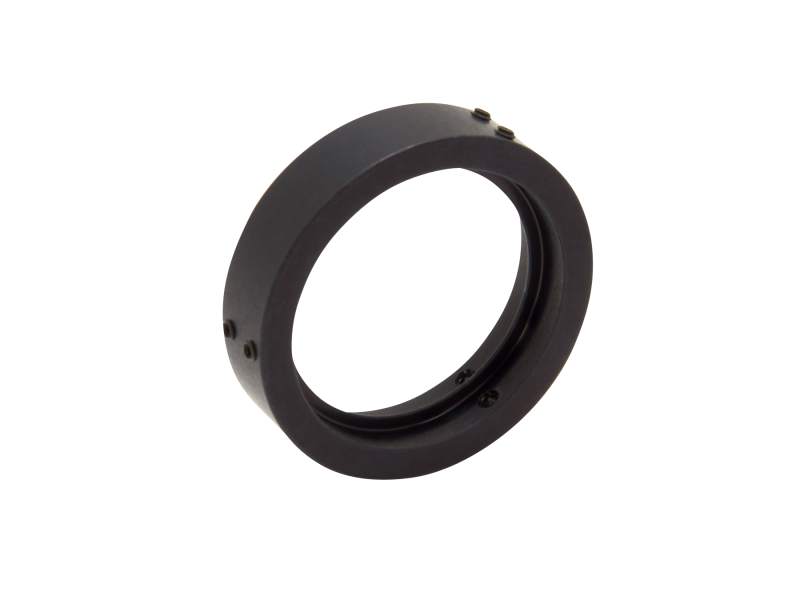

The 77829 Light Source Coupling Ring has 1.5 Inch Series female connections on both ends. This set screw type uses three set screws to hold both flanged components together. The set screws are 6-32 cone point type. They use a 1/16 inch hex wrench.

Specifications

Technical Specs

Type
Double Female Adaptor
Flange Series Size
1.5 Inch
Flange Type
Set Screw

Type
Double Female Adaptor
Flange Series Size
1.5 Inch
Flange Type
Set Screw

Resources & Downloads

2D Product Drawings

BPT-pg4-107a(506.1 kB, PDF)
LS-220Aa(688 kB, PDF)

Related Products

Frequently Purchased Together

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price

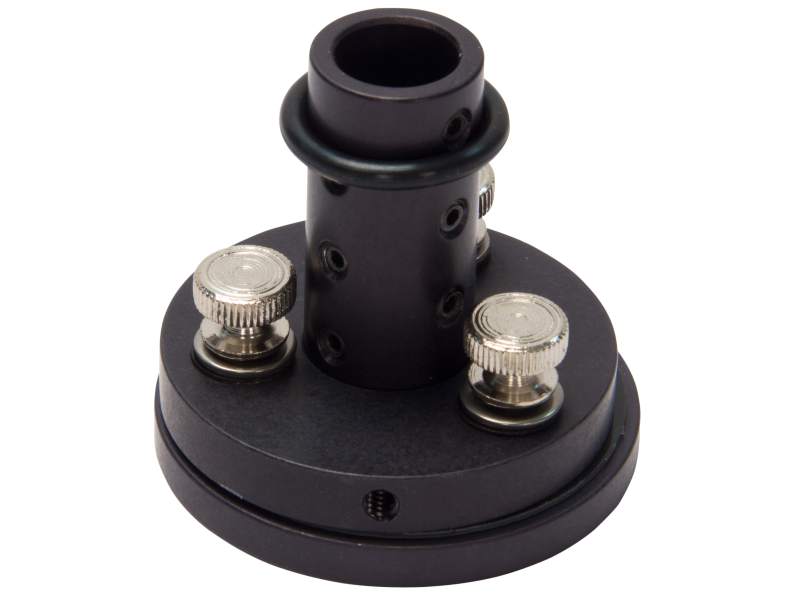

		77802Fiber Bundle Holder, Circular Bundle to 1.5 Inch Male Flange, XYZ Adjust	UNIVERSAL		Contact Us	$355

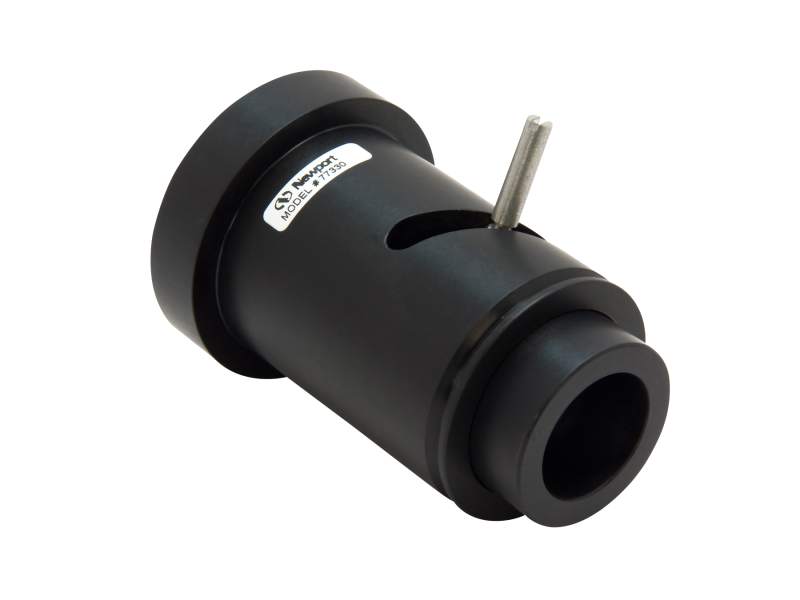

		77330Focusing Lens Assembly, Req. 1 inch Dia. Lens, 1.5 inch Series Flanges	UNIVERSAL		4 Weeks	$255

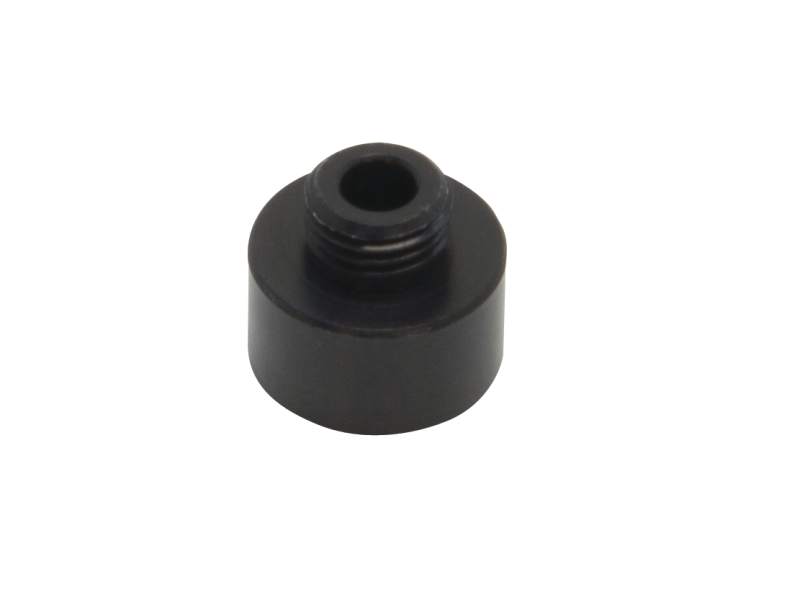

		77670Ferrule Converter, SMA Termination to 11mm Standard Ferrule	UNIVERSAL		In Stock	$55
		SBX020Bi-Convex Lens, Fused Silica, 25.4 mm Diameter, 32.0 mm EFL, Uncoated	UNIVERSAL		In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$202
		SPH-UDAPTPort Flange Adapter, 1.0 in. Port, Oriel Male 1.5 inch Flange, Lens Tube, 819C/D	UNIVERSAL		In Stock	$180
		CBL-CSMS-FWCable, Filter Wheel to CS130B, CS260B and MS260i Spectroscopy Instruments	UNIVERSAL		In Stock	$85
		LT10-05Lens Tube, 1 inch LT Series, 1/2 inch length	UNIVERSAL		In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$20
		USFW-100Universal Filter Wheel, Flange Mount, Motorized	UNIVERSAL		In Stock	$1,790
