SPH-UDAPT Port Flange Adapter

Port Flange Adapter, 1.0 in. Port, Oriel Male 1.5 inch Flange, Lens Tube, 819C/D

Model: SPH-UDAPT

$178

In Stock

Compare

Add to List

Product Series Overview

Lens Tube Adapters for Integrating Spheres

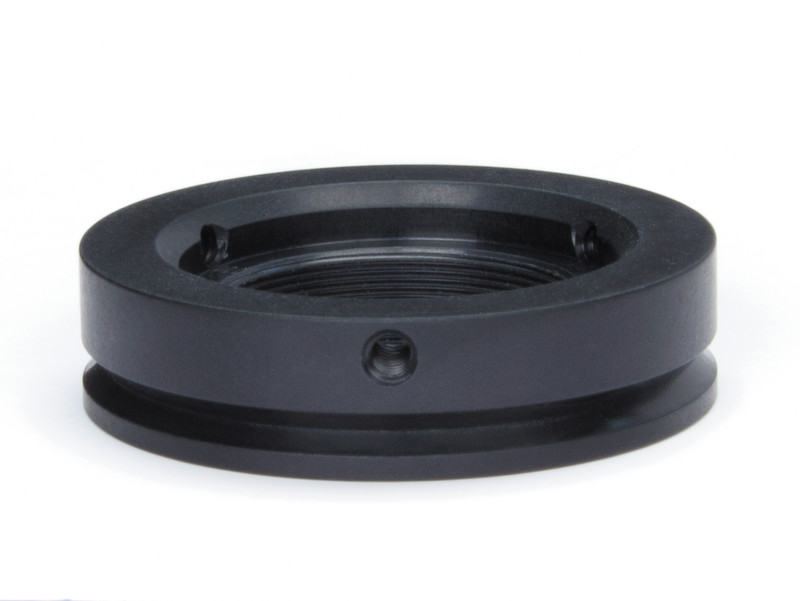

The SPH-UDAPT Adapter allows the 1 inch port of the 819C/D series integrating spheres to be connected to Oriel's standard 1.5 inch female flange and the 1 inch Lens Tube components. The outside of the adapter is Oriel's male flange adapter, while the inside is also threaded with the standard 1.035-40 thread, to be compatible with the Lens Tube mounting systems. The set screw size is 6-32 X 3/16 inch.

Specifications

Technical Specs

Type

Port Flange Adapter
Thread Type

1.035-40
Detector Type

819C & 819D Series
Port Size

1.0 in.

Flange Type

1.5 inch Series - Male
Material

Black anodized aluminum

Type

Port Flange Adapter
Thread Type

1.035-40
Detector Type

819C & 819D Series
Port Size

1.0 in.

Flange Type

1.5 inch Series - Male
Material

Black anodized aluminum

Resources & Downloads

Other

SPH-UDAPT RoHS Certificate (279.2 kB, PDF)

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

SPH-UDAPT.pdf (335.1 kB, PDF)

Literature

DS-111501 Intergrating Sphere Acces-2.pdf (1.2 MB, PDF)

Related Products

Similar

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		884-UDAPT Lens Tube Adapter, 818 & 918D Series Sensors	UNIVERSAL		In Stock	$68
		819M-CM-1.0 C-Mount Adapter, Female, 1.0 in. Port, 819C and 819D Spheres	UNIVERSAL		In Stock	$298

Compatible

Description	Compatibility	Avail.	Price

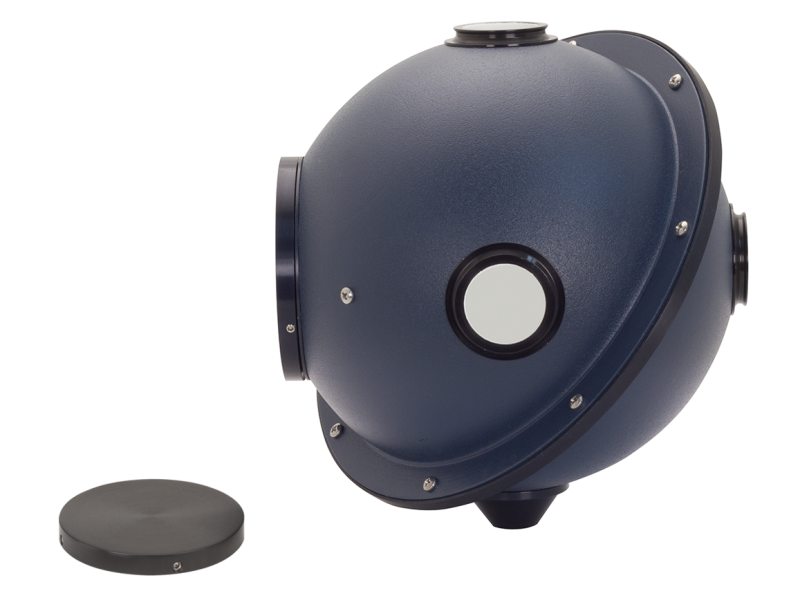

819C-GL-6 Integrating Sphere, 4-Port, 6 in. Diameter, Diffuse Gold Coating	UNIVERSAL	In Stock	$4,507

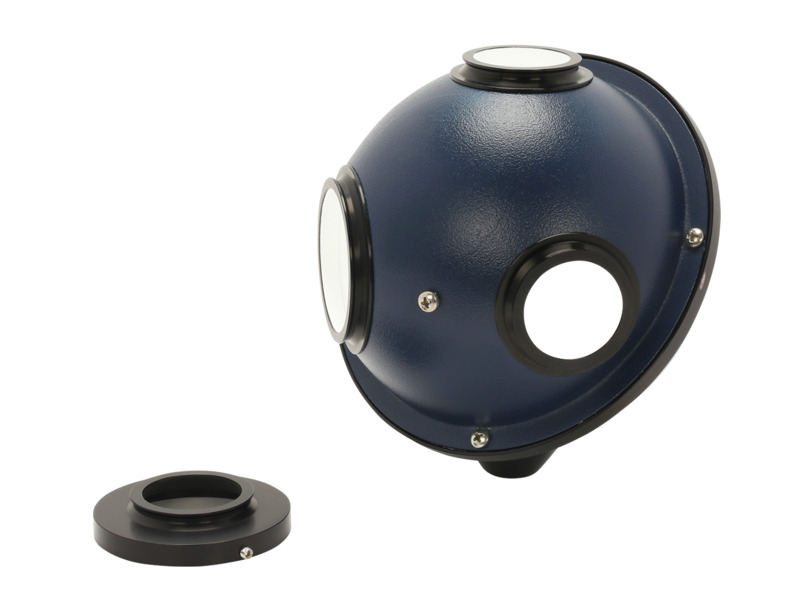

819D-SF-4 Integrating Sphere, 3-Port, 4 in. Diameter, Barium Sulfate, Port Frame Reducer Included	UNIVERSAL	In Stock	$2,049
819C-SF-6 Integrating Sphere, 4-Port, 6 in. Diameter, Barium Sulfate, 2.5 in. Port Plug Included	UNIVERSAL	In Stock	$2,258
