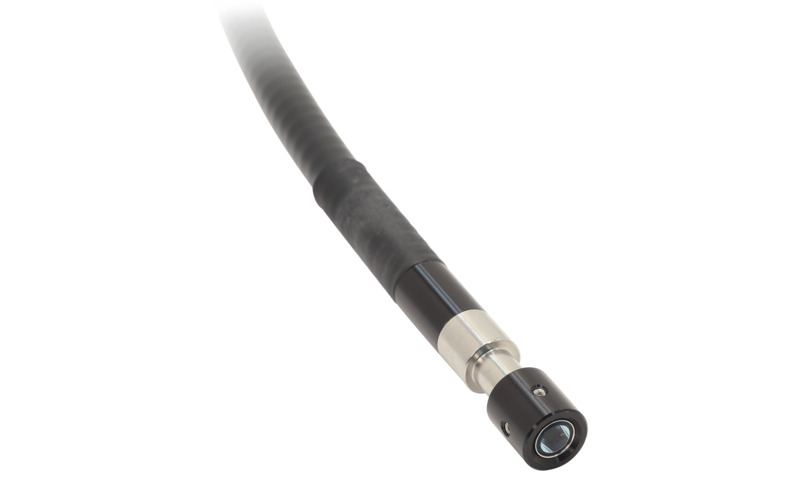

Liquid Light Guide, 39.4 in., 300-650 nm, 0.12 in. Core, 0.59 NA

Model: 77554

Liquid Light Guide, 39.4 in., 300-650 nm, 0.12 in. Core, 0.59 NA

Model: 77554

Technical Specs

  • Type
    Liquid Light Guide
  • Core Diameter
    3.0 mm
  • Numerical Aperture
    0.59
  • Transmittance Range
    300 - 650 nm
  • Fiber Length
    1 m
  • Fiber Connector
    11 mm Ferrule
  • Acceptance Cone, 2a
    72 °
  • F/#
    0.85
  • Fiber Material
    Liquid
  • Minimum Bend Radius
    40 mm
