Compare Model Drawings, CAD & Specs Availability Price
Spectral Calibration Lamp, Argon, 10 mA, 500 Hrs Rated Life
$253
In Stock
6030 Spectral Calibration Lamp, Argon, 10 mA, 500 Hrs Rated Life
In Stock
$253
Spectral Calibration Lamp, Krypton, 10 ±4 mA, 1000 Hrs Rated Life
$255
In Stock
6031 Spectral Calibration Lamp, Krypton, 10 ±4 mA, 1000 Hrs Rated Life
In Stock
$255
Spectral Calibration Lamp, Neon, 10 ±4 mA, 250 Hrs Rated Life
$278
In Stock
6032 Spectral Calibration Lamp, Neon, 10 ±4 mA, 250 Hrs Rated Life
In Stock
$278

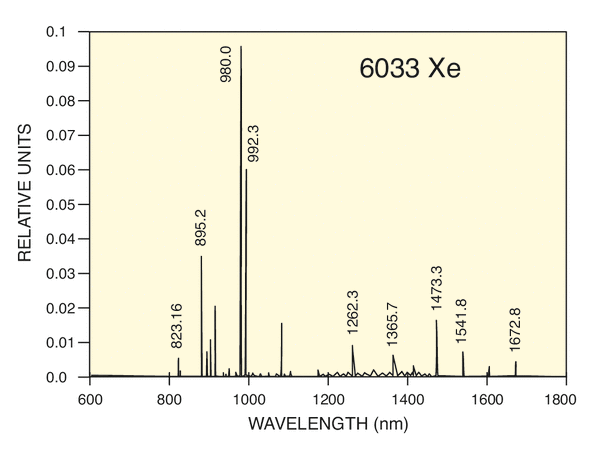

Spectral Calibration Lamp, Xenon, 6 ±3 mA, 250 Hrs Rated Life
$301
In Stock
6033 Spectral Calibration Lamp, Xenon, 6 ±3 mA, 250 Hrs Rated Life
In Stock
$301
Spectral Calibration Lamp, Hg (Ne), 18, ±5 mA, 500 Hrs Rated Life
$269
In Stock
6034 Spectral Calibration Lamp, Hg (Ne), 18, ±5 mA, 500 Hrs Rated Life
In Stock
$269

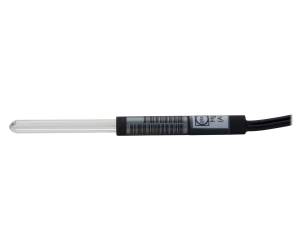

Spectral Calibration Lamp, Hg (Ar), 18±5 mA, 5000 Hrs Rated Life
$232
In Stock
6035 Spectral Calibration Lamp, Hg (Ar), 18±5 mA, 5000 Hrs Rated Life
In Stock
$232
Pinhole Shield, 0.040 inch Diameter Aperture
$55
In Stock
6038 Pinhole Shield, 0.040 inch Diameter Aperture
In Stock
$55
Small Aperture Shield, 0.313 x 0.375 inch Aperture
$58
In Stock
6039 Small Aperture Shield, 0.313 x 0.375 inch Aperture
In Stock
$58
Large Aperture Shield, 0.188 x 1.5 inch Aperture
$53
In Stock
6040 Large Aperture Shield, 0.188 x 1.5 inch Aperture
In Stock
$53
Lamp Power Supply, AC, Xenon, 6 mA, 110 VAC, 60 Hz
$278
2 Weeks
6043 Lamp Power Supply, AC, Xenon, 6 mA, 110 VAC, 60 Hz
2 Weeks
$278
Lamp Power Supply, AC, Xenon, 6 mA, 220 VAC, 50 Hz
$291
In Stock
6044 Lamp Power Supply, AC, Xenon, 6 mA, 220 VAC, 50 Hz
In Stock
$291
Lamp Power Supply, AC, Neon, Argon or Krypton, 10 mA, 110 VAC, 60 Hz
$297
2 Weeks
6045 Lamp Power Supply, AC, Neon, Argon or Krypton, 10 mA, 110 VAC, 60 Hz
2 Weeks
$297
Lamp Power Supply, AC, Neon, Argon or Krypton, 10 mA, 220 VAC, 50 Hz
$278
In Stock
6046 Lamp Power Supply, AC, Neon, Argon or Krypton, 10 mA, 220 VAC, 50 Hz
In Stock
$278
Lamp Power Supply, AC, Hg(Ar) or Hg(Ne), 18 mA, 110 VAC, 60 Hz
$382
In Stock
6047 Lamp Power Supply, AC, Hg(Ar) or Hg(Ne), 18 mA, 110 VAC, 60 Hz
In Stock
$382
Lamp Power Supply, AC, Hg(Ar) or Hg(Ne), 18 mA, 220 VAC, 50 Hz
$261
In Stock
6048 Lamp Power Supply, AC, Hg(Ar) or Hg(Ne), 18 mA, 220 VAC, 50 Hz
In Stock
$261
Safety Filter, Pencil Style Calibration Lamps
$190
In Stock
6057 Safety Filter, Pencil Style Calibration Lamps
In Stock
$190
Fiber Optic Accessory, SMA Adapter, Rod not Included
$154
In Stock
6058NS Fiber Optic Accessory, SMA Adapter, Rod not Included
In Stock
$154
Lamp Holder, 2 inch Optical Rod Included
$84
In Stock
63670 Lamp Holder, 2 inch Optical Rod Included
In Stock
$84
HgAr Calibration Set, 220 VAC
$662
In Stock
78812 HgAr Calibration Set, 220 VAC
In Stock
$662
Spectral Calibration Line Lamp Mount, 1.5-Inch Series Flange
$213
In Stock
78819 Spectral Calibration Line Lamp Mount, 1.5-Inch Series Flange
In Stock
$213
HgAr Calibration Set, 115 VAC
$702
78822 HgAr Calibration Set, 115 VAC $702

Features

AC Power Supplies Available

Oriel Instruments offers speciality AC power supplies for the pencil style calibration lamps. These power supplies are required for proper operation of the calilbration lamps. AC power supplies have the benefit of being CE compliant and prolonging lamp life. These power supplies are capable of operating up to two different element calibration lamps with small variations in output intensity.

Complete Spectral Calibration Set Offered

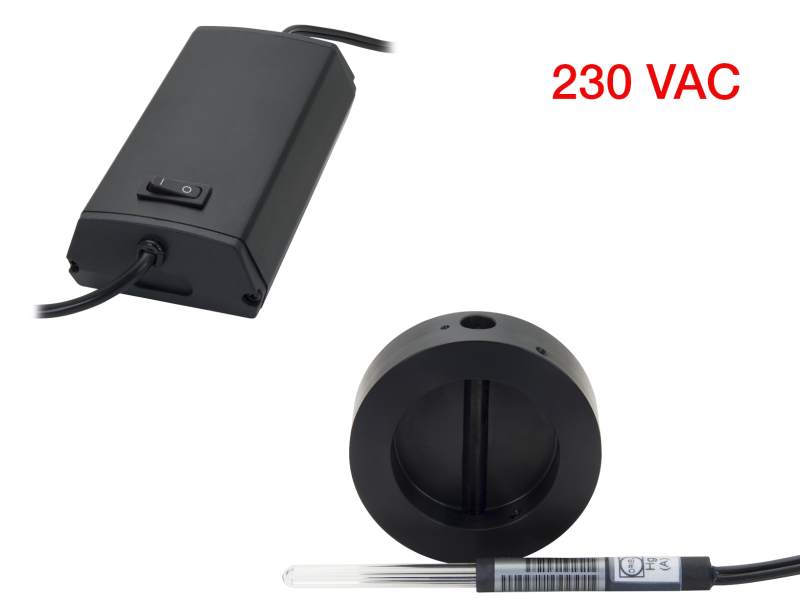

For users seeking a complete calibration set for their Oriel monochromator or spectrograph, the 78812 and 78822 Calibration Sets are available. When performing calibration, a light source with at least two spectral lines within the wavelength region of interest is required for proper instrument calibration. Calibration is also required when using the 78855 LineSpec CCD detector and its included Oriel LineSpec software. Each calibration set includes:6035 HgAr Pencil Calibration Lamp6047 (included with 78822 ) or 6048 (included with 78812 ) Power Supply for 115 or 230 VAC operation78819 Spectral Calibration Lamp Mount

Three Filter Types Offered

When only certain portions of the lamp's output are required, three different filters are offered to block out the undesired spectral lines. Like the aperture shields, these filters simply slide over the lamp.

  • 6041 Short Wave Filter: Blocks visible wavelengths
  • 6042 Long Wavelength Conversion Filter: Attenuates the 253.7 nm Hg emission line and allows transmission from 300-400 nm
  • 6057 Glass Safety Filter: Protects the user from the lamp's intense UV spectral lines, completely blocks the 253.7 nm Hg line and attenuates the 312.6 nm line

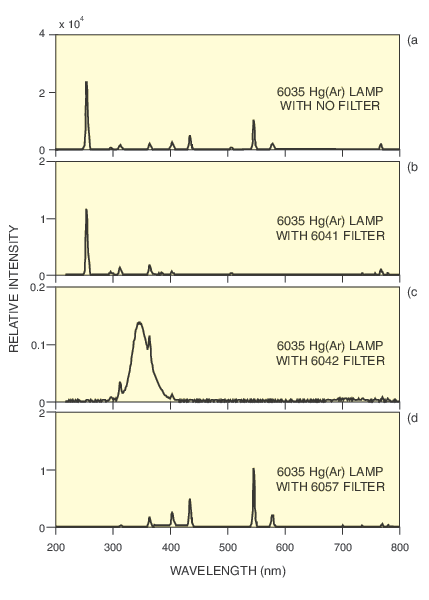

Spectral output of the 6035 Hg(Ar) lamp with different filters used

Fiber Optic Accessory

The 6058NS Fiber Optic Accessory holds the face of an SMA terminated fiber close to the lamp to collect a portion of the light output for spectral calibration purposes. The optical rod is not included.

Rod Mounted Lamp Holder

The 63670 Holder is suitable for holding the pencil style calibration lamp for open air configurations. The SP-2 2.0 inch optical rod in the picture above is included.

Spectral Calibration Lamp Mount

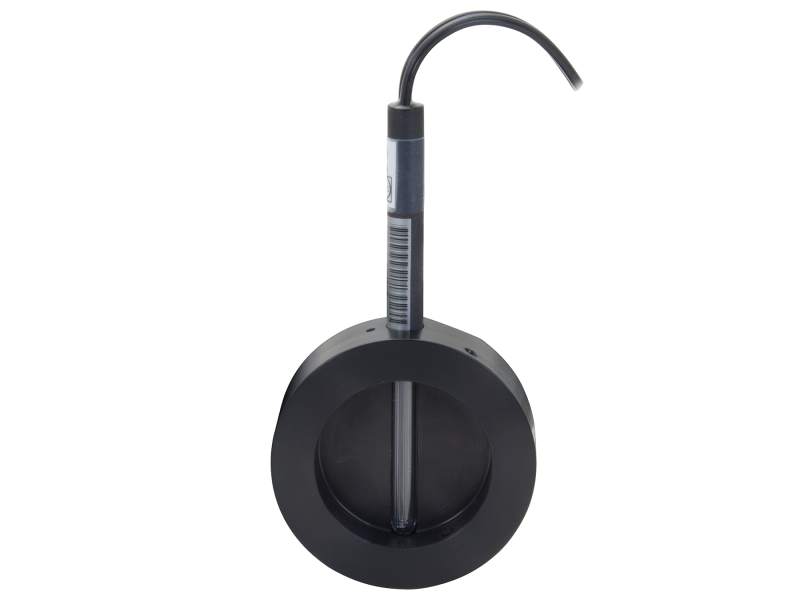

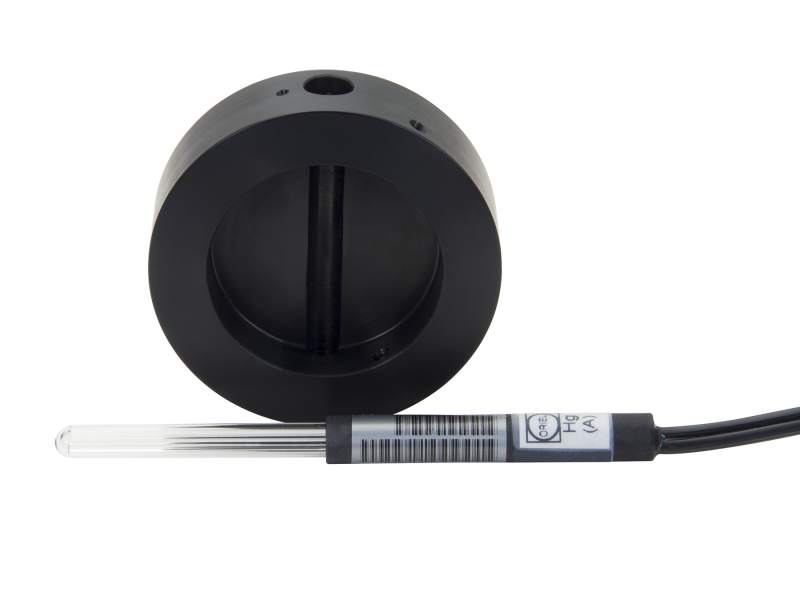

The model 78819 spectral calibration lamp mount holds a calibration lamp securely at the input slit of an Oriel Monochromator or Spectrograph. Compatible with Oriel's 1.5 inch size flange series, the 78819 provides close coupling for excellent throughput with minimum light leakage.

Three Aperture Shields Available

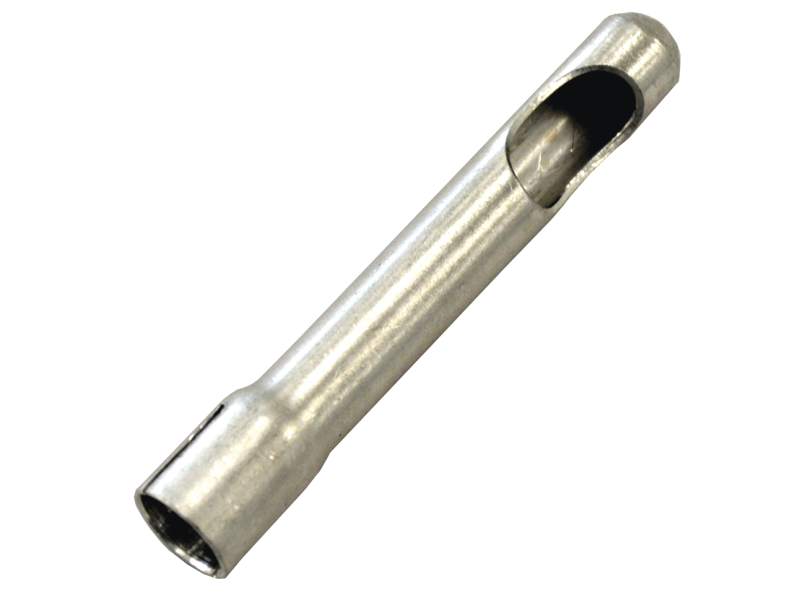

When the radiation area of the lamp must be limited, Oriel offers three aperture. These aperture shields simply slide over the pencil calibration lamp and limit the lamp's output with the following aperture dimensions:

  • 6038 Pinhole Shield: 0.040 inch (1 mm) diameter
  • 6039 Small Aperture Shield: 0.313 x 0.375 inches
  • 6040 Large Aperture Shield: 0.188 x 1.50 inches

Pencil Style Calibration Lamp Safety

Pencil style calibration lamps may emit dangerous UV radiation depending on their source type. Ensure that only authorized personnel are in the vicinty of the source, and that they are wearing the necessary safety equipment such as UV protective eyewear, clothing, and gloves.
