MS125 Grating, Holographic, 1800 lines/mm, 560 nm blaze, 320-670 nm range
MS125 Grating, Holographic, 1800 lines/mm, 560 nm blaze, 320-670 nm range
Model: 77421
In Stock
Product Series Overview

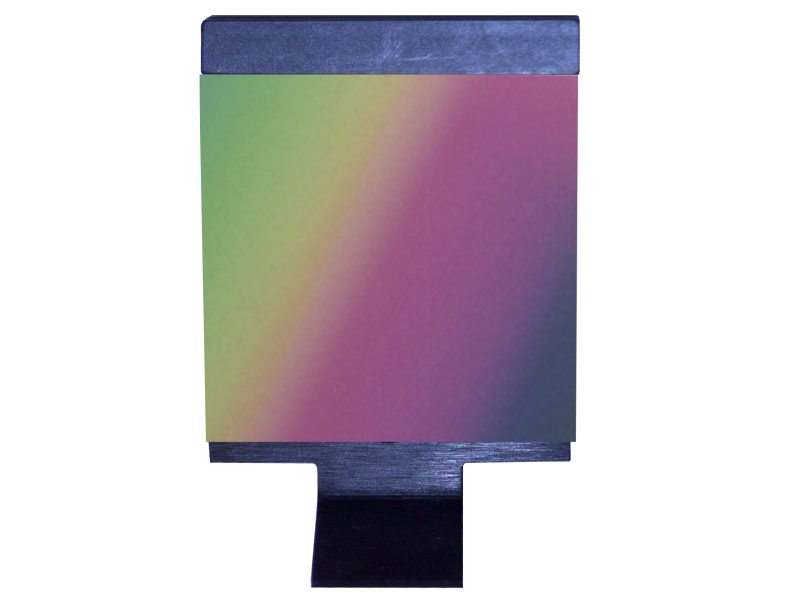

Diffraction Gratings for MS125 SpectrographThe 77421 Grating Assembly is designed for installation into the Oriel® MS125 Spectrograph. This 30 x 30 mm grating comes pre-aligned in its own frame, allowing it to precisely fit inside the instrument. The grating efficiency exceeds 20% over its entire operating range, with a peak efficiency exceeding 50% at its blaze wavelength.
The frame has a tab that allows the grating to be inserted or replaced inside the spectrograph without touching its surface. Each grating comes with a protective cover and is labeled with the model number, making interchangeability and storage simple. Note that the instrument will require recalibration after replacing the grating.
Specifications
- TypeHolographic
- Grooves per mm1800
- Blaze Wavelength560 nm
- Primary Wavelength Region320 to 670 nm
- Peak Efficiency54%
- Resolution0.14 nm
- Multichannel Array Bandpass109 nm
