Compare Model Drawings, CAD & Specs Motorized Axes Micrometer Axes Travel Range Platform Size Thread Type Availability Price
$825
In Stock
X 25.4 mm 63.5 x 63.5 mm 8-32 and 1/4-20
In Stock
$849
In Stock
X 25.4 mm 63.5 x 63.5 mm M4 and M6
In Stock
$1,133
5 Weeks
Y X 25.4 mm 63.5 x 63.5 mm 8-32 and 1/4-20
5 Weeks
$1,133
5 Weeks
Y X 25.4 mm 63.5 x 63.5 mm M4 and M6
5 Weeks
$1,133
5 Weeks
X Y 25.4 mm 63.5 x 63.5 mm 8-32 and 1/4-20
5 Weeks
$1,133
5 Weeks
X Y 25.4 mm 63.5 x 63.5 mm M4 and M6
5 Weeks
$1,592
In Stock
X, Y 25.4 mm 63.5 x 63.5 mm 8-32 and 1/4-20
In Stock
$1,610
5 Weeks
X, Y 25.4 mm 63.5 x 63.5 mm M4 and M6
5 Weeks
$1,597
5 Weeks
Z X, Y 25.4 mm 63.5 x 63.5 mm 8-32 and 1/4-20
5 Weeks
$1,597
In Stock
Z X, Y 25.4 mm 63.5 x 63.5 mm M4 and M6
In Stock
$1,629
In Stock
Y X, Z 25.4 mm 63.5 x 63.5 mm 8-32 and 1/4-20
In Stock
$1,597
5 Weeks
Y X, Z 25.4 mm 63.5 x 63.5 mm M4 and M6
5 Weeks
$2,066
In Stock
Y, Z X 25.4 mm 63.5 x 63.5 mm 8-32 and 1/4-20
In Stock
$2,110
5 Weeks
Y, Z X 25.4 mm 63.5 x 63.5 mm M4 and M6
5 Weeks
$1,597
5 Weeks
X Y, Z 25.4 mm 63.5 x 63.5 mm 8-32 and 1/4-20
5 Weeks
$1,597
5 Weeks
X Y, Z 25.4 mm 63.5 x 63.5 mm M4 and M6
5 Weeks
$2,066
5 Weeks
X, Z Y 25.4 mm 63.5 x 63.5 mm 8-32 and 1/4-20
5 Weeks
$2,066
5 Weeks
X, Z Y 25.4 mm 63.5 x 63.5 mm M4 and M6
5 Weeks
$2,066
5 Weeks
X, Y Z 25.4 mm 63.5 x 63.5 mm 8-32 and 1/4-20
5 Weeks
$2,066
5 Weeks
X, Y Z 25.4 mm 63.5 x 63.5 mm M4 and M6
5 Weeks
$2,667
In Stock
X, Y, Z 25.4 mm 63.5 x 63.5 mm 8-32 and 1/4-20
In Stock
$2,667
In Stock
X, Y, Z 25.4 mm 63.5 x 63.5 mm M4 and M6
In Stock
$849
In Stock
X 12.7 mm 39.4 x 39.4 mm 8-32 and 1/4-20
In Stock
$849
X 12.7 mm 39.4 x 39.4 mm M4 and M6
$1,133
5 Weeks
Y X 12.7 mm 39.4 x 39.4 mm 8-32 and 1/4-20
5 Weeks
$1,133
5 Weeks
Y X 12.7 mm 39.4 x 39.4 mm M4 and M6
5 Weeks
$1,133
5 Weeks
X Y 12.7 mm 39.4 x 39.4 mm 8-32 and 1/4-20
5 Weeks
$1,133
5 Weeks
X Y 12.7 mm 39.4 x 39.4 mm M4 and M6
5 Weeks
$1,576
In Stock
X, Y 12.7 mm 39.4 x 39.4 mm 8-32 and 1/4-20
In Stock
$1,576
5 Weeks
X, Y 12.7 mm 39.4 x 39.4 mm M4 and M6
5 Weeks
$1,597
5 Weeks
Z X, Y 12.7 mm 39.4 x 39.4 mm 8-32 and 1/4-20
5 Weeks
$1,597
5 Weeks
Z X, Y 12.7 mm 39.4 x 39.4 mm M4 and M6
5 Weeks
$1,597
5 Weeks
Y X, Z 12.7 mm 39.4 x 39.4 mm 8-32 and 1/4-20
5 Weeks
$1,597
5 Weeks
Y X, Z 12.7 mm 39.4 x 39.4 mm M4 and M6
5 Weeks
$2,066
5 Weeks
Y, Z X 12.7 mm 39.4 x 39.4 mm 8-32 and 1/4-20
5 Weeks
$2,066
5 Weeks
Y, Z X 12.7 mm 39.4 x 39.4 mm M4 and M6
5 Weeks
$1,597
5 Weeks
X Y, Z 12.7 mm 39.4 x 39.4 mm 8-32 and 1/4-20
5 Weeks
$1,597
5 Weeks
X Y, Z 12.7 mm 39.4 x 39.4 mm M4 and M6
5 Weeks
$2,025
5 Weeks
X, Z Y 12.7 mm 39.4 x 39.4 mm 8-32 and 1/4-20
5 Weeks
$2,025
5 Weeks
X, Z Y 12.7 mm 39.4 x 39.4 mm M4 and M6
5 Weeks
$2,066
5 Weeks
X, Y Z 12.7 mm 39.4 x 39.4 mm 8-32 and 1/4-20
5 Weeks
$2,066
5 Weeks
X, Y Z 12.7 mm 39.4 x 39.4 mm M4 and M6
5 Weeks
$3,192
In Stock
X, Y, Z 12.7 mm 39.4 x 39.4 mm 8-32 and 1/4-20
In Stock
$2,667
5 Weeks
X, Y, Z 12.7 mm 39.4 x 39.4 mm M4 and M6
5 Weeks

Specifications

  • Minimum Incremental Motion
    <30 nm
  • Material
    Aluminum
  • Bearings
    Ball Bearings
  • Cable Length
    2.1 m
  • Connector Type
    4-Pin
  • Operating Temperature
    10-40 °C

Features

Flexible, Adaptable, and Modular

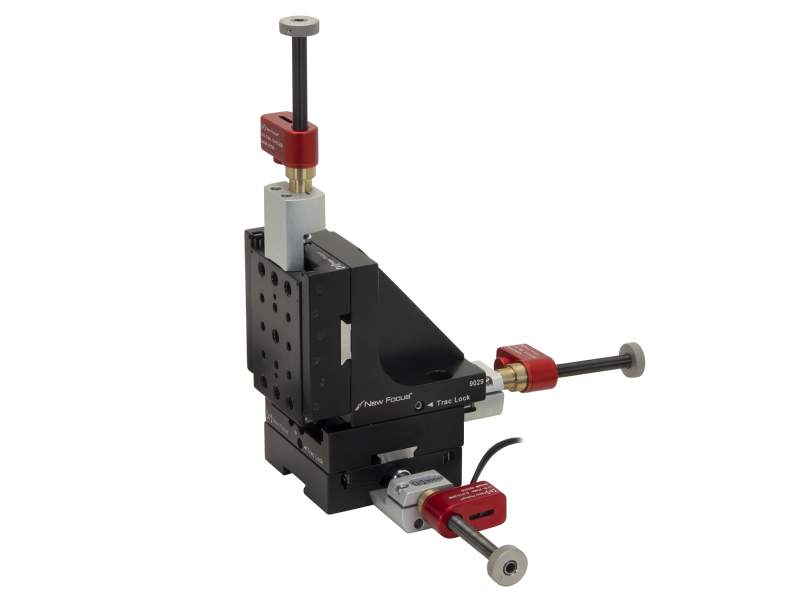

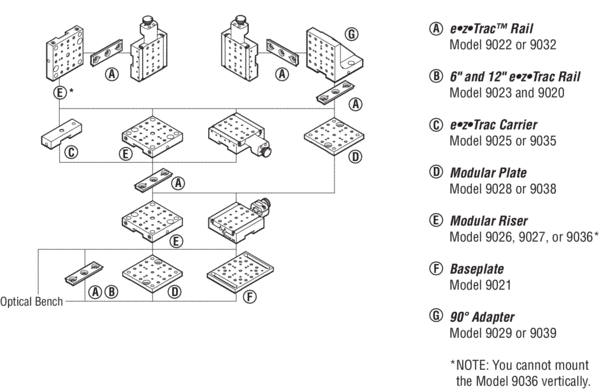

The Triple-Divide linear stages feature our e•z•Trac system. With the e•z•Trac system, you can mount stages to each other, mount accessories to the stage, and mount stages to the optical table. Precision holes drilled into the track and coordinated holes in the stages ensure orthogonality to better than ±1 mrad for every configuration. They also allow for quick coarse positioning perpendicular to the stage’s fine-positioning axis.

< 30 nm Resolution

Our Picomotor actuators have a step size of < 30 nm, allowing for very small, controlled movements of the gothic-arch bearing linear stage.

Choose Which Axis You Want Motorized

Our gothic arch bearing stages can be configured with Picomotor actuators or manual micrometer actuators on each axis as required for your specific application.

Easy-to-Use, Flexible Controllers and Drivers

Our Open-Loop Picomotor controllers and drivers are modular. You can daisy-chain up to 31 drivers together with four channels each, so you can have a network of up to 124 standard Picomotor actuators. You have two interface options with the controller system: hand pad or computer, both providing plug-and-play use. Alternatively, you may choose to use our TTL/Analog Picomotor driver.

Aluminum Ball-Bearing Design

The stages themselves are based on a ball-bearing design and made of anodized aluminum with hardened and polished stainless-steel races. They provide smooth and accurate positioning over the full travel range with 0.5-µm resolution and a straight-line accuracy of 2.5 µm.

Set-and-Forget Long-Term Stability

The Picomotor actuator moves when voltage is applied to the piezo, changing its length and in turn moving the jaws which turn the screw. When no power is applied, the actuator does not move. You can feel confident that your linear translation stage will stay put, even when you power down your system.
